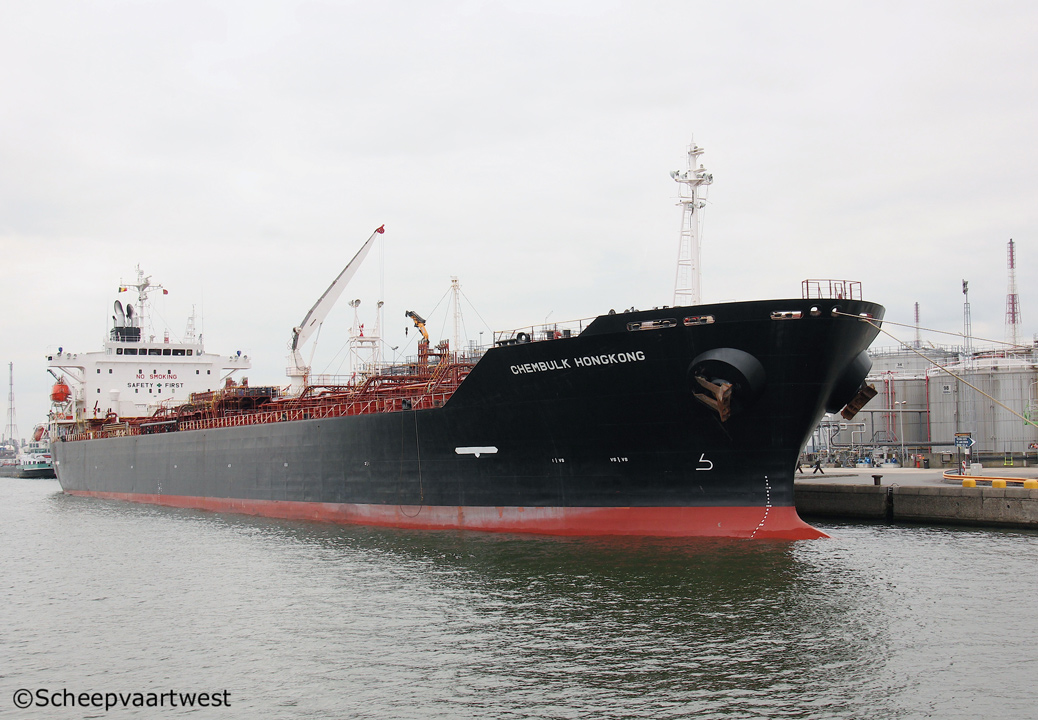

Chembulk Hongkong 01

Antwerpen 28 August 2018

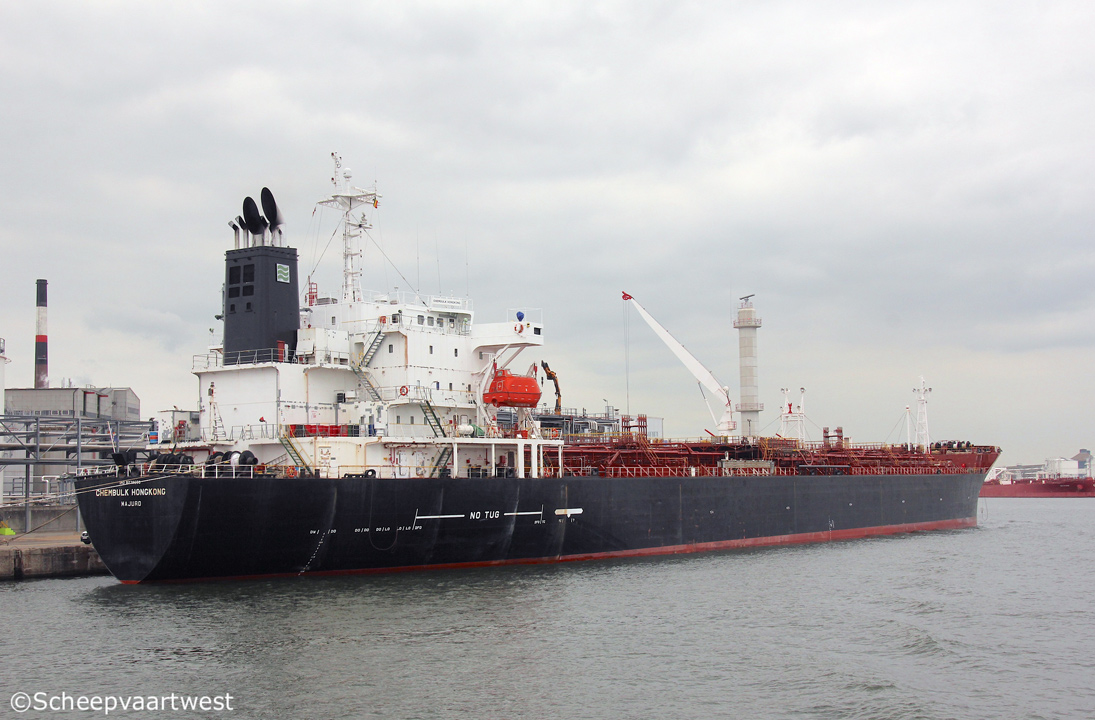

Chembulk Hongkong 02
Antwerpen 28/08/18



Name

CHEMBULK HONGKONG

Type

Tanker for chemicals & oil products

IMO-number

9278650

Call sign

V7OV3

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

2009 - 2015 Republic of Singapore, Singapore City - Call sign: 9VFG6

GT

20.058 t

Suez: 21.301,33 t

DWT

Summer: 32.315 t

Winter: 21.400 t

NT

8.489 t

Suez: 19.142 t

Panama: 16.744 t

Displacement

Summer: 40.105 t

Winter: 39.190 t

Length

174,38 m overall

167,00 m between perpendiculars

Breadth

27,73 m extreme

Draught

Summer: 10,62 m

Winter: 10,40 m

Keel to masthead

42,59 m

Air draft

31,97 m normal ballast

40,10 m lightship

Freeboard

Summer: 5.410 mm

Winter: 5.640 mm

Depth

16,00 m moulded

Speed

Max: 16,3 knots

Service: 15,0 knots

Eco: 12,5 knots

Built

2003

Keel laid

19/06/2002

Date of completion

04/04/2003

Builder

Shin Kurushima Dockyard Co., Ltd.
Imabari
Japan

Yard number

5211

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Mitsui/MAN B&W 6S50MC - 2 stroke single acting 6 cylinder 500 x 1.910 mm combustion engine 7.980 kW / 10.850 hp at 127 rpm

Builder: MAN B&W Diesel A/S - Denmark

Propellers

1x Fixed pith propeller aft at 127 rpm

Boilers

1x Auxiliary boiler, oil/gas fired CPH-20

1x Auxiliary boiler, exhaust gas heated BT-10

manufacturer: Aalborg Industries A/S

Generators

3x Yanmar 6N21L-UV - 4 stroke 6 cylinder 210 x 290 mm each 760 kW diesel engines coupled with 3 generators each 700 kW diesel generatorsets

Manufacturer: Yanmar Amagasaki - Japan

Emergency generator

1x Deutz BF6L913 diesel generatorset

Number of tanks

14

Cargo tank capacity

35.455 m³

Number of slop tanks

2

Slop tank capacity

1.154 m³

Pumps

14x Framo submersible pump cargo each 300 m³/h

2x Framo submersible pump cargo each 100 m³/h

2x Centrifugal ballast pumps each 650 m³/h

Manifolds

Bow to centre manifold: 89,21 m

Stern to centre manifold: 85,17 m

Distance between cargo manifold centres: 375 mm

Distance ships rail to manifold: 3.480 mm

Distance manifold to ships side: 3.700 mm

Top of rail to centre of manifold: 1.850 mm

Distance main deck to centre of manifold: 3.100 mm

Spill tank grating to centre of manifold: 860 mm

Tank capacities

Fuel oil: 1.268 m³

Diesel oil: 352 m³

Ballast: 14.960,2 m³

Lifting equipment

2x Derricks - SWL 0,5 t each

1x Crane - SWL 10,0 t

Crew size

20

Manager

Thome Ship Management Pte. Ltd.
16 Raffles Quay
#43-01 Hong Leong Building
Singapore 048581
Republic of Singapore

Technical operator

Thome Ship Management Pte Ltd
16 Raffles Quay, #43-01 Hong Leong Building
Singapore-048581
Republic of Singapore

Commercial operator

Chembulk Management II LLC(Chembulk Tankers)
The Delamar175 Rennell DriveSouthport, CT 06890USA
United States of America

Owner

Chembulk Ocean Transport LLC
The Delamar 175 Rennell Drive Southport CT 06890

Registered owner

Chembulk Hongkong LLC
The Trust Company of the Marshall Islands, Inc.
Trust Company Complex, Ajeltake Road, Ajeltake Island, Majuro
Republic of the Marshall Islands

Disponent owner

Chembulk Ocean Transport LLC
The Delamar 175 Rennell Drive Southport CT 06890

Latest data adjustment

06 September 2018
