Antwerpen 11 August 2015 |
|
Name |

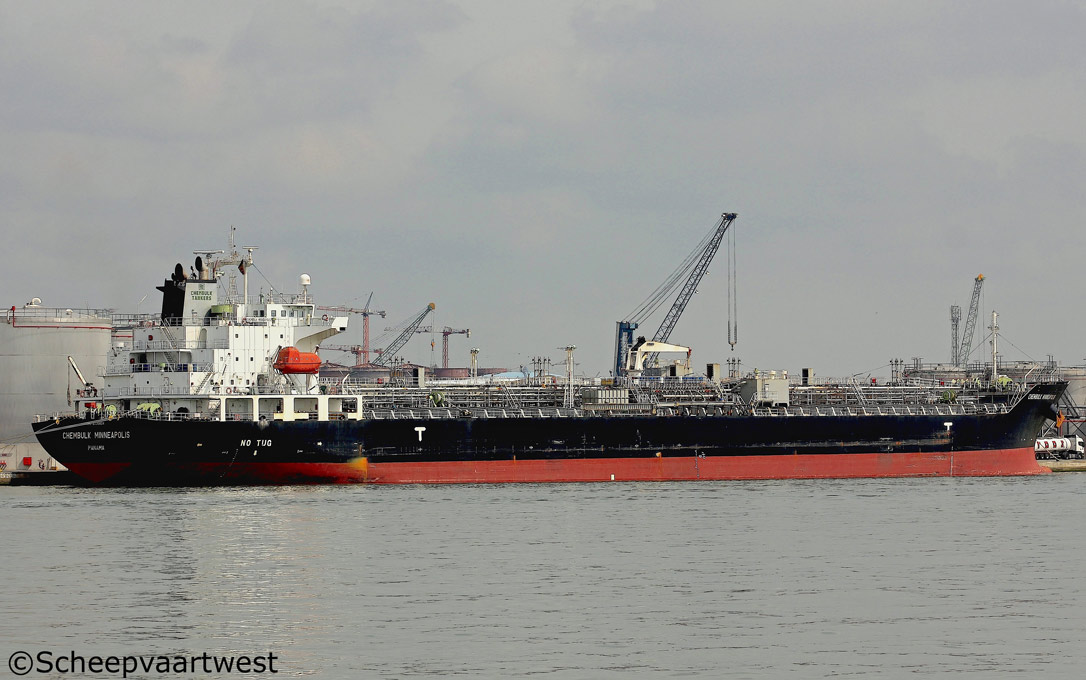

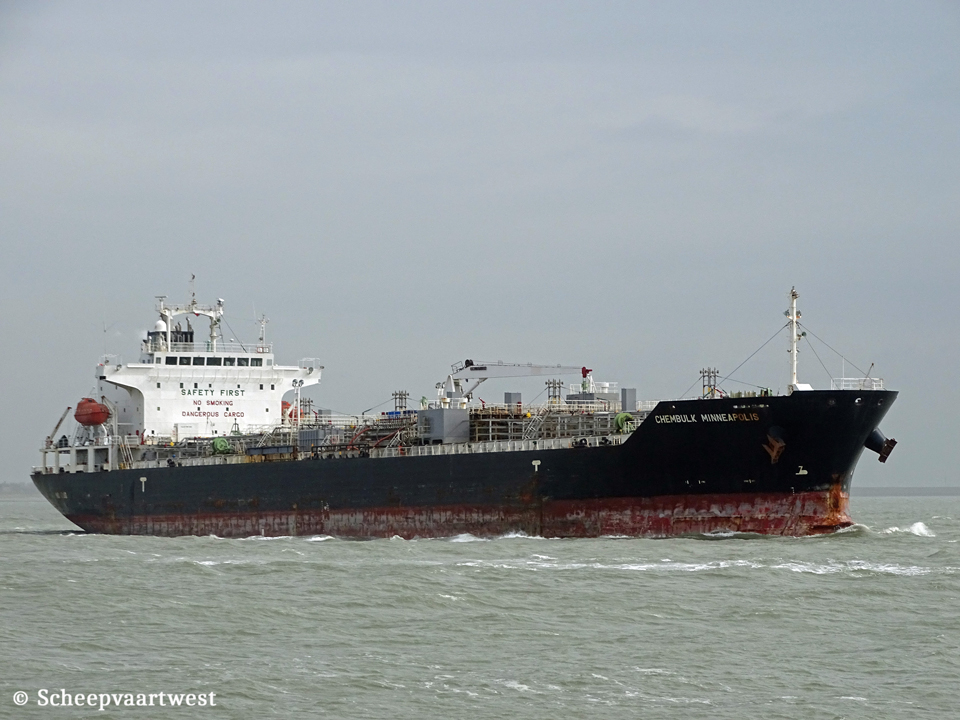

CHEMBULK MINNEAPOLIS |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9335824 |
|
Call sign |
3ELA7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
19.391 t registered Suez: 20?441,19 t |
|
DWT |
Summer: 33.682,45 t |
|
NT |
9.793 t registered Suez: 18.793,94 t Panama: 16.196 t |
|
Length |
170,00 m overall |
|
Breadth |
26,60 m moulded |
|
Draught |
Summer: 11,32 m |
|
Moulded L x B x D |
162,00 x 26,60 x 16,00 m |
|
Registered L x B x D |
162,83 x 26,60 x 16,00 m |
|
Keel to masthead |
39,00 m |
|
Air draft |
Lightship: 36,95 Normal ballast: 32,10 At loaded summer deadweight: 27,63 m |
|
Freeboard |
Summer: 4.717 mm Winter: 4.950 mm |
|
Depth |
16,00 m moulded |
|
Speed |
Service: 15,0 knots |
|
Built |
2007 |
|
Keel laid |
22.11.2006 |
|
Launch date |
09.04.2007 |
|
Date of completion |
29.06.2007 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. |
|
Yard number |
370 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi-Akasaka 6UEC52LS - 2 stroke single acting 6 cylinder 520 x 1.850 mm diesel engine 7.980 kW at 120,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 460 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 19,31 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 625 kW |
|
Number of cargo tank |
14 |
|
Cargo tank capacity 98% |
Liquid: 37.202,79 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
2.259,6 m³ |
|
Pumps |
Cargo pumps: 14x Centrifugal each 330 m³/h 2x Centrifugal each 220 m³/h Ballast pumps: 2x Centrifugal each 650 m³/h |
|
Manifolds |
Bow to centre manifold: 82,55 m Stern to centre manifold: 87,45 m Distance between cargo manifold centres: 500 mm Distance ships rail to manifold: 5.600 mm Distance manifold to ships side: 5.790 mm Top of rail to centre of manifold: 1.144 mm Distance main deck to centre of manifold: 2.700 mm Spill tank grating to centre of manifold: 1.800 mm |
|
Tank capacities |
Fuel oil: 1.837 m³ Diesel oil: 475 m³ Fresh water: 456 m³ Water ballast: 13.509 m³ |
|
Lifting equipment |
1x Crane midships - SWL 10,0 t |
|
Manager |
M.T.M. Ship Management Pte. Ltd. |
|
Technical operator |
MTM Ship Management Pte., Ltd. Singapore 079120 |
|
Commercial operator |
Chembulk Ocean Transport LLC USA |
|
Disponent owner |
Chembulk Ocean Transport LLC USA |
|
Registered owner |
Mi-Das Line S.A. |
|
Latest data adjustment |
13 December 2015 |
