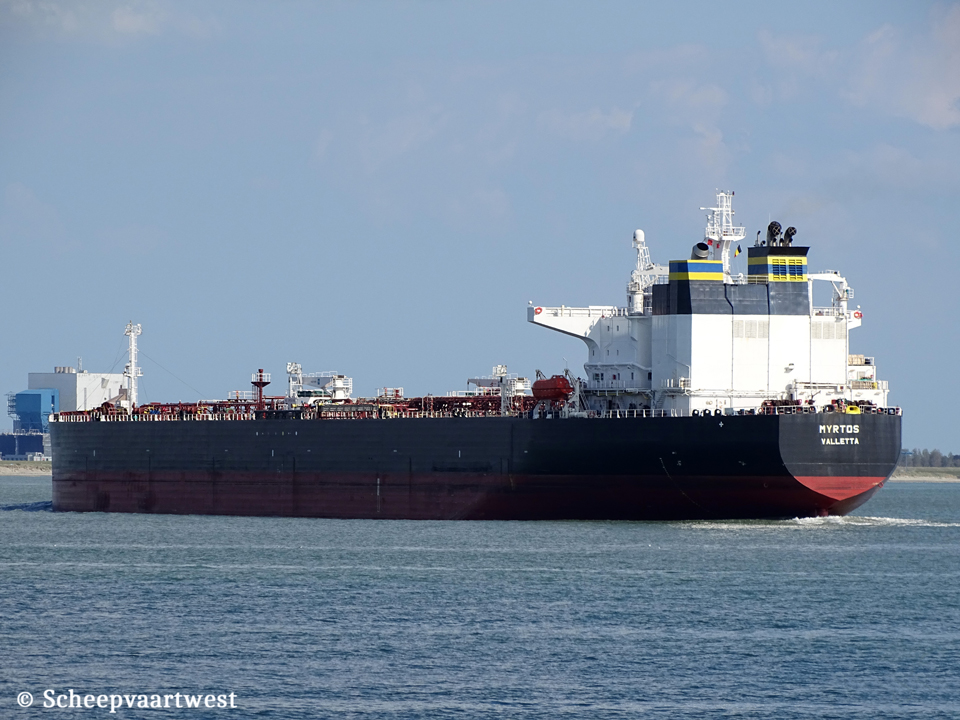

Myrtos IMO 9389100 01
Westerschelde 02 September 2020



Name

MYRTOS

Type

Crude and oil products carrier

IMO-number

9389100

Call sign

9HA4299

Flag

Malta

Port of registry

Valletta

Previous flags

2009 - 2016 Greece - Call sign: SVAW7

GT

58.677 t

Suez: 59.846,85 t

DWT

106.969 t

NT

32.391 t

Panama: 48.243 t

Suez: 54.620,02 t

Displacement

125.378 t

Length

243,80 m overall

233,00 m between perpendiculars

Breadth

42,00 m moulded

Draught

Summer: 15,12 m

Keel to mast end

49,45 m

Freeboard

6.316 mm

Depth

21,40 m moulded

Speed

15,0 knots

Built

2009

Keel laid

21/07/2009

Launch date

20/09/2009

Date of completion

01/12/2009

Builder

Shanghai Waigaoqiao Shipbuilding Co., Ltd.

3001 Zhouhai Road Pudong New Area

Shanghai, 200137

China

Yard number

H1087

Hull material

Steel

Hull type

Double hull

Main engine

1x Hudong/MAN-B&W 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW / 18.420 hp at 105,0 rpm

Manufacturer: Hudong Heavy Machinery Co.,Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Dalian Marine Propeller Plant

Boilers

2x Auxiliary boiler Mission OL - 18,0 MPa

1x Exhaust gas boiler Mission XW - 22,0 MPa

Manufacturer: Aalborg

Generators

3x Main diesel generatorset each 800 kW

Manufacturer: Nishishiba Electric Co., Ltd.

Number cargo of tanks

12 + 2 slop tanks

Cargo tank capacity

98%: 118.075 m³

100%: 120.485,10 m³

Number of pumps

3x Cargo pumps each 2.800 m³

Tank capacities

Diesel oil: 274,60 m³

Ballast: 40.292,50 m³

Lub oil: 222,90 m³

Fresh water: 491,99 m³

Fuel oil: 3.066,60 m³

Lifting equipment

1x Engine room overhead crane - SWL 5,0 t

Manufacturer: Jiangyin chengjiang ship equipment factory

2x Hose handling cranes - SWL 15,0 t

Manufacturer: TTS Bohai Machinery (Dalian) Co., Ltd.

1x Provisions crane, port - SWL 5,0 t

1x Provisions crane, starboard - SWL 3,0 t

Manufacturer: Zhenjiang Marine Auxiliary Machinery Works

ISM & commercial manager

TMS Tankers Ltd.

109, Kifisias Avenue & Sina Street, Marousi, 151 24 Athens

Greece

Registered owner

Firebird Navigation Inc.

Care of TMS Tankers Ltd.

109, Kifisias Avenue & Sina Street, Marousi, 151 24 Athens

Greece

Latest data adjustment

10 June 2022
