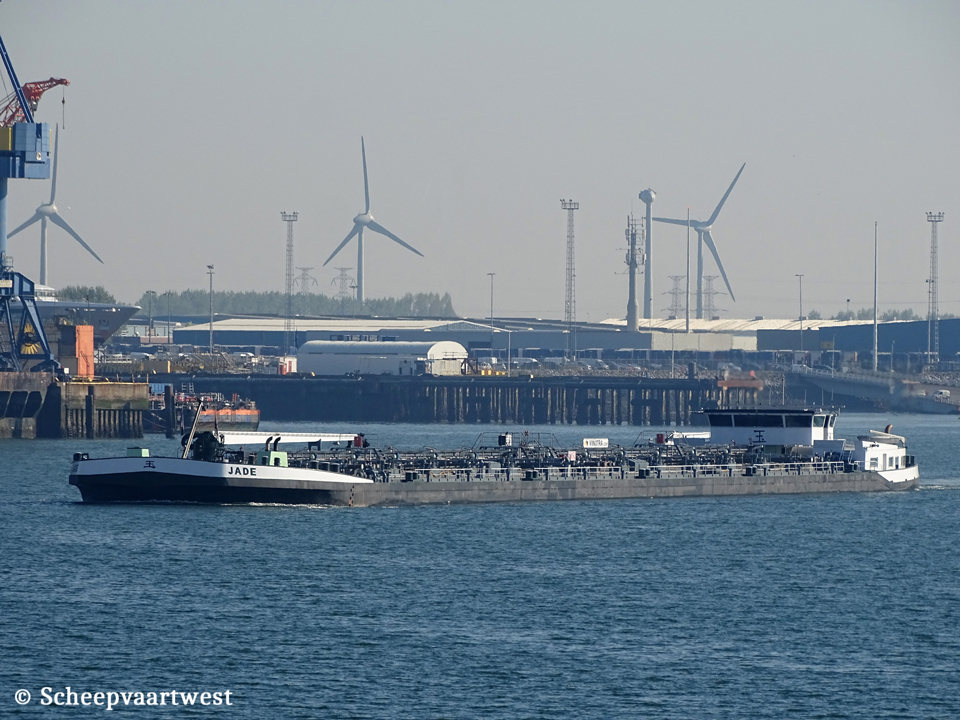

Jade ENI 02326538 01
Vlissigen, The Netherlands 20 April 2019



Name

JADE

Type

Chemical tanker, Inland waterways

IMO number

9306081

ENI-number

02326538

Call sign

PHAO

Flag

The Netherlands

Port of registry

Rotterdam

Tonnage

9.007 t

Length

134,95 m overall

133,00 m between perpendiculars

Breadth

20,00 m moulded

20,24 m extreme

Draught

4,60 m

Depth

6,00 m

Built

2004

Keel laid

19/04/2003

Date of completion

23/07/2004

Builder casco

Yahua Shipyard

Nantong

China

Builder completion

Alblas Scheepsbouw BV

Hendrik Ido Ambacht

The Netherlands

Hull material

Steel

Continuous decks

1

Main engine

2x MTU DDC 12V4000M60 - 12 cylinder combustion engines each 1.324 kW / 1.800 hp at 1.800 rpm

Propellers

2x Rudder propellers type VZ-1250-CR each 1.250 kW at 1.800 rpm

Generators

1x SisuDiesel 620 DSRI diesel generatorset 127 kVA

1x SisuDiesel 420 DSRG diesel generatorset 80 kVA

2x Generatorsets each 600 kW

Bow thruster

Electro motor - Veth-Jet - 550 hp

Tank capacity

10.600 m³

Lifting equipment

1x Car crane - SWL 2,0 t at 16,00 m

Owner

Vof. Jade

Gouman-Akker 11

2994 BC Barendrecht

The Netherlands

Latest data adjustment

25 April 2022
