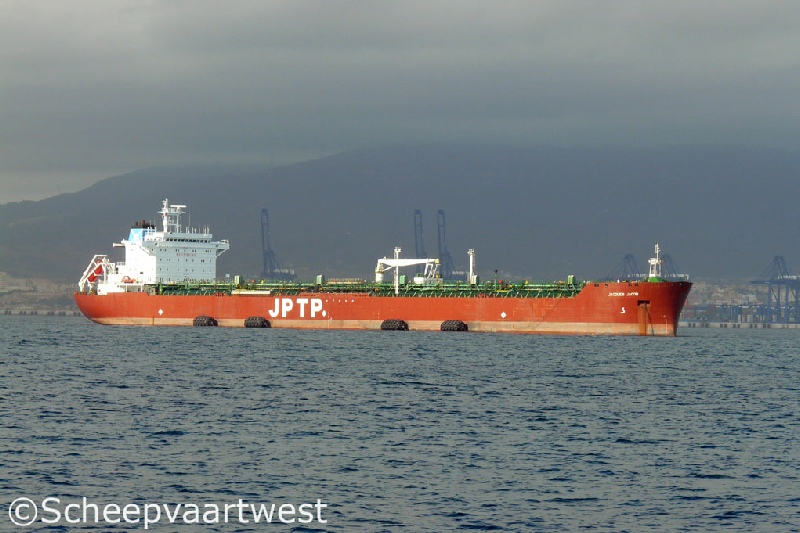

Jacques Jacob 02
Gibraltar 21 September 2011

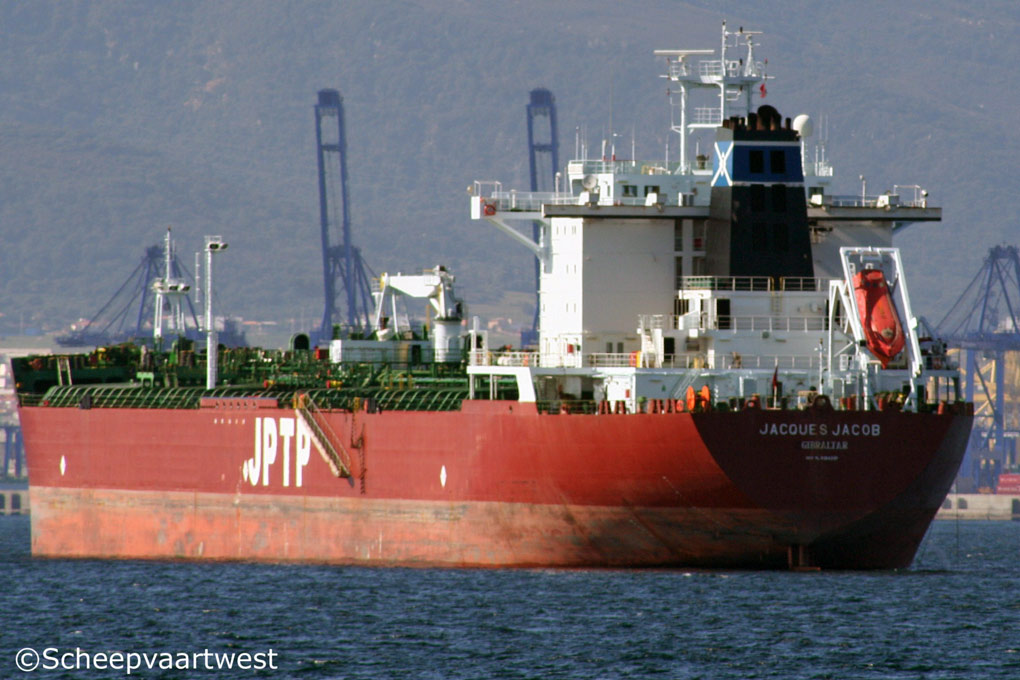

Jacques Jacob 03
Gibraltar 10/02/12


Name

JACQUES JACOB

Previous name

19.05.2002 - 05.03.2009 Chaleur Bay

Type

Crude oil tanker

IMO-number

9164201

Call sign

ZDKG7

Flag

16.05.2011 Gibraltar - (Gibraltar is an overseas territory of the United Kingdom)

Previous flags & harbours

19.05.2002 - 28.10.2003 Republic of Malta - Valletta

28.10.2003 - 09.06.2010 The Cayman Islands - George Town

09.06.2010 - 16.05.2011 Republic of Liberia - Monrovia - A8VX5

Port of registry

16.05.2011 Gibraltar

GT

40.705 t registered

Suez: 43.035 t

DWT

Summer: 71.345 t

NT

21.529 t registered

Panama: 33.641 t

Suez: 37.057 t

Light ship weight

15.555 t

Length

228,56 m overall

220,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

11,80 m

Freeboard

6.017 mm

Depth to maindeck

20,10 m moulded

Speed

15,0 knots

Built

2000

Keel laid

29.06.1998

Delivery date

30.03.2000

Builder

3 Maj Shipbuilding Industry
Rijeka
Croatia

Yard number

663

Hull material

High strength steel & Ordinary strength steel

Hull type

Double hull oil carrier

Bulkheads

Non tight: 2

Oil tight: 11

Main engine

1x Sulzer 6RTA62U - 6 cylinder 620 x 2.150 mm diesel engine - 11.995,68 kW at 105 rpm

Manufacturer name: 3 MAJ-MID D.D

Propeller

1x Fixed Screw - 4 blades nickel aluminium bronze, right handed - diameter 6.500 mm

Boilers

2x Oil fired boilers Aalborg AQ-9 type

Steam production 14.000 kg/h at 8,0 bar each

1x Combination oil fired & Exhaust gas boiler Aalborg AQ-16 type.

Steam capacity: 2.000 kg/h at 8,0 bar oil fired section, 1.500

kg/h at 8,0 bar exhaust gas section

Generators

3x Wärtsilä 6L20 diesel generatorsets each 1.020 kW at 900 rpm

Number of cargo tanks

10

Cargo oil capacity

81.645 m³ / 76.746,3 t

Number of tanks

Ballast: 12

Fuel oil: 9

Lubricating oil: 8

Diesel oil: 6

Sludge: 6

Fresh water: 5

Hydraulic oil: 2

Slop: 2

Chain: 1

Potable water: 1

Waste water: 1

Tank capacities

Freshwater: 241 m³

Fuel oil: 3.192 m³ / 3.000,48 t

Tank ballast: 29.787 m³

Number of segregations

5 + slop

Number of cargo pumps

10x 900 m³/h at 130 m head

2x 300 m³/h at 130 m head

Type of cargo pumps

Framo-submerged, self-priming, hydraulically driven

Discharge capacity

5.400 m³/h at 130 m head

Ballast pumps

2x 1.100 m³/h against 25 mlc

Type of ballast pumps

Framo-submerged, self-priming, hydraulically driven

Mooring winches

Forecastle: 2x Combined hydraulic winch double drum

split type.

Main deck forward: 1x Hydraulic winch double drum split type.

Main deck aft: 1x Hydraulic winch double drum split type.

Poop deck: 2 Hydraulic winch double drum split type.

Cargo manifolds

6x 16" each side

Cargo hoses cranes

1x 15,0 t SWL / Hydraulic

Manager

Jacob-Scorpio Pool Management

Operator

JPTP - Ernst Jacob GMBH & CO. KG
Suederhofenden 12
D-24937 Flensburg
Germany

Registered owner

Schiffahrtsgesellschaft "Chaleur Bay" MBH & CO. KG

Ballindamm 6, 20095 Hamburg
Germany
