| Westerschelde 20 November 2019 |
|
Name |

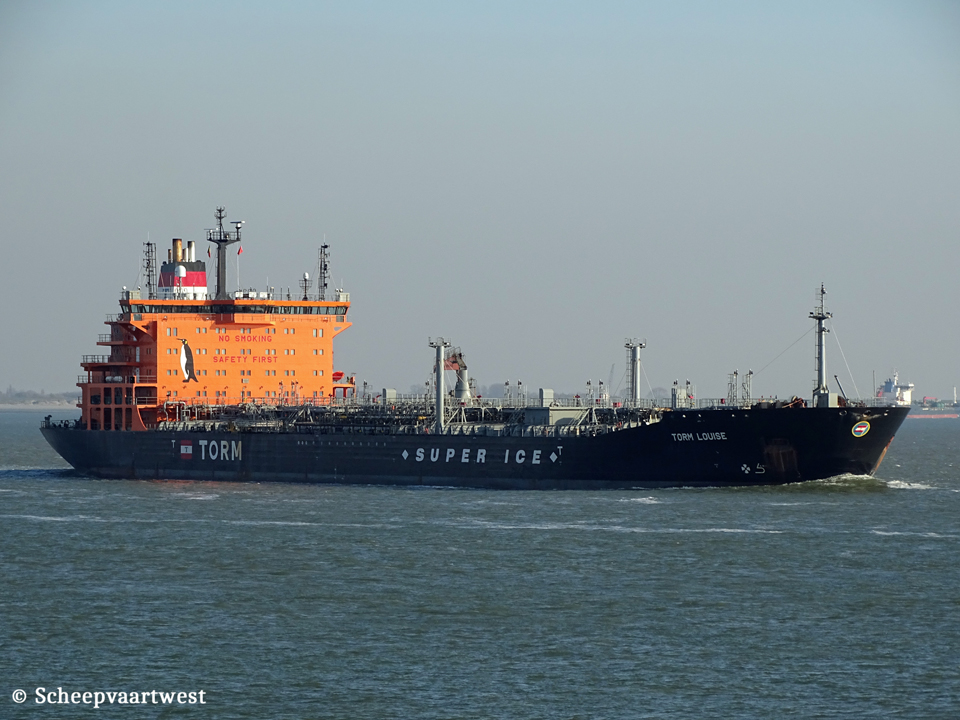

TORM LOUISE |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9392482 |
|
Call sign |
OWEG2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
29.325 t |
|
DWT |
49.999 t |
|
NT |
15.937 t |
|
Length |
183,20 m overall 174,50 m between perpendiculars |
|
Breadth |
32,46 m extreme 32,20 m moulded |
|
Draught |
Summer: 12,95 m |
|
Keel to mast end |
47,60 m |
|
Depth |
18,20 m |
|
Speed |
15,5 knots |
|
Built |
2009 |
|
Keel laid |
01/12/2008 |
|
Launch date |
24/02/2009 |
|
Date of completion |
03/07/2009 |
|
Builder |
Guangzhou Shipyard International Company Limited Guangzhou China |
|
Yard number |
05130020 |
|
Hull material |
Steel |
|
Hull type |
Double hull Double bottom with hopper |
|
Main engine |
1x Wärtsilä 7RT-flex50 - 2 stroke single acting 7 cylinder 500 x 2.050 mm combustion engine 11.620 kW / 15.799 hp at 124,0 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil fired Greens LDF20-0.7 1x Auxiliary boiler, exhaust gas heated Greens GFL160-0.7 Builder: Greens-shazhou Boiler Company Ltd. |
|
Generators |
4x Wärtsilä 6L20 main diesel generatorsets each 920 kW |
|
Emergency generator |
1x AGCO Sisu diesel generatorset |
|
Bow thruster |
1x 1.180 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
50.369 m³ |
|
Slop tank capacity 98% |
3.362 m³ |
|
Number of pumps |
12x Cargo pumps each 550 m³/h |
|
Tank capacities |
Ballast: 22.103,39 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
ISM & commercial manager |
Torm SA Tuborg Havnevej 18 2900 Hellerup Denmark |
|
Registered owner |
Torm SA Tuborg Havnevej 18 2900 Hellerup Denmark |
|
Latest data adjustment |
14 April 2022 |
