| Westerschelde 22 September 2015 |
 |
|
| Westerschelde 22/09/15 | |
|
Name |

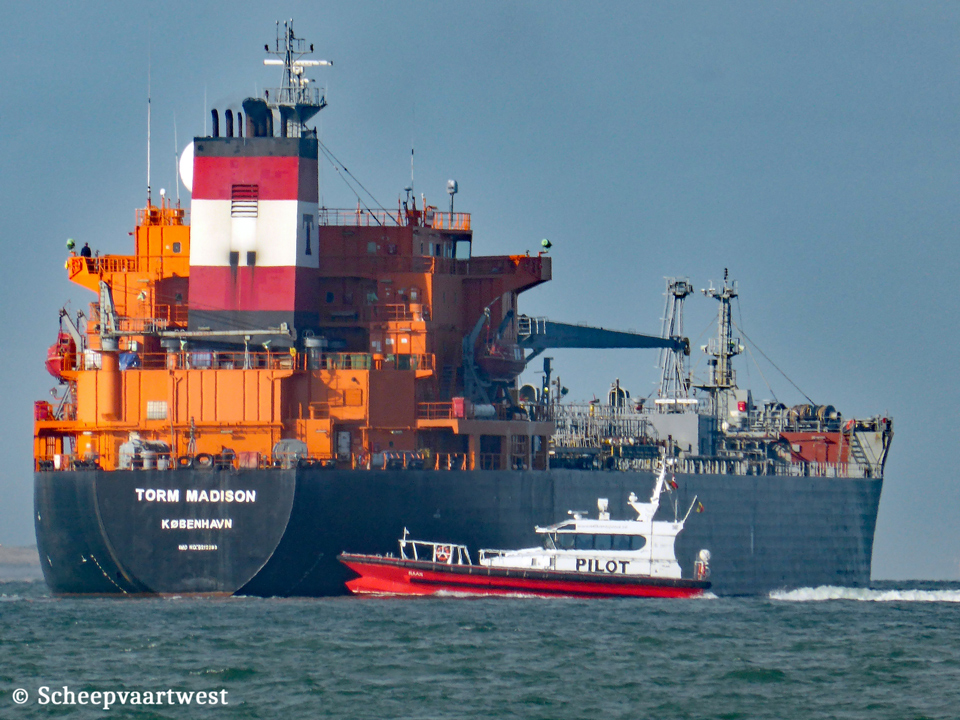

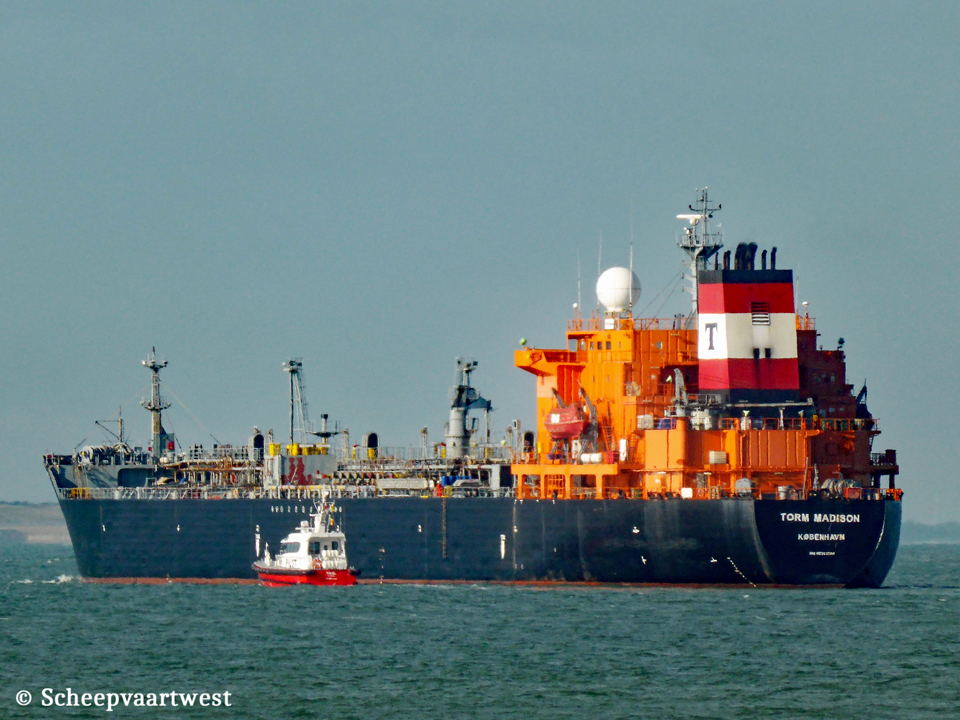

TORM MADISON |
|
Previous names |
2001 - 2008 Nina 2008 - 2017 Madison |
|
Type |
Chemical / Products tanker |
|
IMO-number |
9212383 |
|
Call sign |
OYNN2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
23.842 t |
|
DWT |
35.828 t |
|
NT |
8.835 t |
|
Length |
183,06 m overall 174,50 m between perpendiculars |
|
Breadth |
27,42 m extreme |
|
Draught |
Summer: 11,02 m |
|
Keel to mast end |
43,20 m |
|
Depth |
17,60 m moulded |
|
Speed |
14,2 knots |
|
Built |
2000 |
|
Keel laid |
17/01/2000 |
|
Launch date |
22/04/2000 |
|
Delivery date |
16/06/2000 |
|
Builder |
Daedong Shipbluiding Co., Ltd. Chinhae South Korea |
|
Yard number |
S1041 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 6RTA48T - 2 stroke 6 cylinder 480 x 2.000 mm combustion engine 8.281 kW / 11.260 bhp at 124,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Main diesel generatorsets each 500 kW |
|
Bow thruster |
1x 739 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 100% |
43.180 m³ |
|
Number of pumps |
10x Centrifugal cargo pumps each 500 m³/h 2x Centrifugal cargo pumps each 300 m³/h |
|
Tank capacities |
Ballast: 20.180 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t |
|
Manager |
Torm Tuborg Havnevej 18 DK-2900 Hellerup Denmark |
|
Operator |
Dampskibsselskabet Torm A/S |
|
Registered owner |
Vesselco 1 K/S |
|
Previous names & owners |
2001 - 2008 Nina - San John Shipping Corp - Liberia 2008 - 2017 Madison - Madison Shipping LLC - Marshall Islands |
|
Renamed |
Sea Pearl 2017 Saint Vincent & Grenadines - Call sign: J8B5568 2020 Nigeria, Lagos - Call sign: 5OPU Manager & Owner: Ship & Shore Services Ltd., Lagos - Nigeria |
|
Latest data adjustment |
03 February 2024 |
