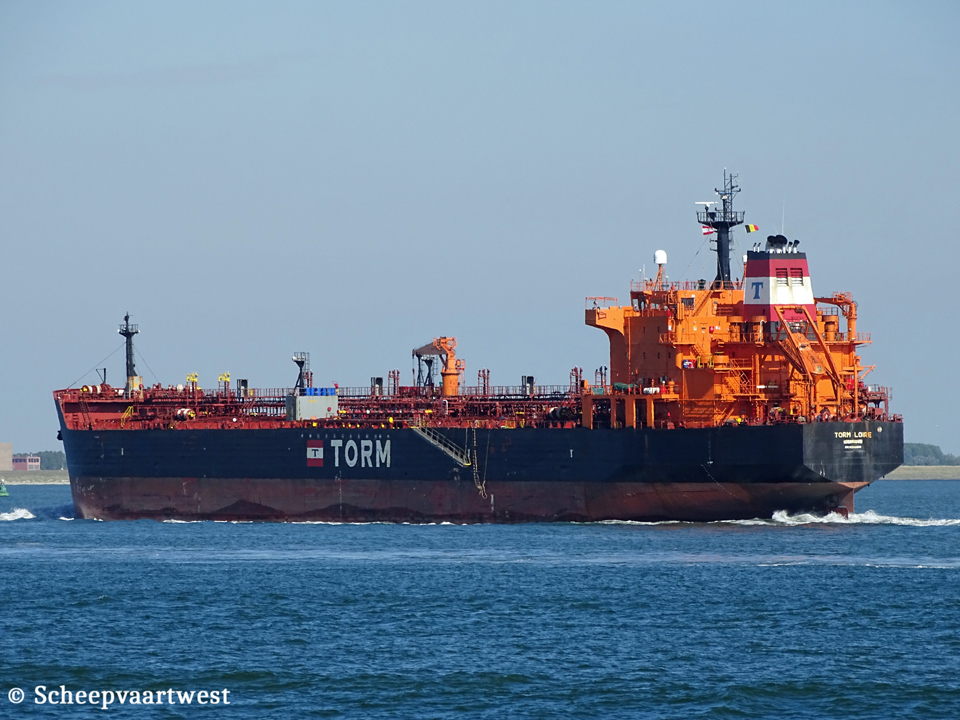

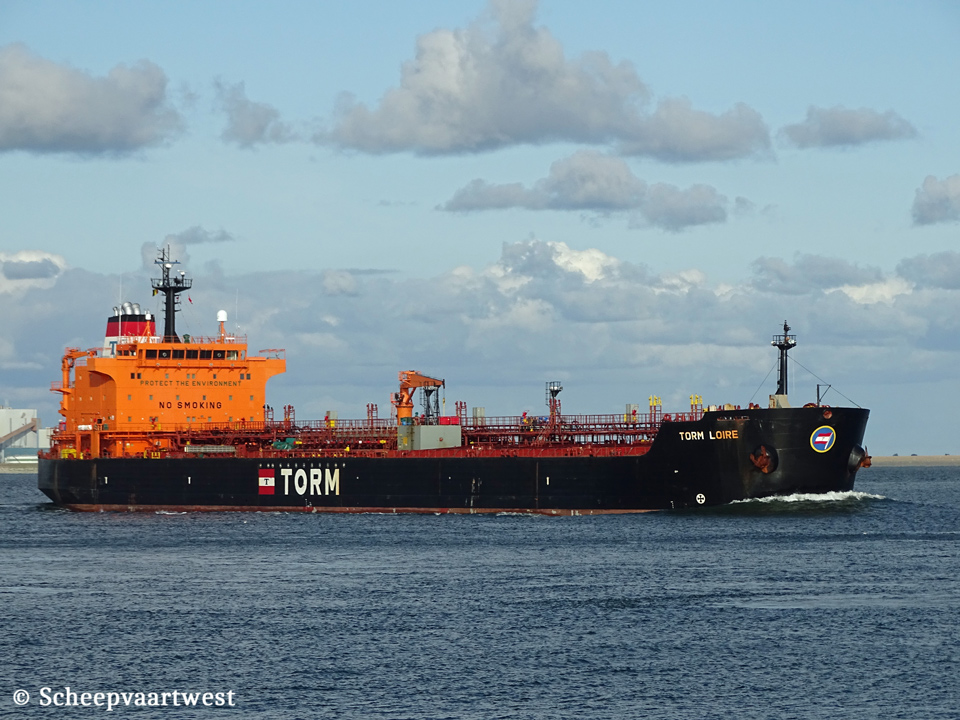

Westerschelde 08 July 2019 |
 |
 |
|
| Antwepen 28/08/18 | Westerschelde 05/07/19 | |
|
Name |

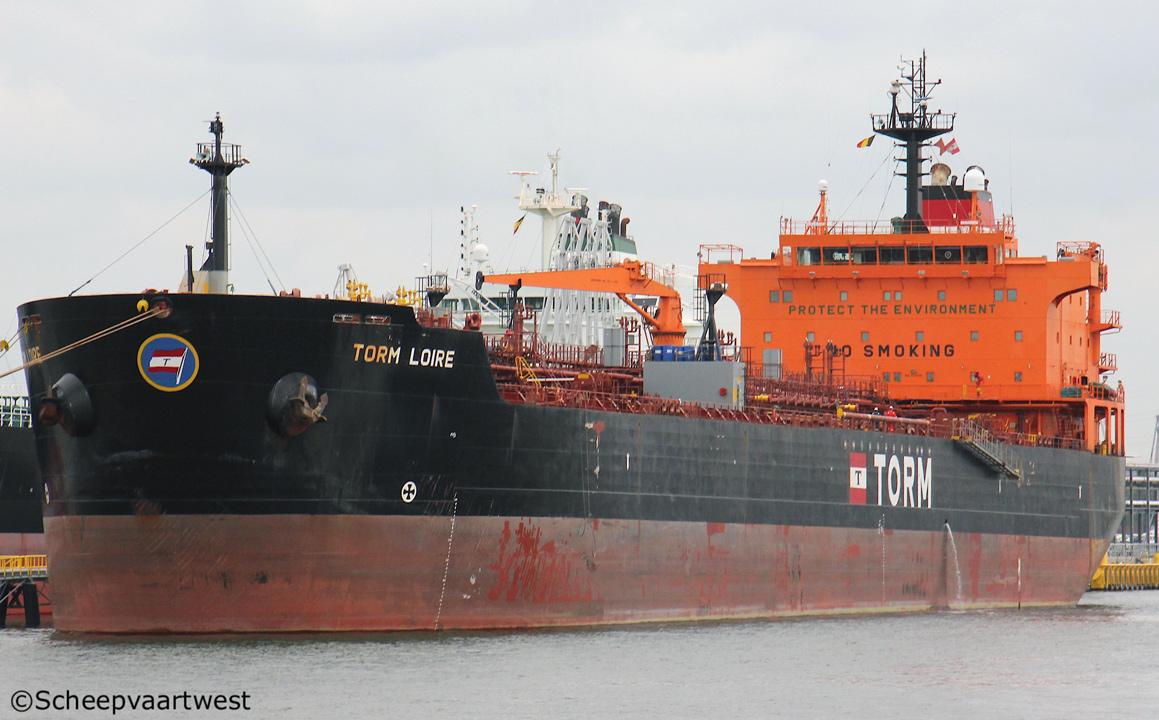

TORM LOIRE |
|
Previous names |
2004 - 01/2008 Loire |
|
Type |
Tanker for oil and chemicals - Handysize |
|
IMO-number |
9282986 |
|
Call sign |
OYMI2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
23.246 t registered |
|
DWT |
Summer: 37.106 t |
|
NT |
10.126 t registered |
|
Length |
182,30 m overall |
|
Breadth |
27,62 m extreme 27,34 m moulded |
|
Draught |
11,22 m |
|
Moulded L x B x D |
175,00 x 27,34 x 16,70 m |
|
Registered L x B x D |
176,08 x 27,34 x 16,70 m |
|
Freeboard |
5.514 mm |
|
Depth |
16,70 m moulded |
|
Speed |
Max: 15,7 knots Service: 14,5 knots |
|
Built |
2004 |
|
Keel laid |
09/10/2003 |
|
Launch date |
07/01/2004 |
|
Date of completion |
26/02/2004 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
0254 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 Longitudinal: 2 |
|
Continuous decks |
1 |
|
Main engine |
1x HHI/MAN-B&W 7S50MC-C - 2 stroke single acting 7 cylinder 500 x 2.000 mm combustion engine 11.060 kW at 127,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 630 mm |
|
Propellers |
1x Mono-block solid fixed pitch propeller Manufacturer: Hyundai Heavy Ind. Co. Ltd. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Manufacturer: KangRim Industries. Co., Ltd. |
|
Generators |
3x Himsen 5H21/32 main diesel generatorsets Manufacturer: Hyundai Heavy Ind. Co. Ltd. |
|
Emergency generator |
1x Cummins LTA-10-D(M) diesel generatorset 180 kVA |
|
Bow thruster |
1x Kawasaki KT-88B3F - 800 KW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
42.019 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
878 m³ |
|
Pumps |
10x Cargo pumps each 500 m³/h 2x Cargo pumps each 320 m³/h 2x Cargo pumps each 150 m³/h |
|
Tank capacities |
Ballast: 18.940,2 m³ Fuel oil: 1.417,8 m³ Fresh water: 224,6 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
30 |
|
Manager |
Torm A/S 18, Tuborg Havnevej Hellerup Denmark |
|
Registered owner |
VesselCo 3 K/S |
|
Renamed |
2019 Atlanticos Marshall Islands, Majuro - Call sign: V7A2790 Owner: Atlanticos Shipping Ltd. Manager: Salmar Shipping Ltd. |
|
Latest data adjustment |
01 March 2021 |
