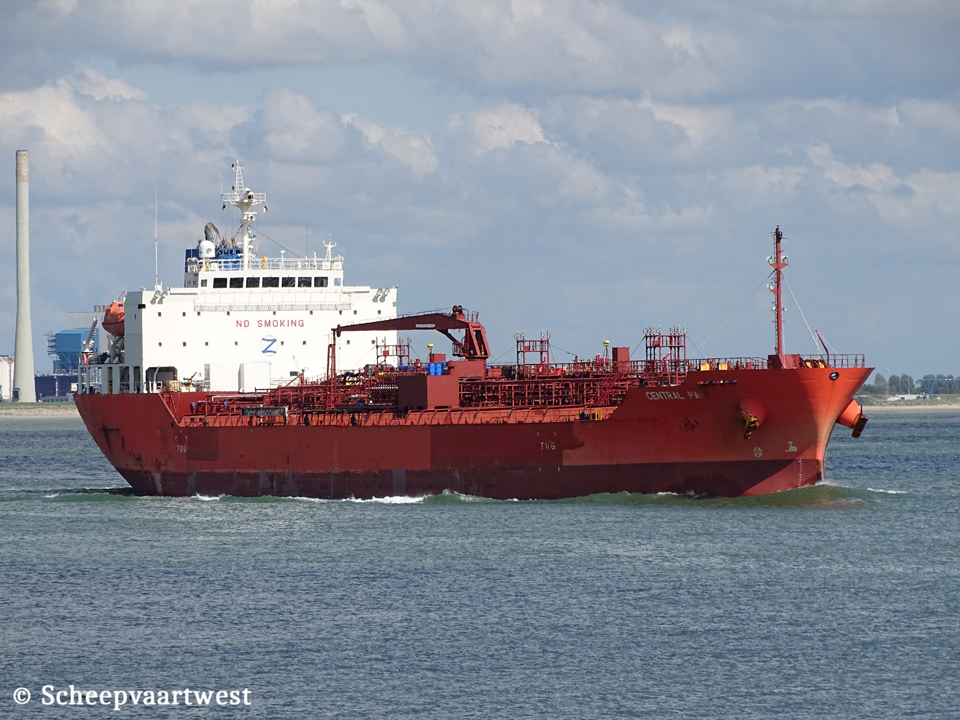

Central Park IMO 9725823 01
Westerschelde 11 JUly 2020



Name

CENTRAL PARK

Type

Oil & Chemical tanker

IMO-number

9725823

Call sign

D5IM4

Flag

Liberia

Port of registry

Monrovia

GT

12.145 t

DWT

19.997,94 t

NT

6.203 t

Length

145,00 m overall

Breadth

24,20 m moulded

Draught

Summer: 9,74 m

Moulded L x B x D

139,00 x 24,20 x 13,20 m

Registered L x B x D

139,26 x 24,20 x 13,20 m

Freeboard

Summer: 3.488 mm

Depth

13,20 m moulded

Speed

Service: 14,5 knots

Max: 15,3 knots

Built

2015

Keel laid

09/03/2015

Launch date

16/06/2015

Date of completion

23/10/2015

Builder

Kitanihon Shipbuilding Co. Ltd.

Hachinohe

Japan

Yard number

603

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Mitsubishi/Akasaka 5UEC45LSE-1 - 2 stroke single acting 5 cylinder 450 x 1.840 mm combustion engine 4.900 kW - 6/662 hp at 124,0 rpm

Manufacturer: Akasaka Diesels Ltd. - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 390 mm

Propellers

1x Fixed pitch propeller - aft at 124,0 rpm

Boilers

1x Auxiliary vesical boiler - 0,9 MPa

Evaporation: 16,12 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Main diesel generatorsets each 560 kW

Bow thruster

1x Tunnel thruster 700 kW / 952 bhp, forward

Number of tanks

16

Cargo tank capacity 98%

Liquid: 20.395 m³

Slop tank capacity 98%

1.125 m³

Number of pumps

16x Cargo pumps each 250 m³/h

Tank capacities

Fuel oil: 1.1044,17 m³

Fresh water: 402,86 m³

Ballast: 7.072 m³

Crew size

23

Manager

Zodiac Maritime Limited

5th Floor, Portman House, 2, Portman Street

London, W1H 6DU

United Kingdom

Registered owner

Clumvez Shipping Inc.

5th Floor, Portman House, 2, Portman Street

London, W1H 6DU

United Kingdom

Latest data adjustment

10 December 2021
