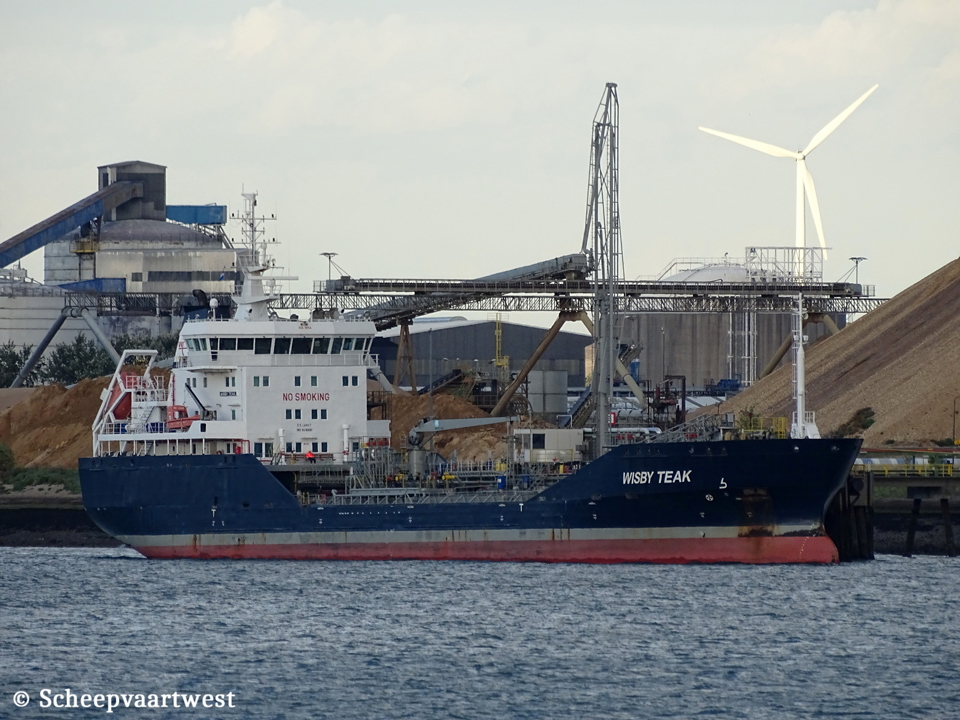

Vlissingen 07 September 2018 |
|
Name |
WISBY TEAK |
|
Type |
Chemical tanker |
|
IMO-number |
9518880 |
|
Call sign |
LAHV7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
GT |
4.776 t |
|
DWT |
7.373,6 t t |
|
NT |
2.008 t |
|
Length |
99,87 m overall 95,01 m between perpendiculars |
|
Breadth |
18,59 m extreme 18,24 m moulded |
|
Draught |
Summer: 6,10 m |
|
Depth |
9,00 m |
|
Speed |
Service: 14,0 knots |
|
Built |
2011 |
|
Keel laid |
05/01/2009 |
|
Launch date |
03/01/2010 |
|
Date of completion |
15/12/2011 |
|
Builder |
Penglai Zhongbai Jinglu Ship Industry Co., Ltd. Penglai China |
|
Yard number |
JL0014(T) |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L26 - 4 stroke single acting 9 cylinder 260 x 320 mm combustion engine Mcr 2.925 kW / 3.977 hp at 1.000 rpm Manufacturer: Wärtsilä Italia S.p.A. |
|
Propellers |
1x Controllable pitch propeller - aft at 169,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Shaft generator |
1x AVK DSU 62L 750 kW / 450 Volt |
|
Generators |
3x Volvo Penta D12MG - 4 stroke 6 cylinder 131 x 150 mm diesel engine each Mcr 400 kW connected with generators each 260 kW / 450 Volt |
|
Emergency generator |
1x Volvo Penta D7A TA diesel generatorset 120 kW |
|
Bow thruster |
1x Tunnel thruster 400 kW / 544 bhp, forward |
|
Cargo tank capacity 98% |
Liquid: 7.099 m³ |
|
Tank capacities |
Ballast: 3.511,3 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 46 mm |
|
Crew size |
12 |
|
ISM & commercial manager |
Wisby Shipmanagement AB Fabriksgatan 4 SE-531 30 Lidkoping Sweden |
|
Operating company |
M Hannestad AS Busterudkleiva 54 1782 Halden Norway |
|
Registered owner |
Casablanca Tankers AB Care of Fabriksgatan 4 SE-531 30 Lidkoping Sweden |
|
Latest data adjustment |
22 August 2021 |
