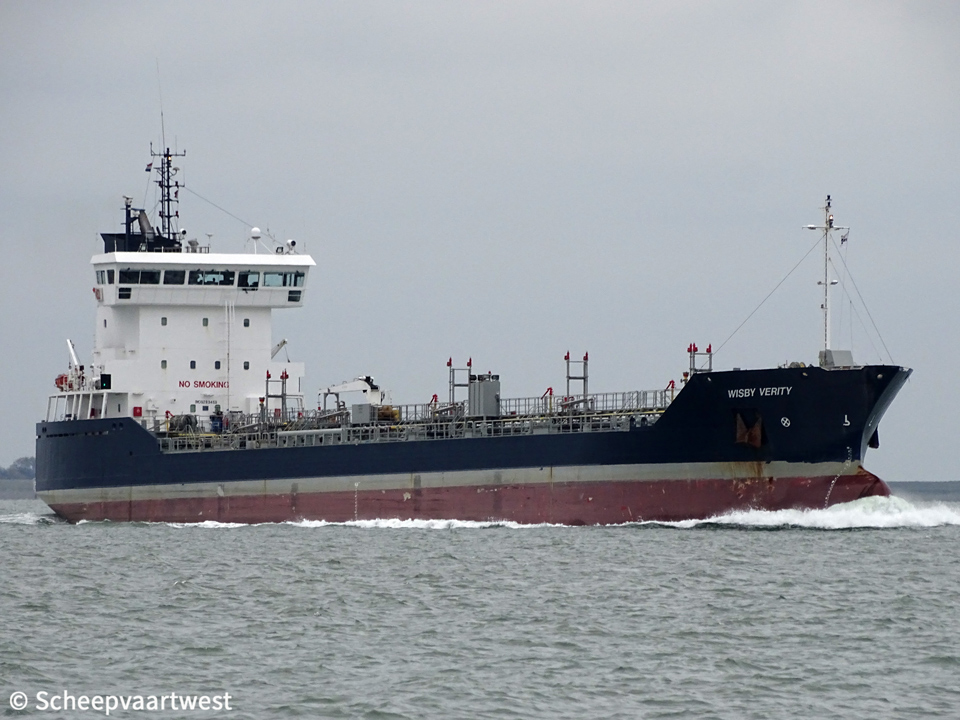

Wisby Verity 02

Westerschelde 25 October 2018

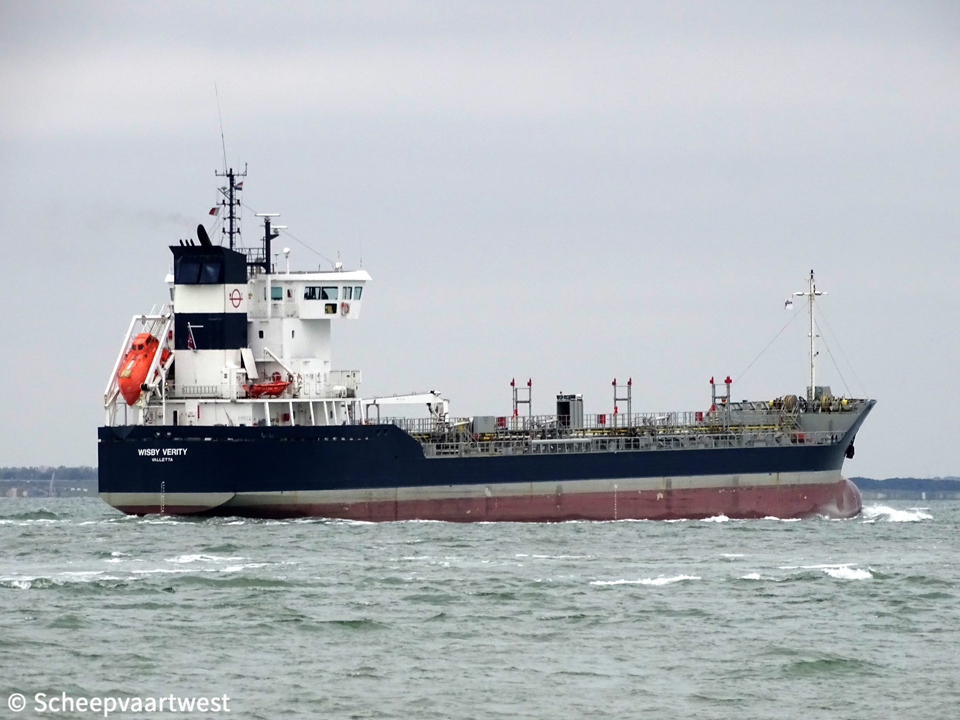

Wisby Verity 04   Wisby Verity 03
Westerschelde 25/10/18   WS 25/10/18













Name

WISBY VERITY

Type

Oil product tanker

IMO-number

9283459

Call sign

9HA4374

Flag

Malta

Port of registry

Valletta

Previous flags

2004 - 2013 Sweden, Visby - Call sign: SBJH

2013 - 2016 The Netherlands, Zuidlaren - Call sign: PCTJ

GT

4.295 t

DWT

Summer: 7.479 t

NT

2.141 t

Light ship

2.200 t

Length

116,35 m overall

110,09 m between perpendiculars

Breadth

15,11 m

Draught

Max: 6,75 m

Freeboard

2.559 mm

Depth

9,30 m moulded

Speed

14,2 knots laden

14,5 knots ballast

Built

2004

Date of completion

02/07/2004

Builder

Scheepswerf Ferus Smit B.V.

Westerbroek

The Netherlands

Yard number

344

Hull material

Special steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MaK 8L32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 bhp at 600 rpm

Build: 01/2004

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHR Norkem 204,00 m² - 10,0 bar

2x CHO AKB 32,07 m² - 10,0 bar

Generators

3x Volvo Penta D12 main diesel generatorsets each 487 kVA - 390 kW - 503 hp

Emergency generator

1x Diesel generatorset 54 kVA - 43 kW - 65 hp

Bow thruster

Berg pitch 260 kW

Cargo tank capacity

100% - 8.208 m³

98% - 8.046 m³

Segregations

5x Double valve

Pumps

FRAMO SD 150 - 300 m³/h

Loading Capacity

1.600 m³/h

Discharge capacity

1.200 m³/h

Tank capacities

Ballast: 3.104 m³

HFO: 193 m³

Diesel oil: 62 m³

Fresh water: 77 m³

Lifting equipment

1x Deck crane - SWL 1,5 t outreach 2,00 m

Manager

Wisby Tankers AB

Visby

Sweden

Operator

Wisby Shipmanagement AB

Owner

WT Tankers B.V.

Zuidlaren

The Netherlands

Previous owners

07/2004 - 08/2009 Ljugarn AB - Sweden

08/2009 - 04/2013 Wisby Tankers AB, Visby - Sweden

Latest data adjustment

28 May 2020
