Name |

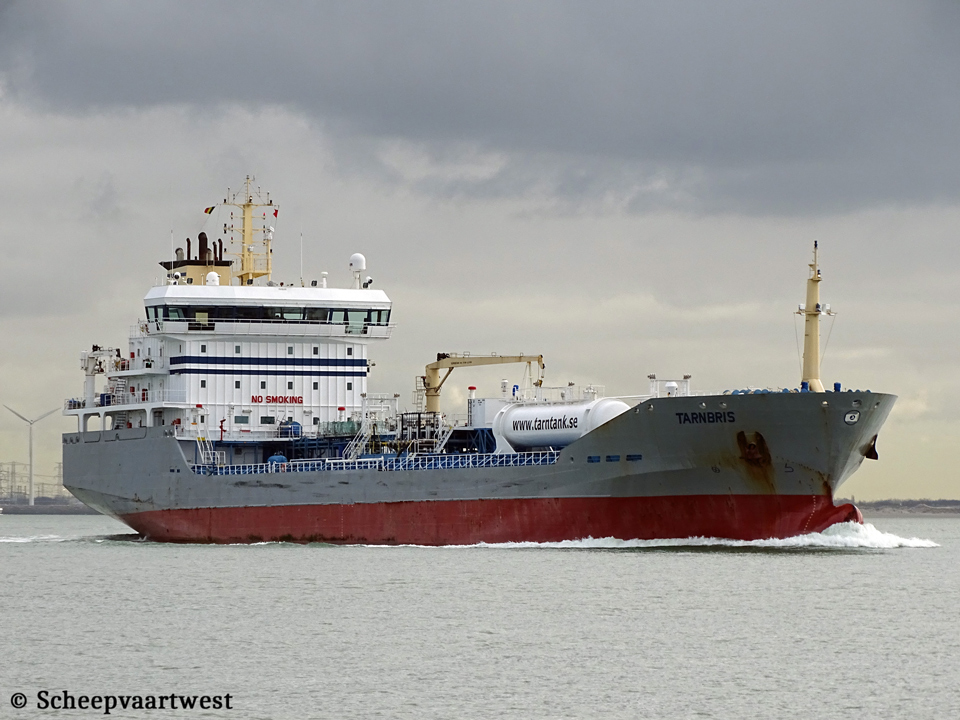

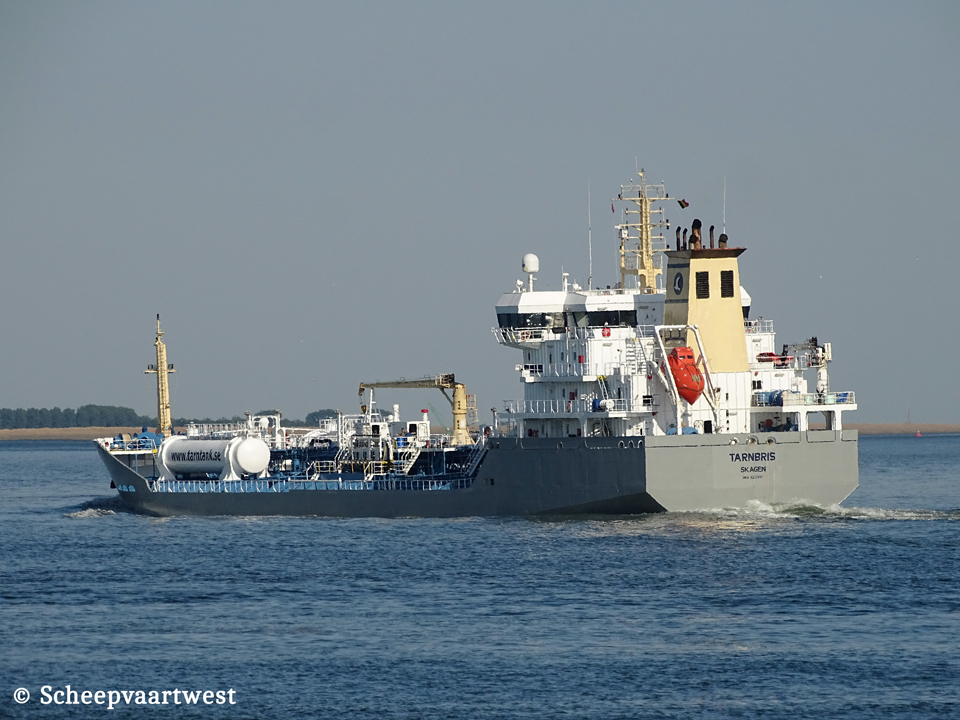

TARNBRIS |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9372652 |
|
Call sign |
OZDU2 |
|
Flag |
Denmark |
|
Port of registry |
Skagen |
|
Previous flags |
2007 - 2010 Norway - Call sign: LACR7 |
|
GT |
7.315 t |
|
DWT |
Summer: 11.288 t |
|
NT |
3.589 t |
|
Length |
129,50 m overall 122,00 m between perpendiculars |
|
Breadth |
19,80 m extreme |
|
Draught |
Summer: 8,15 m |
|
Keel to mast end |
34,00 m |
|
Depth |
10,40 m moulded |
|
Speed |
15,0 knots |
|
Built |
2007 |
|
Keel laid |
06/2006 |
|
Date of completion |
09/07/2007 |
|
Builder |
Selah Makina Sanayi ve Ticaret A.S. Tuzla Turkey |
|
Yard number |
49 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 9M32C - 4 stroke single acting 9 cylinder 320 x 480 mm combustion engine 4.500 kW / 6.118 bhp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm 4 blades - Diameter 4.800 mm |
|
Boilers |
2x Thermal oil heater, oil fired each 2.000 kW 1x Thermal oil heater, exhaust heated 600 kW |
|
Shaft generator |
1x AVK1750 - 1.600 kW |
|
Generators |
3x LIAG/MAN D-2842 LE -4 stroke 12 cylinder 128 x 142 mm diesel engines each Mcr 620 kW connected with generators each 592 ekW at 1.800 rpm |
|
Emergency generator |
1x LIAG/MAN D 2866 TE diesel generatorset 150 eKW at 1.800 rpm |
|
Bow thruster |
1x Schottel thruster type STT 330 T-LK - 530 kW at 1.770 rpm |
|
Number of tanks |
12 2x 6 Cargo-tanks divided P&S by centre bulkhead and building 6 natural segregation |
|
Cargo tank capacity 100% |
Tank 1 P +S: 1.130 m³ Tank 2 P +S: 2.110 m³ Tank 3 P +S: 2.370 m³ Tank 4 P +S: 2.370 m³ Tank 5 P +S: 2.360 m³ Tank 6 P +S: 2.110 m³ Total: 12.450 m³ 98%: 12.208 m³ |
|
Number of slob tanks |
1 |
|
Slop tank capacity 100% |
260 m³ |
|
Number of pumps |
12x Marflex type MDPD-100 electrically driven frequency controlled centrifugal cargo pumps each 250 m³/h 2x Marflex type MDPD-80 electrically driven frequency controlled centrifugal cargo pumps for deck tanks each 100 m³/ha 1x Marflex portable hydraulically driven pump for emergency discharge 70 m³/h 2x AZCUE centrifugal ballast pumps each 335 m³/h |
|
Tank capacities |
Ballast: 4.420 m³ HFO: 582 m³ Diesel oil: 90 m³ Sludge tank: 26 m³ Lub oil: 38 m³ Fresh water: 90 m³ Fresh Water for technical purpose: 172 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 50 mm |
|
Lifting equipment |
1x Gurdesan hose handling crane - SWL 5,0 t at 16,00 m 1x Gurdesan provision Crane - SWL 2,0 t at 7,00 mm |
|
Accommodation |
Living quarters situated aft with public rooms and recreation facilities 9x Single berth cabins for crew and 7 single berth cabins for officers |
|
Commercial manager |
Terntank Rederi A/S Vestre Strandvej 10 9990 Skagen Denmark |
|
ISM manager |
Tärntank Ship Management AB Donsö hamnväg 24 430 82 Donsö Sweden |
|
Registered owner |
Terntank Rederi A/S Vestre Strandvej 10 9990 Skagen Denmark |
|
Latest data adjustment |
20 January 2023 |
