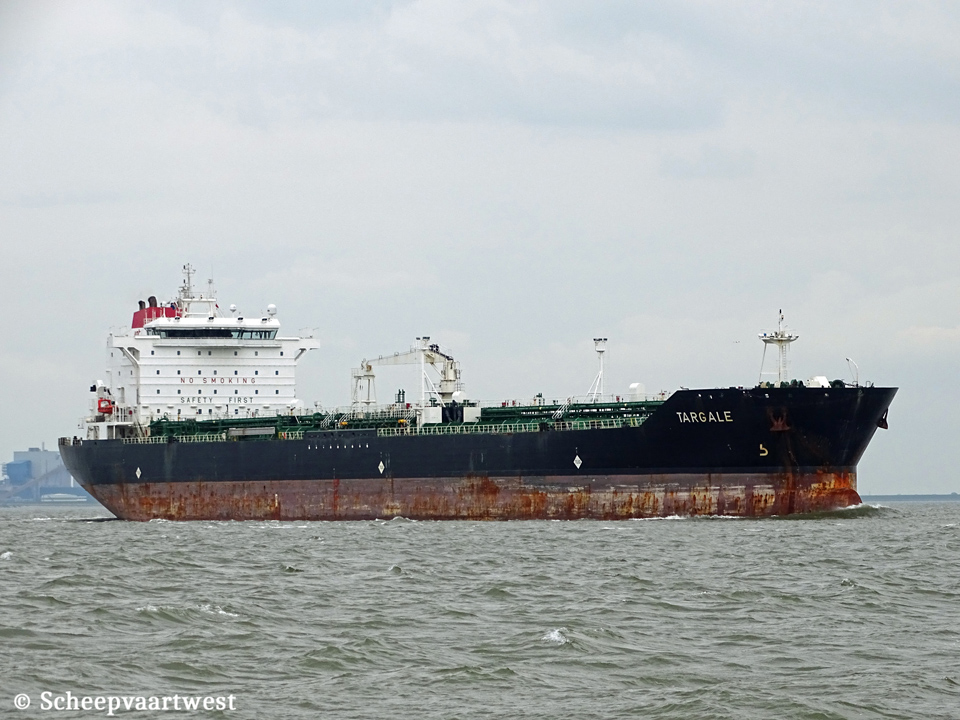

Targale IMO 9323340 01

Westerschelde 28 April 2018

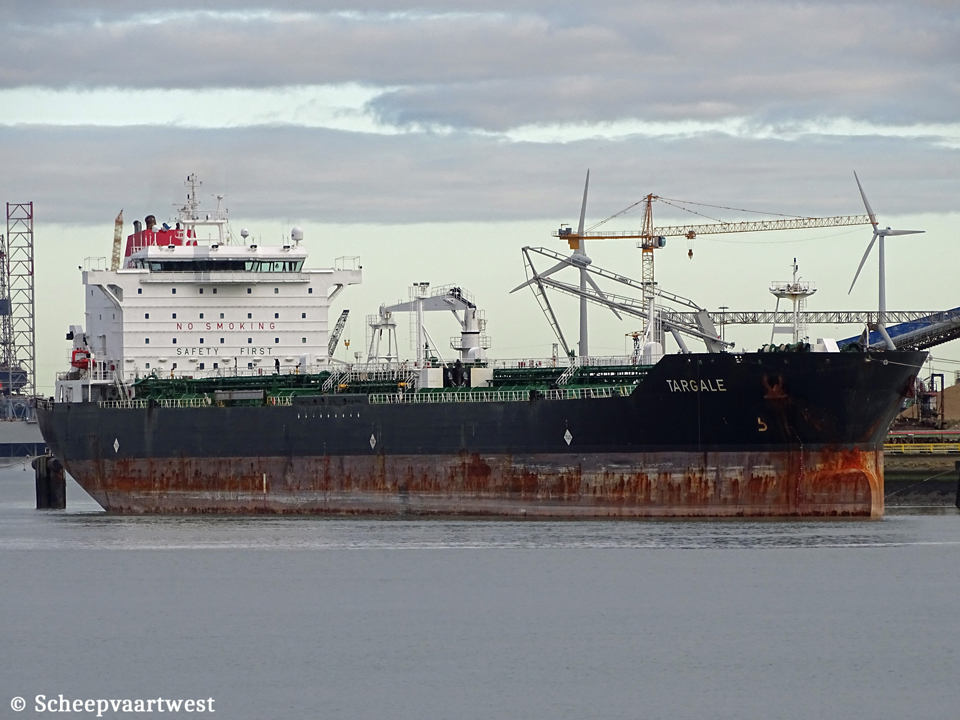

Targale IMO 9323340 02
Vlissingen 24/12/18


Name

TARGALE

Type

Tanker for oil and chemicals

IMO-number

9323340

Call sign

V7LN9

Flag

Marshall Islands

Port of registry

Majuro

GT

30.641 t registered

DWT

Summer: 52.660 t

NT

15.308 t registered

Length

195,16 m overall

187,30 m between perpendiculars

Breadth

32,24 m extreme

Draught

Summer: 12,50 m

Keel to mast end

47,00 m

Depth

17,80 m moulded

Speed

Service: 14,0 knots

Built

2007

Keel laid

03/06/2006

Launch date

18/11/2006

Date of completion

06/03/2007

Builder

3 Maj Brodogradiliste d.d.

Rijeka

Croatia

Yard number

698

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Wärtsilä 7RTA48T-B - 2 stroke 7 cylinder 480 x 2.000 mm combustion engine 9.650 kW / 13.120 kW at 127,0 rpm

Manufacturer: Wärtsilä Services Switzerland AG

Propellers

1x Fixed pitch mono-block propeller

Manufacturer: Wärtsilä Propulsion

Boilers

2x Auxiliary boiler, oil/gas fired KLN/VIC-10/8

1x Auxiliary boiler, exhaust gas heated KIP/DV-1.5/8

Manufacturer: Saacke Marine Systems, Zagreb - Croatia

Generators

3x MAN 6L23/30H - 4 stroke 6 cylinder 225 x 300 diesel egnie each 1.010 kW connected with generators each 960 ekW

Number of cargo tanks

12 + 2 slop tanks

Cargo tank capacity 98%

56.150,7 m³

Number of slop tanks

2

Slop tank capacity 98%

1.348,3 m³

Total capacity 98%

57.728,8 m³

Pumps

14x Hydraulic deepwell cargo pumps:

12x Centrifugal pumps capacity 550 m³/h each

2x Centrifugal pumps capacity 300 m³/h each

Tank capacities

Fuel oil: 1.559,3 m³

Diesel oil: 183,9 m³

Ballast: 23.850,4 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Lifting equipment

2x Crane - SWL 10,0 t

Crew

21

ISM & commercial manager

LSC - Latvian Shipping Company Shipmanagement Sia.

Sporta iela 11

Riga, LV-1013

Latvia

Registered owner

Stende Navigation Inc.

Care of JSC Latvian Shipping Co (Latvijas Kugnieciba), Sporta iela 11

LV-1013 Riga

Latvia

Latest data adjustment

11 March 2022
