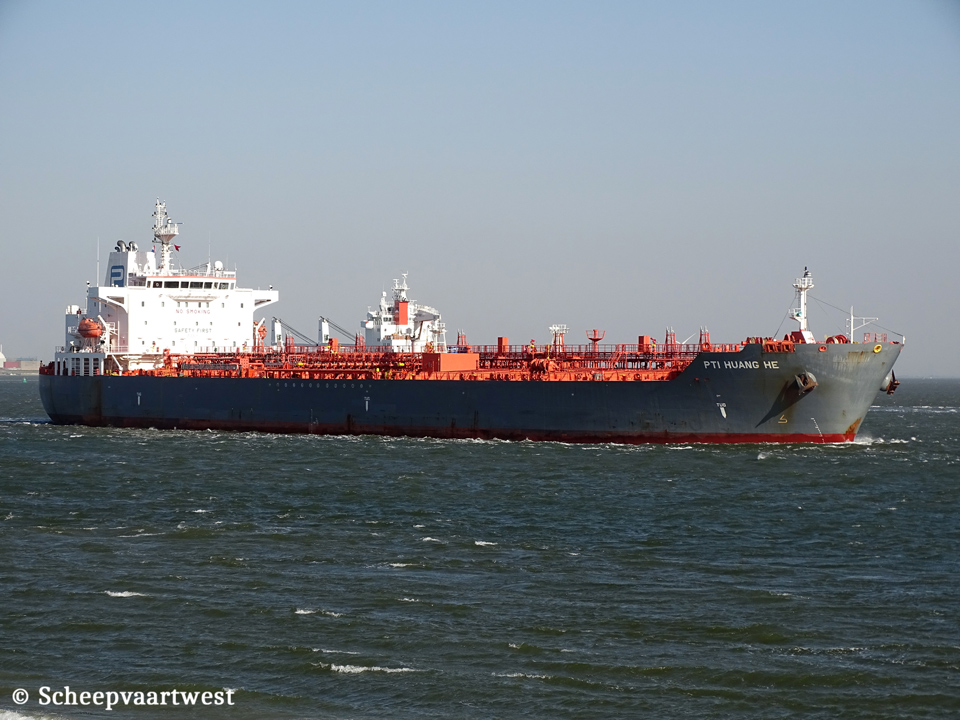

PTI Huang He IMO 9747340 02

Westerschelde 20 April 2020



PTI Huang He IMO 9747340 01
Westerschelde 20/04/20













Name

PTI HUANG HE

Type

Chemical and oil product tanker

IMO-number

9747340

Call sign

VRQD8

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

29.557 t

DWT

49.999 t

NT

13.741 t

Length

183,05 m overall

174,07 m between perpendiculars

Breadth

32,23 m extreme

Draught

Summer: 13,27 m

Depth

19,10 m

Speed

14,5 knots

Built

2016

Keel laid

16/12/2015

Launch date

29/07/2016

Date of completion

02/11/2016

Builder

SPP Shipbuilding Co., Ltd.

Tongyeong

South Korea

Yard number

S1191

Hull material

Steel

Hull type

Double bottom with hopper

Double side

Main engine

1x HHI/MAN-B&W 6S50ME-B9 - 6 cylinder combustion engine 7.260 kW

Propellers

1x Fixed mono-block propeller

Boilers

1x Auxiliary boiler, composite

1x Auxiliary boiler, oil/gas fired

Generators

3x Yanmar 6EY22ALW main diesel generatorsets each 800 kW

Emergency generator

1x Cummins diesel generatorset

Number of cargo tanks

12

Cargo tank capacity

51.751 m³

Tank capacities

Ballast: 22.462 m³

Anchor equipment

Length: 631,70 m

Diameter: 73 mm

Manager

Parakou Shipmanagement Pte Ltd.

Unit No. 1008-1012, China Merchants Tower, Shun Tak Centre

168-200 Connaught Road Central

Hong Kong

Registered owner

Ocean Universe Shipping Limited

Latest data adjustment

24 March 2021
