Westerschelde 05 March 2018 |
 |
| Westerschelde 15/03/18 |
|
Name |

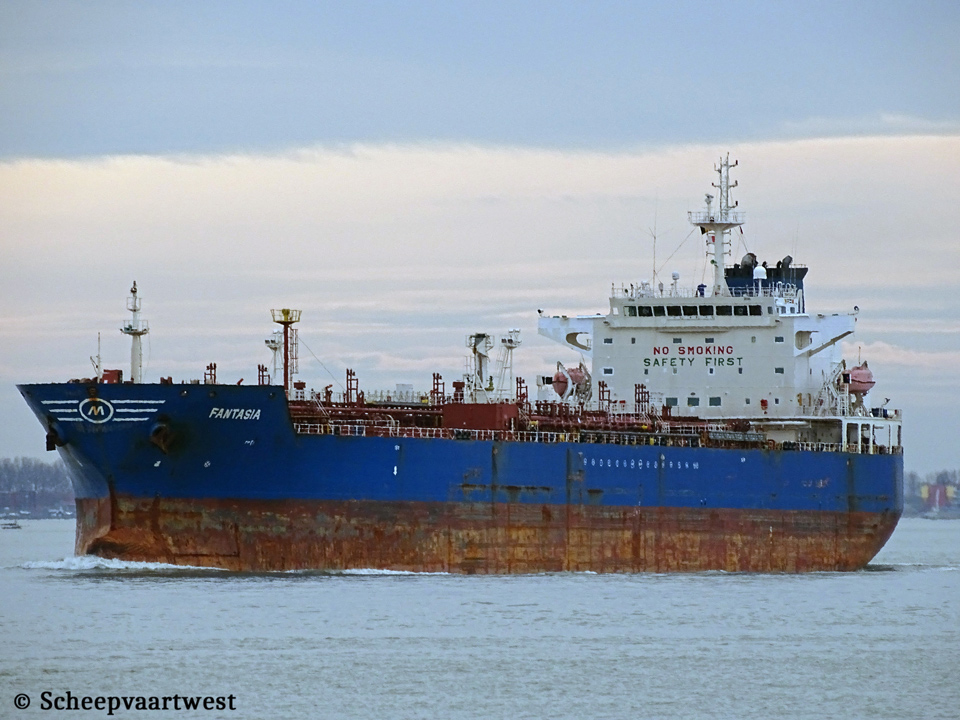

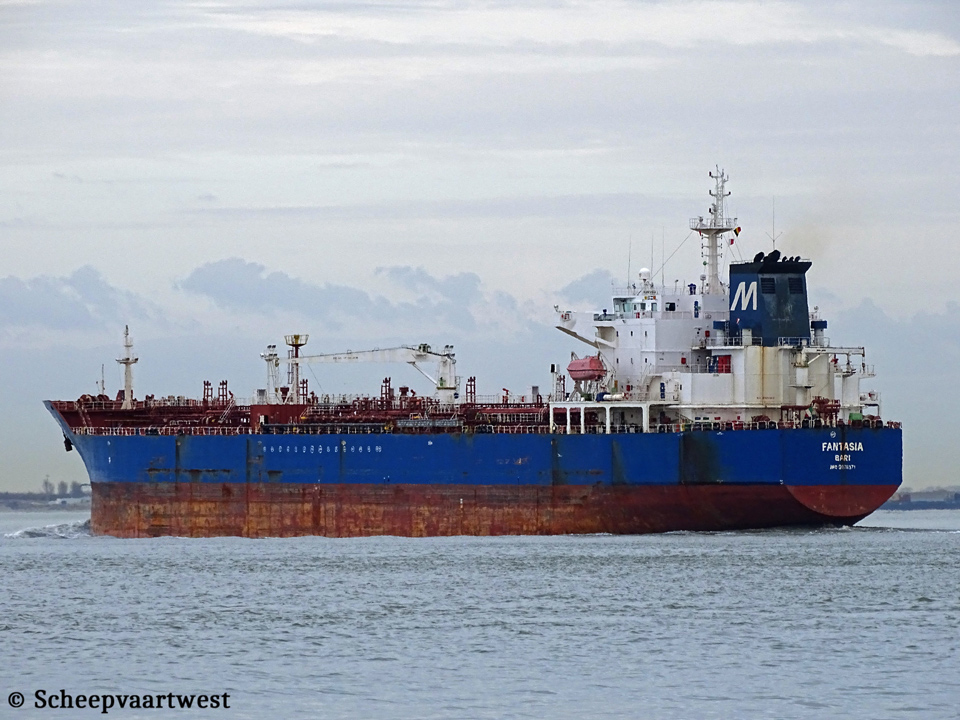

FANTASIA |
|
Type |
Oil and chemical tanker |
|
IMO-number |
9378371 |
|
Call sign |
ICJY |
|
Flag |
Italy |
|
Port of registry |
Bari |
|
GT |
29.614 t Suez: 31.090,44 t |
|
DWT |
Summer: 51.433,5 t |
|
NT |
13.749 t Panama: 24.584 t Suez: 27.247,46 t |
|
Displacement |
61.631,2 t |
|
Length |
182,98 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 11,87 m |
|
Keel to mast end |
49,20 m |
|
Freeboard |
5.995 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Max: 15,0 knots |
|
Built |
2009 |
|
Keel laid |
17/09/2009 |
|
Launch date |
30/10/2009 |
|
Date of completion |
23/12/2009 |
|
Builder |
SLS Shipbuilding Head Office 227 Donam-Dong Tongyeong Gyeongnam, 650-150 South Korea |
|
Yard number |
S 486 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Doosan/MAN-B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kw at 127,0 rpm Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Silla Metal Co., Ltd. |
|
Boilers |
1x Auxiliary watertube boiler Mission OL - 9,0 bar 1x Fired exhaust gas boiler(Composite Type) Mission OC - 9,0 bar |
|
Generators |
4x Main diesel generatorsets each 740 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of tanks |
12 |
|
Cargo tank capacity |
53.851,00 m³ including slop tanks |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.930,00 m³ |
|
Pumps |
12x Cargo pumps each 600 m³/h 2x Ballast pumps each 800 m³/h |
|
Manifolds |
Bow to centre manifolds: 90,60 m Stern to centre manifolds: 90,00 m |
|
Tank capacities |
Hydraulic oil: 19,40 m³ Fresh water: 363,80 m³ Lub oil: 128,20 m³ Diesel oil: 242,30 m³ Ballast: 22.926,50 m³ Fuel oil: 1.614,30 m³ |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t 1x Engine room crane - SWL 2,5 t 1x Provision crane - SWL 3,0 t |
|
Operator |
Millenia Maritime Inc. Eleftheriou Venizelou str 13 Glifada 166 75 Greece |
|
Registered owner |
Morfini Spa. Via Beata Elia Di San Clemente 225 Bari, 70122 Italy |
|
Latest data adjustment |
02 February 2021 |
