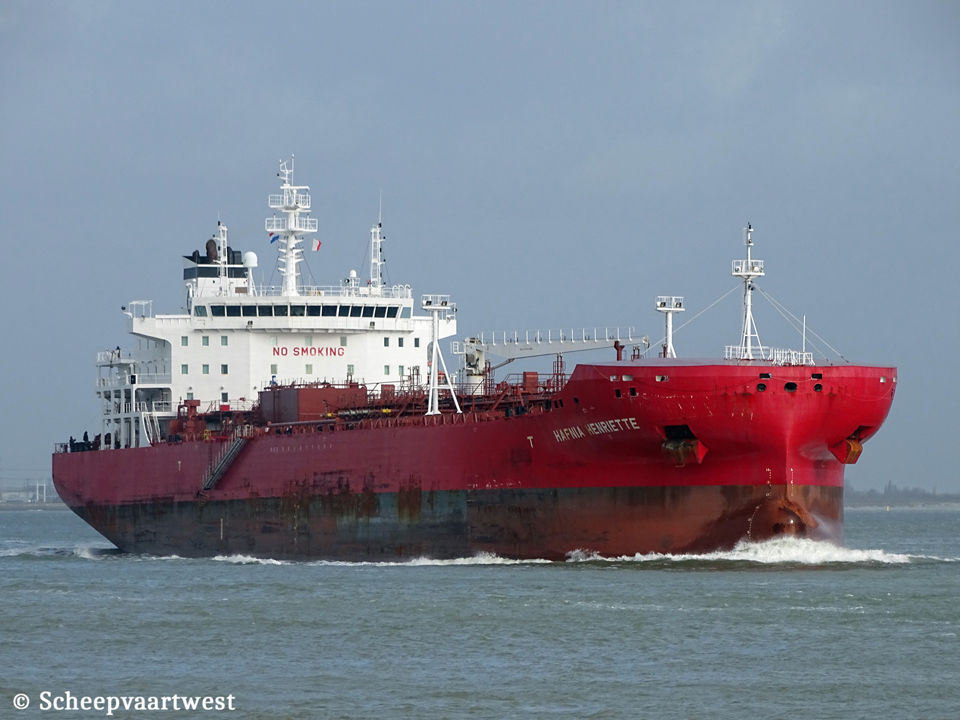

Hafnia Henriette IMO 9726607 01

Westerschelde 25 March 2019

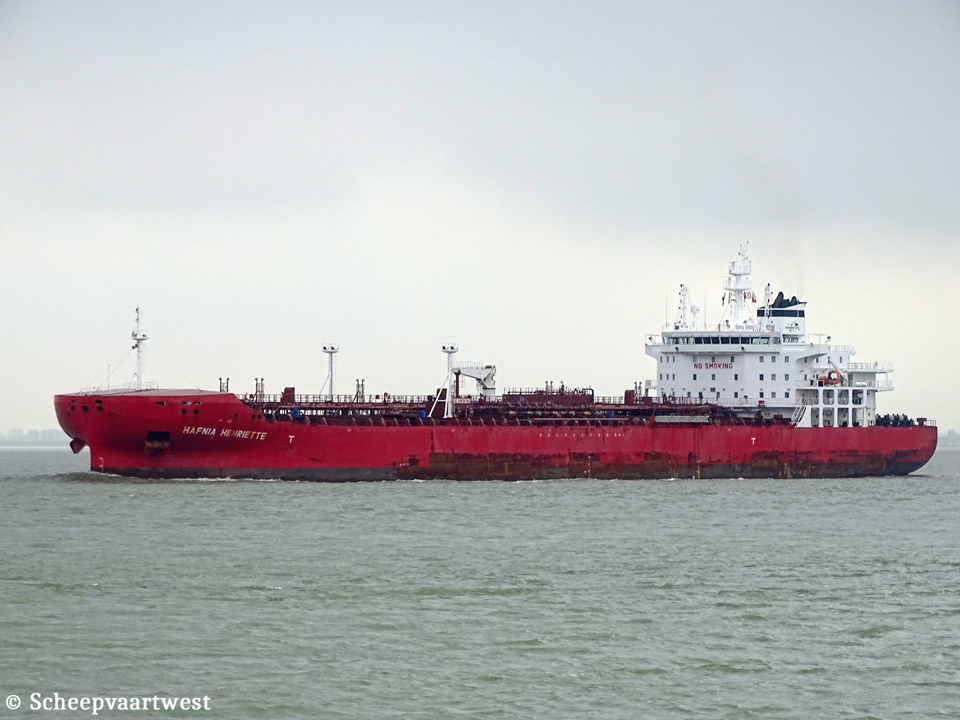

Hafnia Henriette IMO 9726607 02
Westerschelde 20/03/19


Name

HAFNIA HENRIETTE

Type

Tanker for oil and chemicals

IMO-number

9726607

Call sign

9HA4204

Flag

Malta

Port of registry

Valletta

GT

29.658 t

Suez: 30.415,32 t

DWT

Summer: 49.999,0 t

Winter: 48.521,1 t

NT

14.414 t

Suez: 26.158,63 t

Panama: 24.954 t

Displacement

Summer: 60.916,0 t

Winter:: 59.480,8 t

Length

183,20 m overall

178,44 m between perpendiculars

Breadth

32,26 m extreme

Draught

Summer: 12,84 m

Winter: 12,57 m

Keel to masthead

45,28 m

Air draft

Summer deadweight: 41,42 m

Normal ballast: 37,39 m

Lightship: 42,31 m

Freeboard

Summer: 5.371 mm

Winter: 5.639 mm

Depth

18,19 m moulded

Speed

Ballast: Max: 15,0 knots - Economic: 12,0 knots

Laden: Max: 14,0 knots - Economic: 12,0 knots

Built

2016

Keel laid

09/10/2015

Launch date

25/01/2016

Date of completion

28/06/2016

Builder

Guangzhou Shipyard International Company Limited

Guangzhou

China

Yard number

13130043

Hull material

Steel

Hull type

Double bottom with hopper

Double side

Main engine

1x Hudong/MAN-B&W 6S50ME-B9 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 7.628 kW / 10.371 hp at 99,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired - Aalborg OL

1x Auxiliary boiler, composite - Aalborg OC

Manufacturer: Alfa Laval Aalborg A/S

Generators

3x Daihatsu 6DK-20e main diesel generatorsets each 900 kW

Manufacturer: Daihatsu Diesel Mfg. Co. Ltd Moriyama Division

Emergency generator

1x Cummins 6CTA-8.3-D(M) diesel generatorset

Number of cargo pumps

10

Cargo tank capacity 98%

1P/S: 7.027,8 m³

2P/S: 9.651,2 m³

3P/S: 9.946,6 m³

4P/S: 9.947,2 m³

5P/S: 9.819,6 m³

Total: 46.391,4 m³

Number of slop tanks

2

Slop tank capacity 98%

6.977,1 m³

Number of pumps

2x Centrifugal ballast pumps each 800 m³/h

12x Centrifugal cargo pumps each 550 m³/h

Manifolds

Distance bridge front to centre of manifold: 61,60 m

Bow to centre manifold: 89,60 m

Stern to centre manifold: 93,60 m

Distance between cargo manifold centres: 2.010 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 1.102 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Ballast: 21.303,9 m³

Fuel oil: 1.400 m³

Diesel oil: 177 m³

Gas oil: 490 m³

Anchor equipment

Length: 638,20 m

Diameter: 73 mm

Lifting equipment

1x Crane - SWL 10,0 t

Crew size

30

ISM & commercial manager

Thome Croatia d.o.o.

7 Domobranske Pukovnije 1

23000 Zadar

Croatia

Registered owner

Hafnia Tankers Shipholding Alpha Pte. Ltd.

10 Pasir Panjang Road, #18-01, Mapletree Business City, Singapore 117438

Republic of Singapore

Disponent owner

Hafnia Pools Pte. Ltd.

Mapletree Business City 10 Pasir Panjang Road #18-01 Singapore 117438 Singapore

Republic of Singapore

Latest data adjustment

12 June 2022
