Westerschelde 26 June 2020 |
 |
| Westerschelde 26/06/20 |
|
Name |

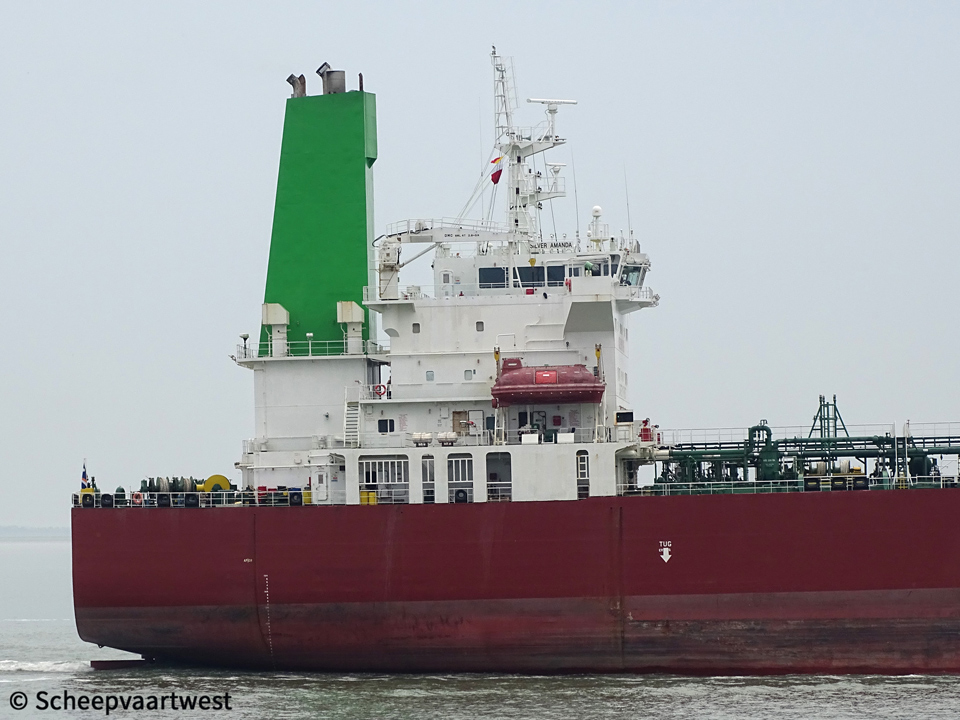

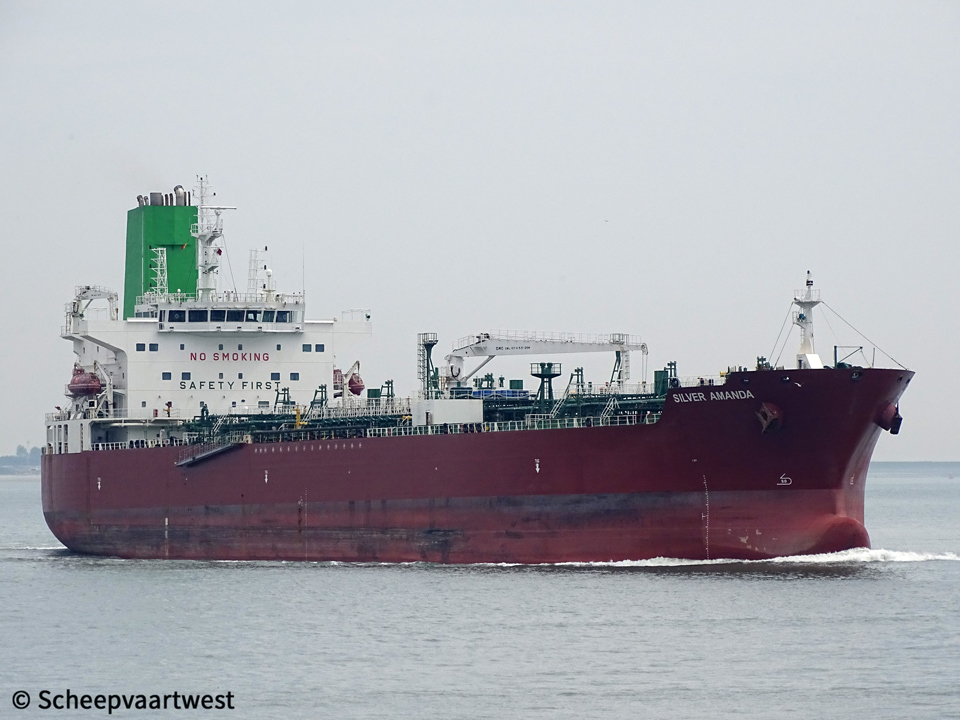

SILVER AMANDA |
|
Type |
Chemical carrier and oil product tanker |
|
IMO-number |
9682394 |
|
Call sign |
V7EU4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
29.553 t registered Suez: 30.741,41 t |
|
DWT |
Summer: 49.746 t |
|
NT |
13.632 t registered Suez: 26.631,17 t Panama: 24.534 t |
|
Displacement |
60.305 t |
|
Length |
183,06 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,28 m |
|
Reg. dimensions L x B x D |
175,27 x 32,20 x 19,10 m |
|
Rule dimensions L x B x D |
172,69 x 32,20 x 19,10 m |
|
Freeboard |
5.852 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Max: 14,1 knots |
|
Built |
2014 |
|
Keel laid |
02/05/2014 |
|
Launch date |
24/06/2014 |
|
Delivery date |
23/09/2014 |
|
Builder |
Hyundai Mipo dockyard Co. Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2401 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHI/MAN-B&W 6G50ME-B9.3 - 2 stroke single acting 6 cylinder 500 x 2.500 mm combustion engine 7.700 kW at 93,4 rpm Build: 04/2014 Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Auxiliary boiler WTB - 9,0 MPa Heating surface: 37,2 m³ 2x Composite boiler CPB - 9,0 MPa Heating surface: 216,0 m² Build: 04/2014 Manufacturer: Kangrim Heavy Industries Co., Ltd., Changwon - South Korea |
|
Generators |
3x Hyundai/Himsem 6H21/32 - 4 stroke 6 cylinder 210 x 320 mm diesel engines each 960 kW connected with generators each 900 ekW / 1.125 kVA - 450 Volt Manufacturer: HHI Electro Electric System |
|
Cargo tank capacity |
52.632,70 m³ |
|
Pumps |
12x Cargo pumps each 600 m³/h |
|
Tank capacities |
Fresh water: 255,20 m³ Fuel oil: 1.426,50 m³ Lube oil: 115,70 m³ Hydraulic oil: 17,90 m³ Ballast: 22.216,6 m³ Diesel oil: 219,4 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
23 |
|
Manager |
Sinokor Petrochemical Co., Ltd. Haeanam Building 21 21 Bukchang-dong, Jung-gu Seoul South Korea |
|
Technical manager |
Fleet Management Limited Hong Kong |
|
Registered owner |
Ocean Tianxian Shipping Ltd. |
|
Latest data adjustment |
20 October 2020 |
