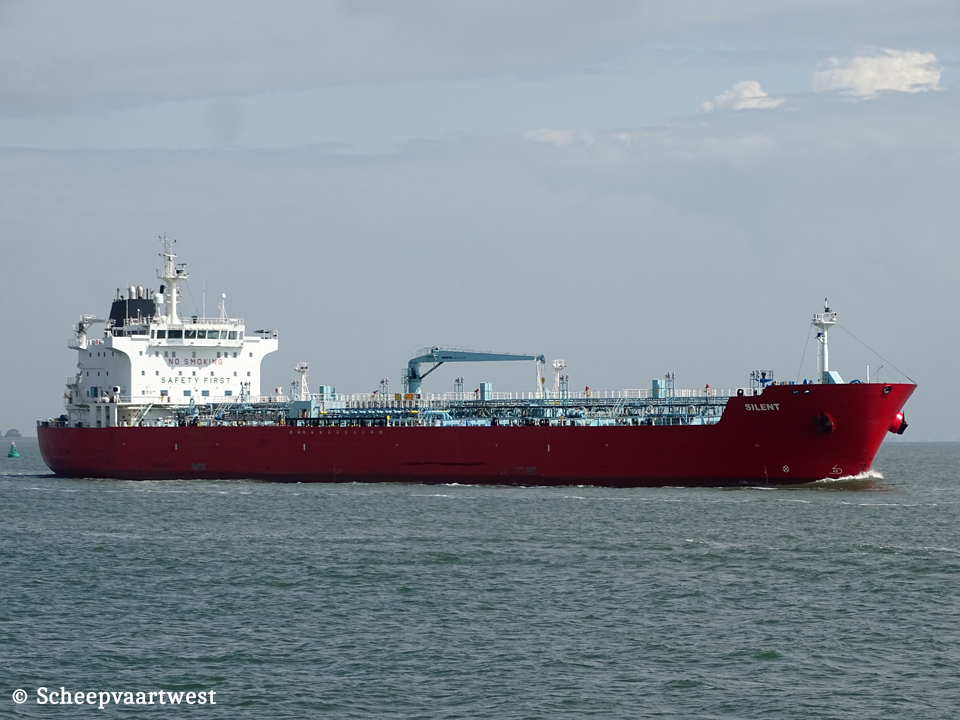

| Westerschelde 01 August 2019 |
|
Name |
SILENT |
|
Previous names |
10/2007- 08/2013 Carry |
|
Type |
Chemical & oil tanker - Handysize |
|
IMO-number |
9377652 |
|
Call sign |
V7IJ8 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2007 - 2017 Malta, Valletta - Call sign: 9HBF9 |
|
GRT |
23.248 t |
|
DWT |
37.847 t |
|
NRT |
9.915 t |
|
Length |
184,32 m overall |
|
Breadth |
27,400 m moulded |
|
Draught |
Summer: 11,52 m |
|
Moulded L x B x D |
176,00 x 27,40 x 17,20 m |
|
Registered L x B x D |
176,00 x 27,40 x 17,20 m |
|
Keel to mast end |
46,87 m |
|
Freeboard |
5.713 mm |
|
Depth |
17,20 m moulded |
|
Speed |
Service: 14,5 knots Max: 15,7 knots |
|
Built |
2007 |
|
Keel laid |
31/05/2007 |
|
Launch date |
10/09/2007 |
|
Date of completion |
08/10/2007 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2023 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hyundai 6S46MC-C - 2 stroke single acting 6 cylinder 500 x 2000 mm combustion engine 9.480 kW at 127,0 rpm Builder: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 570 mm |
|
Propellers |
1x Mono-block fixed pitch propeller Builder: Hyundai Heavy Industries Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Builder: Kangrim Heavy Industries Co.,Ltd. - South Korea |
|
Shaft generator |
3x Yanmar 6N21AL-EV main diesel generatorsets each 735 kW |
|
Generators |
1x Cummins NT-855-D(M) diesel generatorset |
|
Bow thruster |
1x Kawasaki KT-88B3F - 900 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 42.687,8 m³ |
|
Slop tank capacity |
879 m³ |
|
Number of pumps |
10 Framo Deepwell cargo pumps each 500 m³/h 2x Framo Deepwell cargo pumps each 300 m³/h 2x Framo Deepwell cargo pumps each 200 m³/h 2x Ballast pumps each 750 m³/h |
|
Tank capacities |
Ballast: 17.879 m³ Fuel oil: 1.305,6 m³ Fresh water: 183,3 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
23 |
|
ISM & commercial manager |
Interunity Management Corp S.A. 2, Eptanisou Street, Chalandri 152 31 Athens Greece |
|
Registered owner |
Chem Galaxy Shipping And Trading Co. S.A. |
|
Latest data adjustment |
26 January 2023 |
