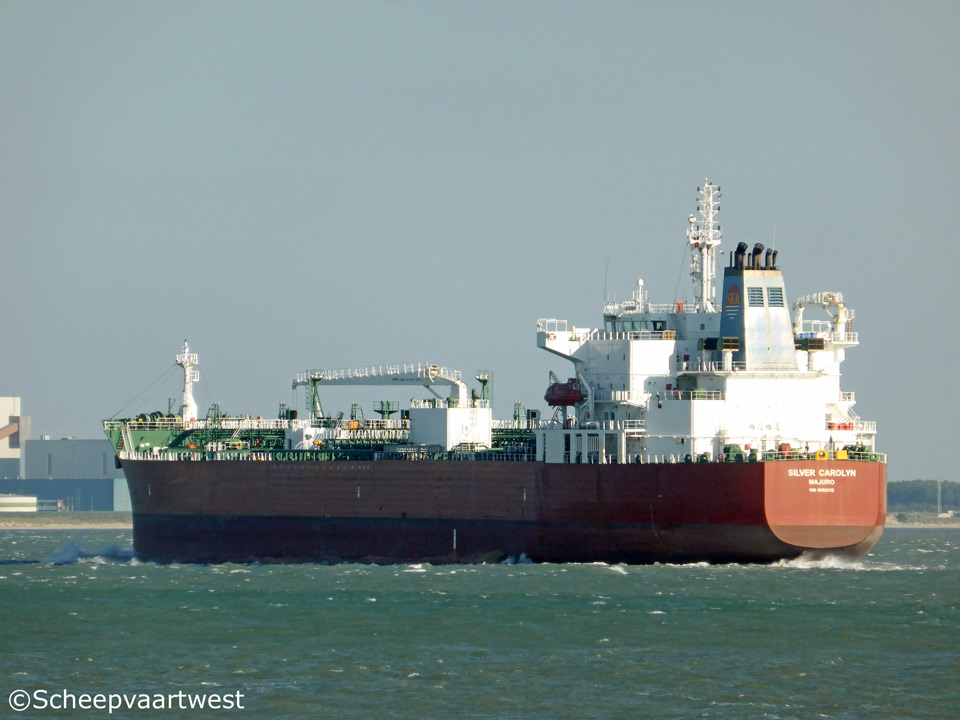

Silver Carolyn 01

Westerschelde 01 October 2015



Name

SILVER CAROLYN

Type

Oil and chemical carrier

IMO-number

9682370

Call sign

V7HE9

Flag

Marshall islands

Port of registry

Majuro

GT

29.460 t registered

Suez: 30.648,1 t

DWT

Summer: 49.746 t

NT

13.632 t registered

Panama: 24.459 t

Suez: 26.538,27 t

Length

183,06 m overall

Breadth

32,20 m moulded

Draught

13,27 m

Reg. dimensions L x B x D

175,27 x 32,20 x 19,10 m

Rule dimensions L x B x D

172,69 x 32,20 x 19,10 m

Freeboard

5.852 mm

Depth

19,10 m moulded

Speed

14,28 knots

Built

2014

Keel laid

10.03.2014

Launch date

28.04.2014

Delivery date

01.08.2014

Builder

Hyundai Mipo Dockyard Co. Ltd.

Ulsan
South Korea

Yard number

2399

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 5

Oil tight: 7

Main engine

1x Hyundai 6G50ME-B9.3 - 2 stroke single acting 6 cylinder 500 x 2.500 combustion engine 7.700 kW at 93,4 rpm

Built: 02.2014

Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

2x Composite boiler - 8,83 bar

Heating surface: 37,2 m²

1x Auxiliary water tube boiler- 8,83 bar

Heating surface: 216,0 m²

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12

Cargo tank capacity 100%

52.632,7 m³

Number of slop tanks

3

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Diesel oil: 4

Waste water: 3

Sludge: 3

Chain: 2

Fresh water: 2

Fixed ballast liquid: 1

Hydraulic oil: 1

Tank capacities 100%

Diesel oil: 219,4 m³ / 197,46 t

Fresh water: 255,2 m³

Hydraulic oil: 17,9 m³ / 16,11 t

Lube oil: 115,7 m³ / 104,13 t

Fuel oil: 1.426.5 m³ / 1.412,23 t

Tank ballast: 22.216,6 m³ / 22.772,01 t

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane - 4,0 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Manager

Sinokor Petrochemical Co., Ltd. (Sinokor Merchant Marine)
10F Haenam Building Taepyeongn

64 Sejong-daero Jung-gu

Seoul, 04526

South Korea

Technical manager

Columbia Shipmanagement (Deutschland) GmbH
Grosse Elbstrasse 275
D-22767 Hamburg
Germany

Registered owner

Ocean Tiansu Shipping Limited

Latest data adjustment

06 August 2017
