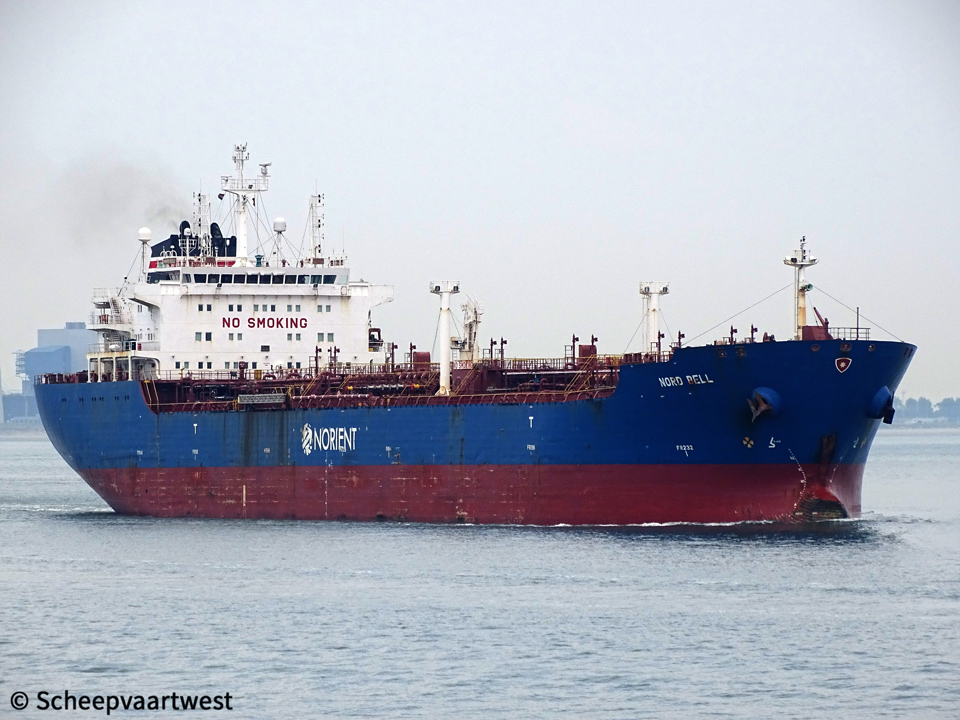

Nord Bell 02

Westerschelde 26 June 2020

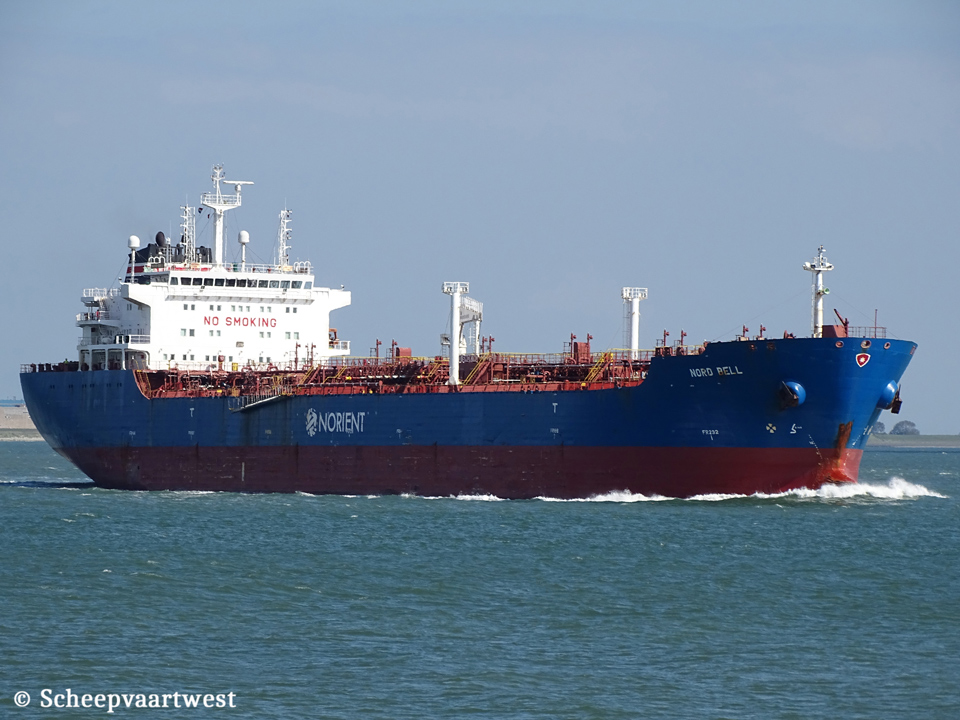

Nord Bell 01
Westerschelde 25/06/20













Name

NORD BELL

Type

Oil product tanker

IMO-number

9309980

Call sign

OVSH2

Flag

Denmark

Port of registry

Kobenhavn

GT

24.048 t

Suez: 25.359,08 t

DWT

Summer: 38.431,39 t

Winter: 37.340,00 t

NT

11.089 t

Suez: 21.583,24 t

Panama: 11.089 t

Displacement

Summer: 47.849 t

Winter: 46.728 t

Length

182,85 m overall

174,52 m between perpendiculars

Breadth

27,43 m extreme

Draught

Summer: 11,62 m

Winter: 11,38 m

Keel to masthead

44,00 m

Air draft

Summer deadweight: 32,38 m

Normal ballast: 37,00 m

Lightship: 4,23 m

Freeboard

Summer: 5.220 mm

Winter: 4.460 mm

Depth

16,80 m moulded

Speed

14,0 knots

Built

2007

Keel laid

13/09/2006

Launch date

11/12/2006

Date of completion

06/04/2007

Builder

Guangzhou Shipyard International Company Limited

Guangzhou

China

Yard number

03130018

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/Dalian 6S50MC-C MK. VII - 2 stroke 6 cylinder combustion engine 9.480 kW at 129,0 rpm

Propellers

1x Fixed mono-block propeller

Boilers

1x Auxiliary boiler, exhaust gas heated AQ 2

1x Auxiliary boiler, oil/gas fired AQ-18

Generators

3x MAN-B&W 6L23/30H 4 stroke 6 cylinder 225 x 300 main diesel engines each 980 kW connected with generators each 960 kW

Bow thruster

1x 750 kW / 1.020 bhp

Number of cargo tanks

10

Cargo tanks capacity 98%

37.963,2 m³

Capacity (98%) of each natural segregation

Seg#1: 6.395,91 m³ (1P + 1S)

Seg#2: 15.325,63 m³ (2P + 2S + 6P (slop) +6S (slop))

Seg#3: 7.306,28 m³ (3P + 3S)

Seg#4: 7.306,28 m³ (4P + 4S)

Seg#5: 7.291,13 m³ (5P + 5S)

Number of slop tanks

5

Slop tank capacity 98%

5.662,04 m³

Pumps

2x Centrifugal ballast pumps each 1.000 m³/h

10x Centrifugal cargo pumps each 540 m³/h

2x Centrifugal cargo pumps each 300 m³/h

1x Centrifugal cargo pump 70 m³/m²

Manifolds

Distance bridge front to centre of manifold: 58,30 m

Bow to centre manifold: 91,6 m

Stern to centre manifold: 91,70 m

Distance between cargo manifold centres: 2.010 mm

Distance ships rail to manifold: 4.300 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 600 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.355,24 m³

Diesel oil: 143.98 m³

Anchor equipment

Length: 632,50 m

Diameter: 68 mm

Technical operator

Norden Synergy Ship Management A/S

Strandvejen 52

2900 Hellerup

Denmark

Commercial operator

Norient Poll ApS

Strandvejen 52

DK-2900 Hellerup

Denmark

Registered owner

Dampskibsselskabet Norden A/S

Strandvejen 52

DK-2900 Hellerup

Denmark

Latest data adjustment

18 September 2020
