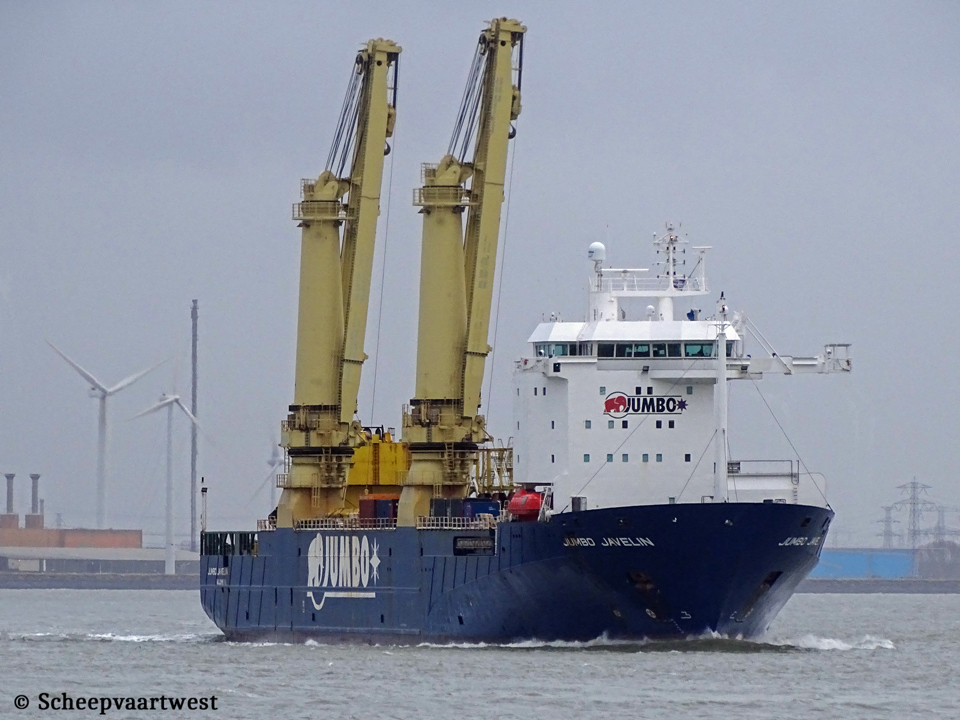

Jumbo Javelin IMO 9243837 03

Westerschelde 13 February 2020

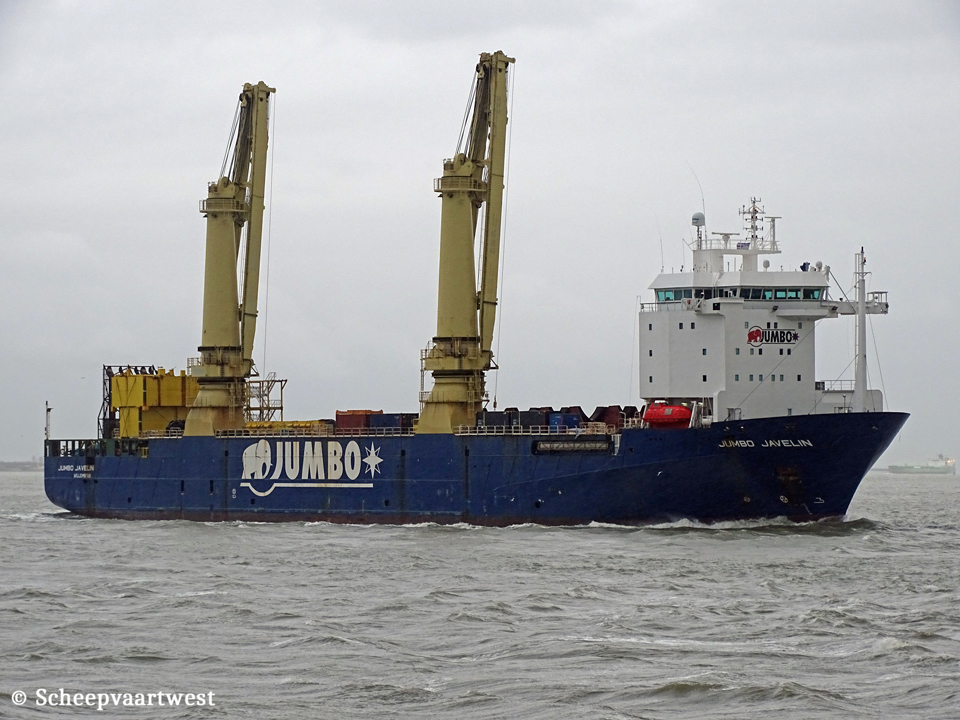

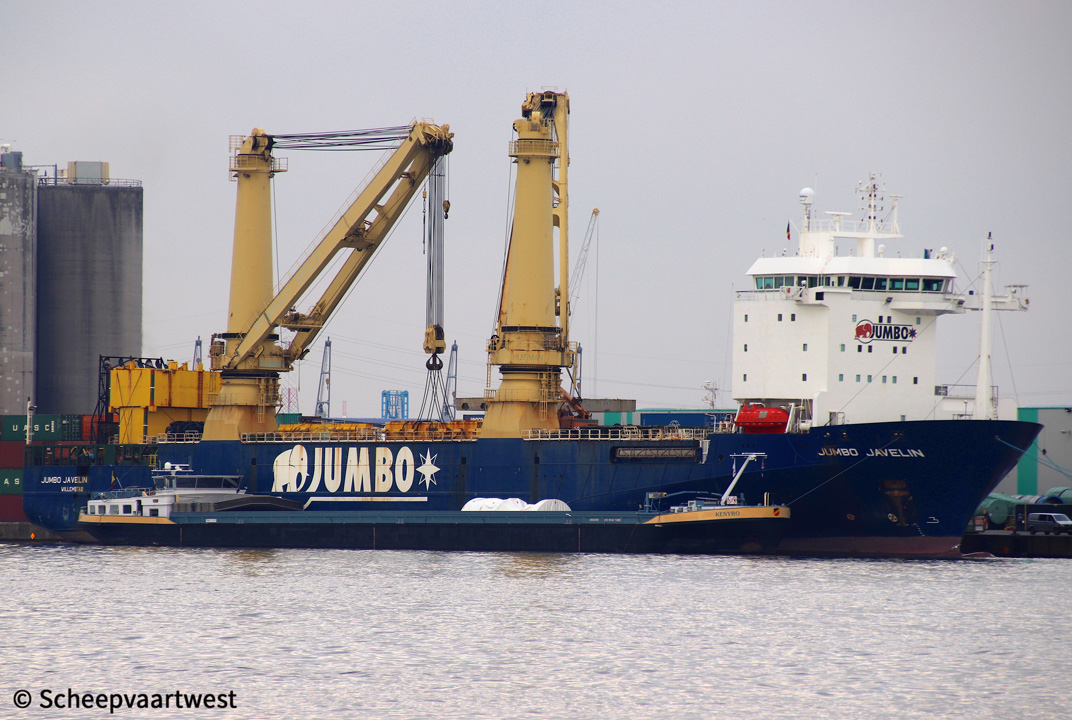

Jumbo Javelin IMO 9243837 04   Jumbo Javelin 02   Jumbo Javelin 01
Westerschelde 13/02/20 Antwerpen 06/02/20 Antwerpen 06/02/20









Name

JUMBO JAVELIN

Type

General cargo ship - Heavy load carrier

IMO-number

9243837

Call sign

PHEG

Flag

The Netherlands

Port of registry

Willemstad

Previous flags

2004 - 2006 Netherlands Antilles,Willemstad- Call sign: PJFR

GT

15.022 t registered

DWT

10.942 t

NT

4.502 t registered

Displacement

20.120 t

Number of 20ft containers

426

Length

144,10 m overall

133,80 m between perpendiculars

Breadth

26,70 m extreme

Draught

Max: 6,50 m

Depth

14,10 m to main deck

Speed

Max: 17,2 knots

Economic: 14,0 knots

Built

2004

Launch date

2004

Date of completion

02/2004

Builder

Damen Shipyards Galati (Santierul Naval Damen Galati S.A.)

Galatz

Romania

Yard number

9101

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x MAN-B&W 9L32/40 - 4 stroke single acting 9 cylinder 320 x 400 mm combustion engines each 4.320 kW / 5.873 hp at 750 rpm

Propellers

2x Wärtsilä controllable pitch propellers

Shaft generator

2x AEM SE 630 M4 - 3.000 kW, each

Generators

1x Caterpillar 3516B diesel generatorset 1.824 kW

1x Caterpillar 3508B diesel generatorset 740 kW

Emergency generator

1x Diesel generatorset 280 kW

Bow thruster

1x Wärtsilä 1.450 kW

1x Rolls Royce 1.500 kW

Retractable azimuth

1x Wärtsilä 1.700 kW

Cargo hold capacity

Bale: 18.030 m³ with tweendecks in hold

Deck space

Main deck: 3.100 m²

Tween deck: 1.700 m²

Tanktop: 1.400 m²

Max permitted loads

Main deck: 9,0-12,0 t/m²

Tween deck: 7,0 t/m²

Tanktop: 12,0 t/m²

Tank capacities

Fuel oil: 1.270 t

MGO: 209 t

Fresh water: 141 t

Cargo gear

2x Huisman mast crane - SWL 900 t each

Accommodation

Up to 80 persons (incl. hospital 2 persons)

10x Single cabins

34x Double cabins

Dynamic positioning system

DP System Kongsberg SDP 21

Reference Systems

2x Seatex 116cm DGPS

1x Veripos Verify DGPS

1x HiPAP 501

1x LTW (tautwire system)

RADius/Fanbeam

Commercial manager

Jumbo Javelin BV

Havenstraat 23

3115 HC Schiedam

The Netherlands

ISM manager

Kahn Scheepvaart B.V.

Havenstraat 23

3115 HC Schiedam

The Netherlands

Registered owner

Jumbo Javelin BV

Care of Kahn Scheepvaart BV (Kahn Shipping Ltd),

Havenstraat 23

3115 HC Schiedam

The Netherlands

Previous owners

2004 - 01/2006 Jumbo Scheepvaart Maatschappij N.V., Willemstad - Netherlands Antilles

Latest data adjustment

16 October 2021
