| Westerschelde 29 September 2012 |
|
Name |

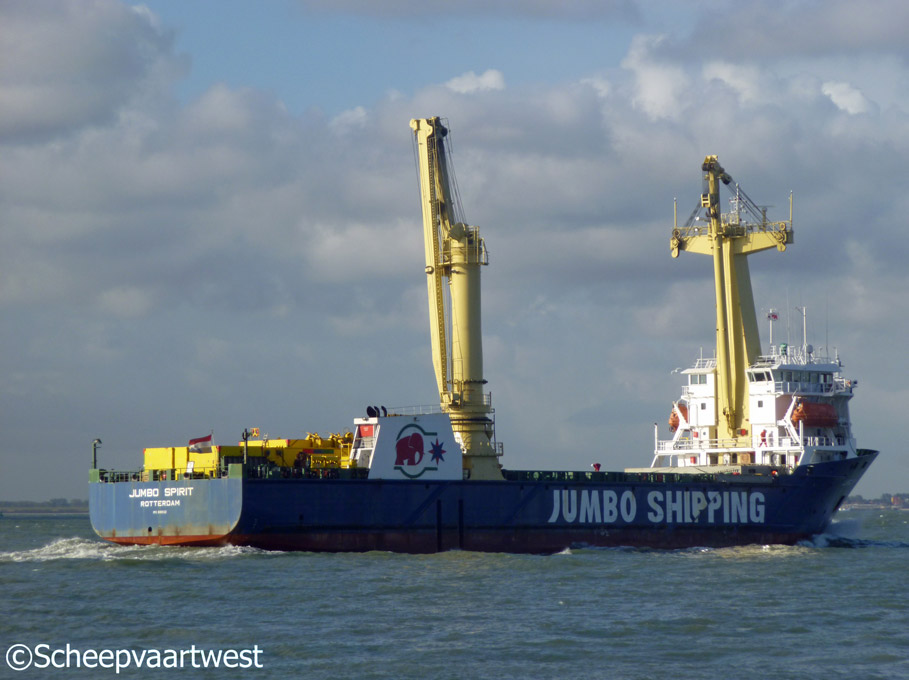

JUMBO SPIRIT |
|
Type |
General cargo - Heavy lift vessel |
|
IMO-number |
9083122 |
|
Call sign |
PFFH |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
4.962 t Suez: 4.871 t |
|
DWT |
Summer: 5.198 t |
|
NT |
1.488 t Suez: 3.906 t Panama: 4.228 t |
|
Number of 20ft containers |
300 |
|
Length |
95,72 m overall 87,40 m between perpendiculars |
|
Breadth |
18,35 m |
|
Draft |
6,81 m above bottom of keel |
|
Air draft |
40,00 m |
|
Depth |
11,32 m |
|
Speed |
14,0 knots |
|
Built |
1995 |
|
Keel laid |
09.1994 |
|
Launch date |
31.01.1995 |
|
Date of completion |
26.04.1995 |
|
Builder |
YVC Ysselwerf |
|
Yard number |
262 |
|
Hull material |
Steel |
|
Main engine |
1x Krupp MAK 6 M32 diesel engine - 2.640 KW at 600 rpm |
|
Bow thruster |
1x Thrustmaster JT 800/42 JET - 475 kW |
|
Number of holds |
1 Hold: Dimensions lowerhold: 47,28 x 13,95 x 3,65 m Hold: Dimensions tweendeck: 66,98 x 13,95 x 5,304 m Total height: 9,75 m |
|
Number of hatches |
1 |
|
Strength |
Tanktop: 12,00 t/m² Tweendecks: 3,50 t/m² Hatchcovers: 3,50 t/m² |
|
Free deckspace |
1.150 m² |
|
Cargo capacity |
Bales: 7.167 m³ With tweendecks in holds |
|
Tank capacities |
Fuel oil: 540 t Gas oil: 110 t Fresh water: 110 t Lub oil: 100 t |
|
Cargo gear |
1x Crane - SWL 250 t 1x Derrick - SWL 250 t / Combined 500 t 2x Auxiliary hoist - SWL 25 t each |
|
Manager |
Kahn Scheepvaart BV |
|
Operator |
Jumbo Shipping |
|
Owner |
Kahn Special Transport BV |
|
Registered owner |
Jumbo Spirit B.V. |
|
Scapped |
28/0/2015 beched Aliaga - Turkey |
|
Latest data adjustment |
21 May 2015 |
