Antwerpen 06 February 2020 |
|
Name |

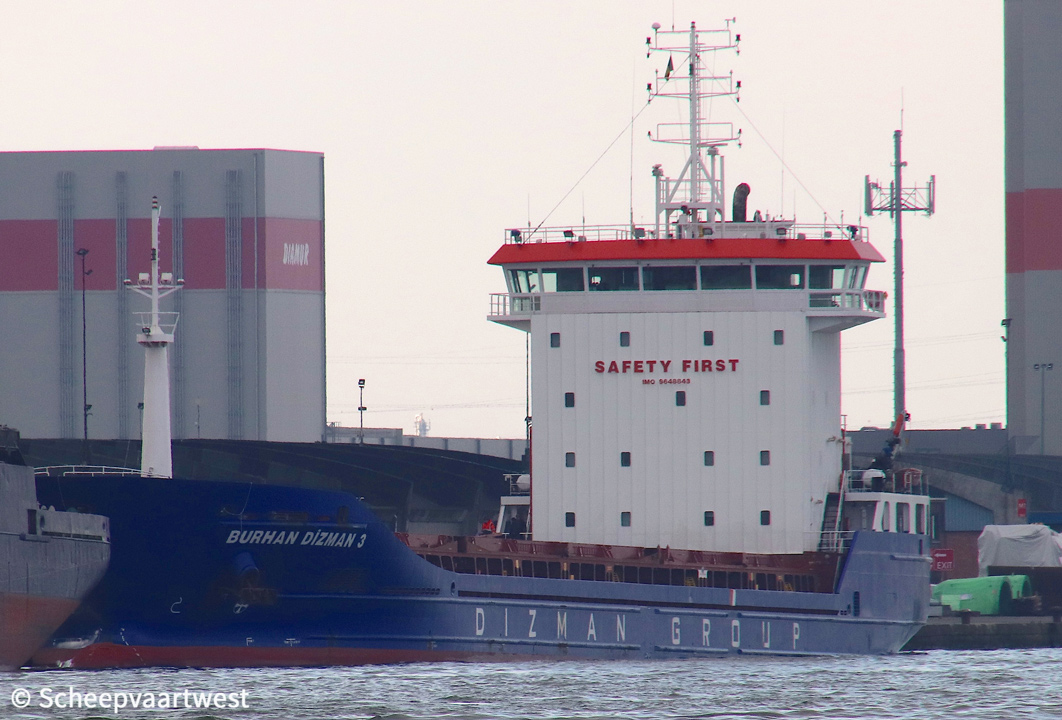

BURHAN DIZMAN 3 |
|
Type |
General cargo vessel |
|
IMO-number |
9648843 |
|
Call sign |
3FJC2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2013 - 2016 Turkey, Istanbul - Call sign: TCWB2 |
|
GT |
5.510 t |
|
DWT |
Summer: 7.371 t |
|
NT |
2.659 t |
|
Length |
120,39 m overall 112,70 m between perpendiculars |
|
Breadth |
17,00 m |
|
Draught |
Summer: 6,40 m |
|
Freeboard |
2.129 mm |
|
Depth |
8,50 m |
|
Speed |
12,5 knots |
|
Built |
2013 |
|
Keel laid |
30/11/2011 |
|
Launch date |
10/11/2012 |
|
Date of completion |
21/02/2013 |
|
Builder |
Tuzla Gisan Shipyard (Gisan Gemi Insa Sanayi ve Ticaret A.S.) Istanbul Turkey |
|
Yard number |
NB 53 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 6M35C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 2.999 kW at 600 rpm Build: 09/2012 Builder: Caterpillar Motoren Gmbh & Co., KG, Kiel - Germany |
|
Propellers |
1 |
|
Boilers |
1x Thermal oil Installation CPB boiler - 10,0 kg/cm² Heating surface: 17,5 m² Build: 11/2012 |
|
Shaft generator |
650 kW |
|
Generators |
2x MAN-Lindenberg main diesel generatorsets each 244 kW / 305 kVA - 400 Volt |
|
Emergency generator |
1x John Dere diesel generatorsets 137 kW |
|
Bow thruster |
450 kW |
|
Number of cargo holds |
3 Hold 1: 20,80 x 12,80 x 8,50 m Hold 2: 33,15 x 13,20 x 9,20 m Hold 3: 28,60 x 13,20 x 9,20 m |
|
Cargo hold capacity |
Grain & bale: Hold 1: 2.064,422 m³ / 72.904 ft³ Hold 2: 4.003,855 m³ / 141.395 ft³ Hold 3: 3.443,865 m³ / 121.609 ft³ Total: 9.511,865 m³ / 335.909 ft³ |
|
Number of hatches |
3 Hatch 1: 15,60 X 12,80 m Hatch 2: 30,55 X 13,20 m Hatch 3: 27,30 X 13,20 m |
|
Hatch cover type |
Folding type hydraulic Mc. Gregor |
|
Max permitted loads |
Tanktop: 14,0 t/m² Hatch covers: 3,5 t/m² |
|
Tank capacities 100% |
Fuel oil: 436,4 m³ Diesel oil: 85,97 m³ Sludge; 35,27 m³ Bilge water: 20,63 m³ Fresh water: 73,24 m³ Ballast water: 3.393,97 m³ |
|
Manager |
Dizman Denizcilik Ve Gemi Sanayi Dis Ticaret Limited Sirketi Fahrettin Kerim Gokay Cad Ad. Appendix B : Yes No 204 Tuncay Is Merkezi K:2-3 D:5-6 Goztepe / Istanbul Turkey |
|
Technical manager |
Dizman Denizcilik Ve Gemi Sanayi Dis Ticaret Limited Sirketi |
|
Registered owner |
BTD-MAR Shipping & Trade Co. Trust Company Complex Ajeltake Road, Ajeltake Island Majuro Republic Of Marshall Island |
|
Group |
Dizman |
|
Latest data adjustment |
23 April 2020 |
