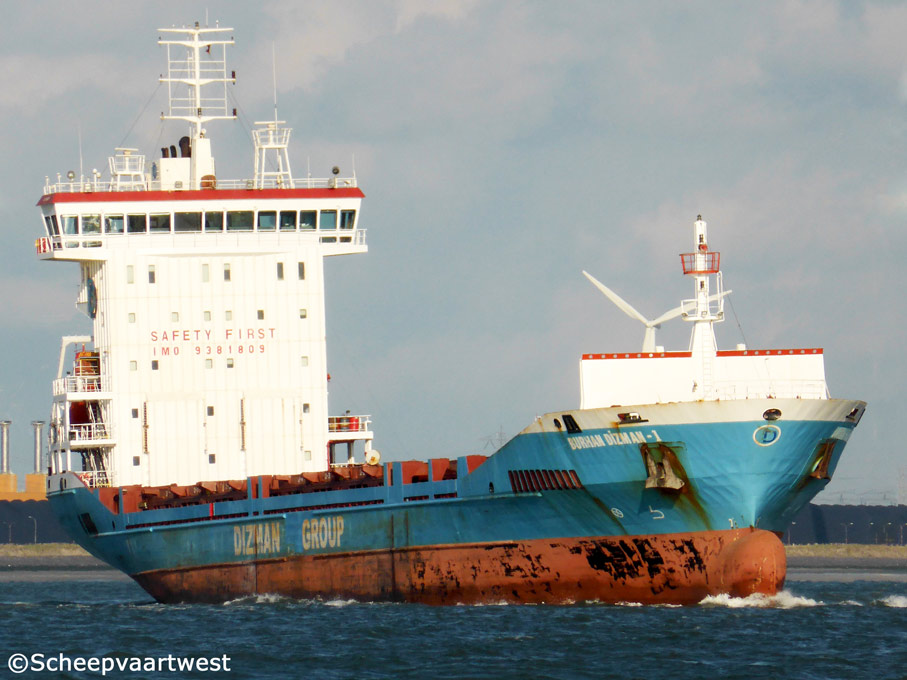

Burhan Dizman-1 02

Westerschelde 22 August 2014

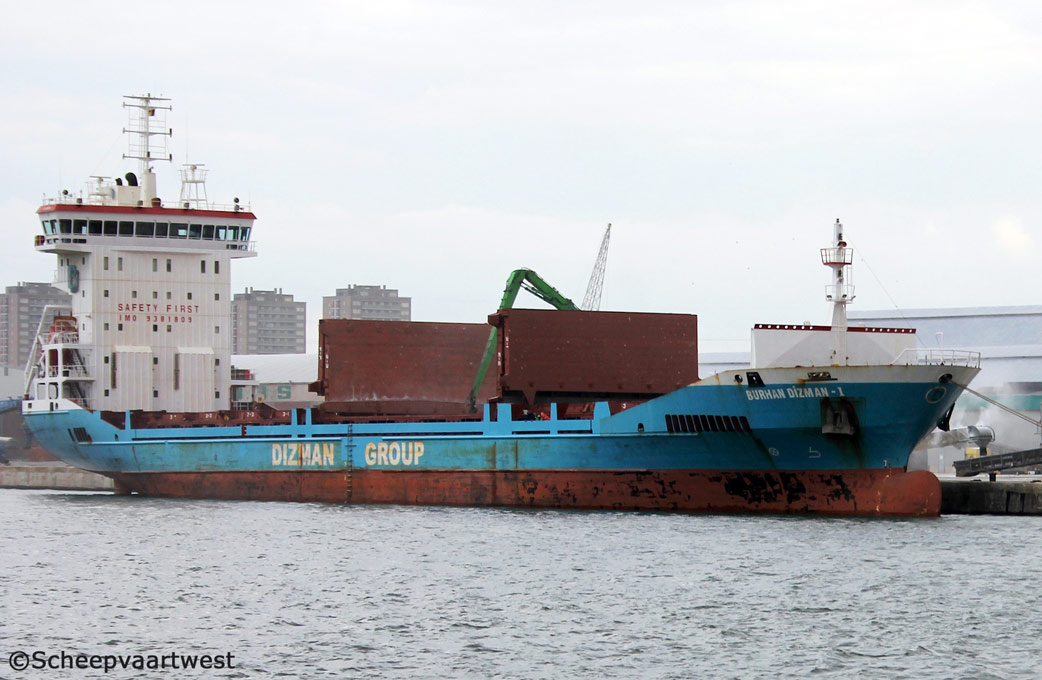

Burhan Dizman-1 01
Antwerpen 21 August 2014



Name

BURHAN DIZMAN-1

Type

General cargo ship - Heavycargo - Equipped for carriage of containers

IMO-number

9381809

Call sign

TCSR5

Flag

Turkey

Port of registry

Istanbul

GT

5.816 t

DWT

Summer: 7.728 t

NT

2.766 t

Number of 20ft containers

602

Length

126,80 m overall

117,96 m between perpendiculars

Breadth

19,00 m

Draught

6,85 m

Air draft

37,70 m

Depth

9,20 m

Speed

16,5 knots

Built

2007

Date of completion

18.05.2007

Builder

Sahin Celik Shipyard (Sahin Celik Tersanesi San. Ve Tic. A.S.)
Tuzla

Turkey

Yard number

41

Hull material

Steel

Main engine

1x MAN B&W 7S35MC - diesel engine 5.180 kW / 7.038 hp at 173,0 rpm

Propellers

1

Boilers

1x CHO 22,00 m² - 13,0 bar
1x CHR 120,00 m² - 10,0 bar

Generators

3x Main diesel generatorsets each 400 kVA - 320 kW - 435 hp

Bow thruster

Yes

Number of holds

3

Hold 1: 25,90 x (10,40 - 13,00) x 6,75 m

Hold 2: 25,90 x 15,80 x 7,75 m

Hold 3: 25,90 x 15,80 x 7,75 m

Cargo hold capacity

Grain: 347.963 ft³ / 20.556 m³

Number of hatches

3

Hatch 1:

FWD 9,60 x 10,40 x1,55 m

Aft: 12,20 x 13,00 x 1,55 m

Hatch 2: 31,20 x 13,20 x 1,55 m

Hatch 3: 25,90 x 15,80 x 1,55 m

Hatch cover type

Folding type hydraulic Mc Gregor

Strength

Tanktop: 15 t/m²

Hatch cover: 1,75 t/m²

Cargo gear

Gearless

Manager

Dizman Denizcilik Shipping Ltd.
Istanbul
Turkey

Operator

Dizman Group
Fahrettin Kerim Gokay Cad.
NO.204 Tuncay Is Merkezi
Goztepe/Kadikoy
34730, Istanbul

Turkey

Registered owner

Dizman Denizcilik Ve Gemi Sanayi Dis Ticaret Limited Sirketi
Istanbul
Turkey

Latest data adjustment

04 October 2014
