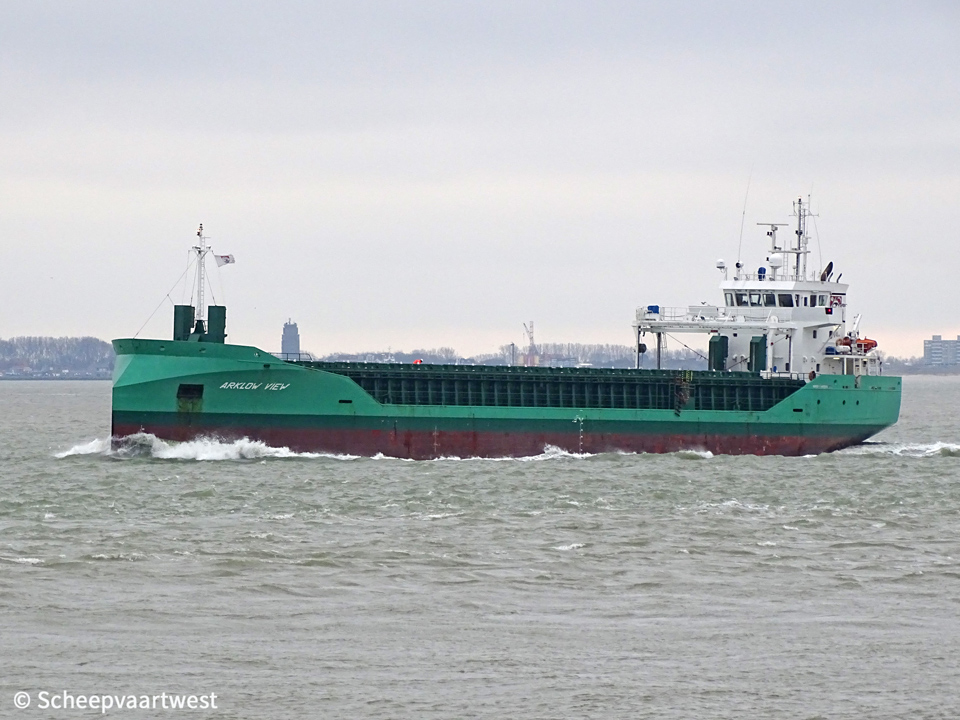

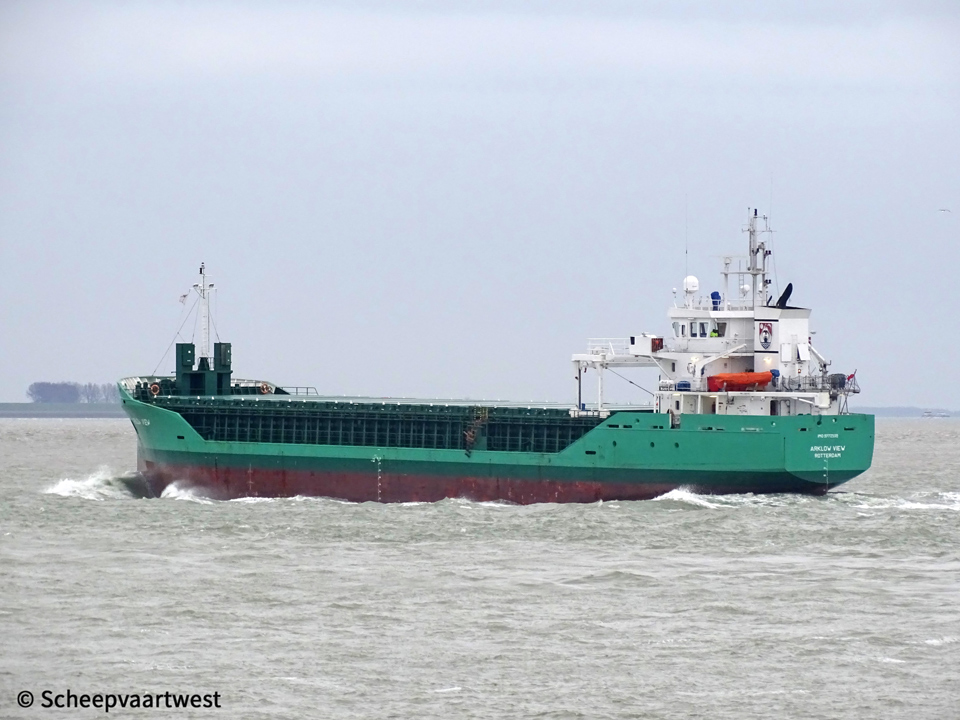

Westerschelde 14 March 2020 |
 |
| Westerschelde 14/03/20 |
|
Name |
ARKLOW VIEW |
|
Type |
General cargo ship - Heavycargo - Strength bottom |
|
IMO-number |
9772539 |
|
Call sign |
PDDU |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.999 t |
|
DWT |
5.170 t |
|
NT |
1.731 t |
|
Displacement |
6.541 t |
|
Length |
86,93 m overall 84,98 m between perpendiculars 82,84 m load line |
|
Breadth |
15,00 m |
|
Draught |
Summer: 6,35 m |
|
Air draft |
Min: 18,25 m |
|
Freeboard |
680 mm |
|
Depth |
7,17 m |
|
Speed |
12,5 knots |
|
Built |
2016 |
|
Launch date |
17/12/2015 |
|
Date of completion |
02/03/2016 |
|
Builder |
Royal Bodewes Hoogezand Shipyard BV Hoogezand The Netherlands |
|
Yard number |
722 |
|
Hull material |
Steel |
|
Movable bulkheads |
Portable bulkhead may be placed in 8 positions for cargo separation and storage position |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.740 kW / 2.364 bhp at 720 rpm Build: 02/10/2015 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 140 rpm |
|
Shaft generator |
348 kW |
|
Generators |
2x Sisu Diesel main diesel generatorsets each 192 kVA - 154 kW - 224 hp at 1.500 rpm |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW - 101 hp |
|
Bow thruster |
1x Electric bow thruster 300 kW |
|
Number of cargo holds |
1 |
|
Total capacity of holds |
Grain & bale: 6.258 m³ / 221.000 ft³ |
|
Hatch type |
Coops & Nieborg pontoon system |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Ballast: 1.870 m³ HFO: 109 m³ Gas oil: 95 m³ Fresh water; 32 m³ Lub oil: 11 m³ |
|
Manager |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Avoca Shipping BV Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Latest data adjustment |
21 April 2020 |
