Westerschelde 20 March 2020 |
 |
| Westerschelde 20/03/20 |
|
Name |

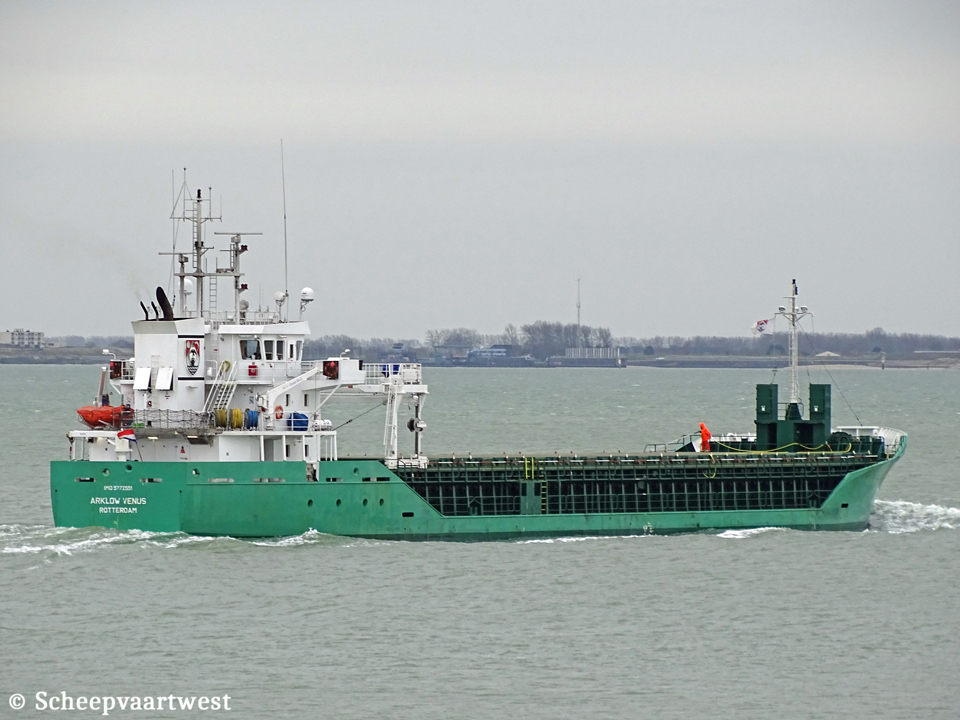

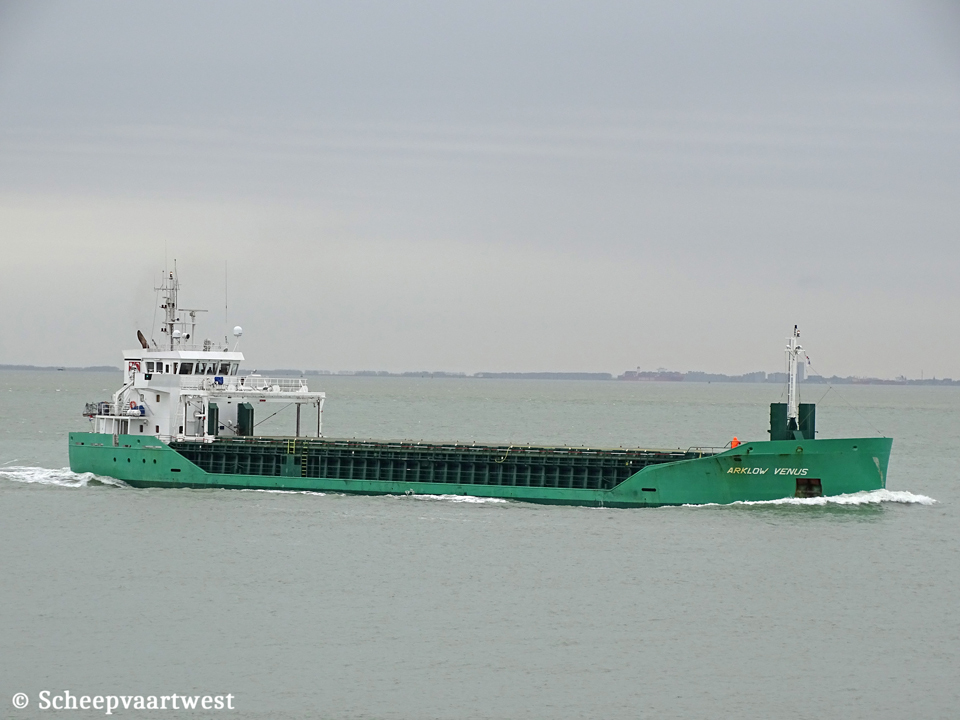

ARKLOW VENUS |
|
Type |
Multi-purpose carrier - General cargo ship Trader 5150 minibulker |
|
IMO-number |
9772591 |
|
Call sign |
PBBW |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.999 t |
|
DWT |
Summer: 5.171 t Winter: 5.017 t |
|
NT |
1.731 t |
|
Length |
86,93 m overall 84,98 m between perpendiculars |
|
Breadth |
15,00 m moulded |
|
Draught |
Summer: 6,35 m Winter: 6,23 m Ballast: 3,61 m |
|
Air draft |
Min: 17,94 m |
|
Freeboard |
830 mm |
|
Depth |
7,17 m moulded |
|
Speed |
12,5 knots |
|
Built |
2018 |
|
Launch date |
30/10/2017 |
|
Date of completion |
05/01/2018 |
|
Builder |
Royal Bodewes B.V. Hoogezand The Netherlands |
|
Yard number |
728 |
|
Hull material |
Steel |
|
Movable bulkheads |
2 - 8 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.740 kW / 2.365 bhp at 720 rpm Build: 10/01/2017 Manufacturer: Caterpillar Motoren G.m.b.H. & Co. K.G., Kiel - Germany |
|
Propellers |
1x Berg screw Propeller Controllable pitch - aft at 140,0 rpm |
|
Shaft generator |
1x 428 kVA - 342 kW |
|
Generators |
2x x SiSU Diesel main diesel generatorsets 192 kVA - 154 kW - 247 hp at 1.500 rpm |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW - 101 hp |
|
Bow thruster |
1x Electric bow thruster 300 kW |
|
Number of holds |
1 60,00 x 12,40 x 8,64 m |
|
Cargo hold capacity |
Bale / grain: 6.258 m³ / 221.000 ft³ |
|
Hold ventilation |
6x Mechanical ventilation changes per hour in empty holds |
|
Hatch type |
Pontoon system |
|
Mac permitted loads |
Tanktop: 15,0 t/m² On hatches: 1,75 t/m² |
|
Tank capacities |
Ballast: 1.870 m³ HFO: 109,0 m³ Gas oil: 95 m³ Fresh water: 32,0 m³ Lub oil: 11,0 m³ |
|
Manager |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Ferrybank Shipping BV Rotterdam The Netherlands |
|
Latest data adjustment |
10 January 2021 |
