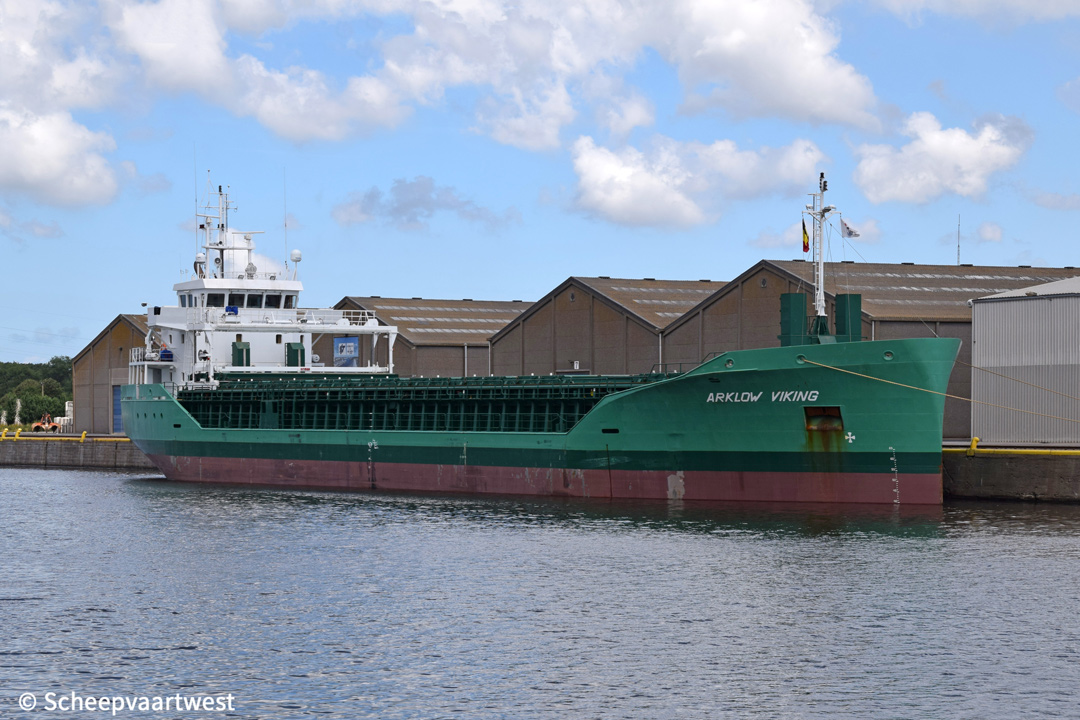

Arklow Viking 01

Brugge 21 July 2020

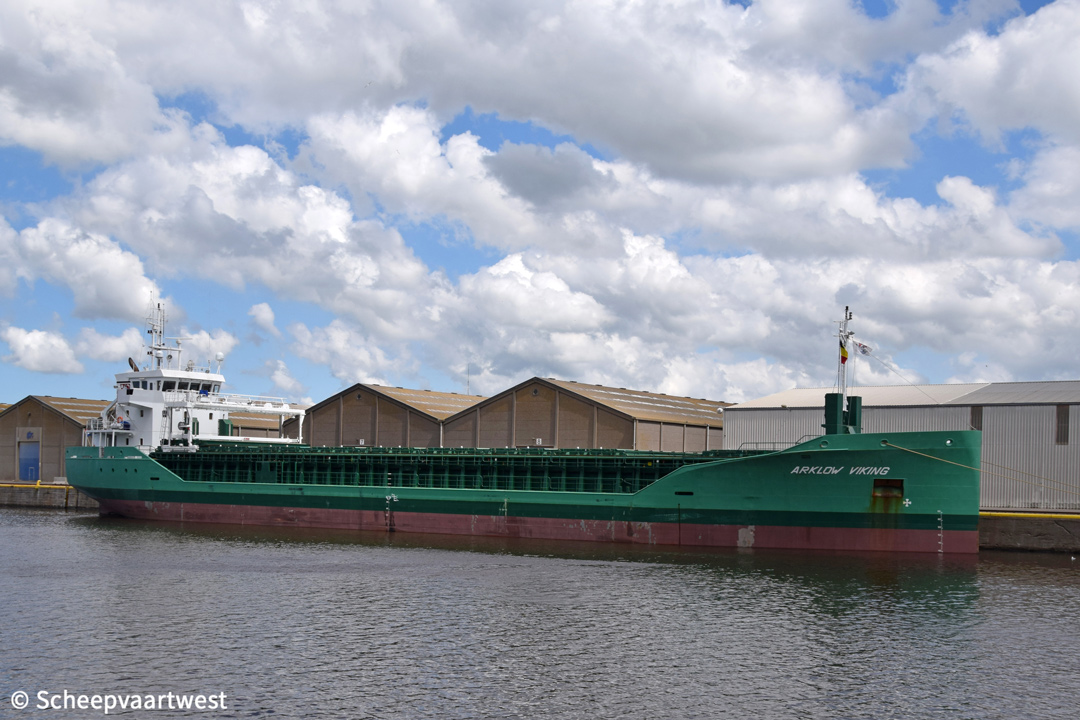

Arklow Viking 02   Arklow Viking 03
Brugge 21/07/20   Brugge 21/07/20













Name

ARKLOW VIKING

Type

General cargo ship - Heavycargo

IMO-number

9772606

Call sign

PCTZ

Flag

The Netherlands

Port of registry

Rotterdam

GT

2.999 t

DWT

Summer: 5.150 t

Winter: 5.017 t

NT

1.731 t

Length

86,93 m overall

84,98 m between perpendiculars

Breadth

15,00 m

Draught

Summer: 6,35 m

Winter: 6,23 m

Ballast: 3,61 m

Air draft

Min: 17,94 m

Freeboard

830 mm

Depth

7,17 m moulded

Speed

12,5 knots

Built

2018

Launch date

20/02/2018

Date of completion

12/04/2018

Builder

Bodewes Shipyards B.V.

Hoogezand

The Netherlands

Yard number

729

Hull material

Steel

Movable bulkheads

May be placed in 8 positions for cargo separation and storage position

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.740 kW / 2.364 bhp at 720 rpm

Build: 03/05/2017

Builder: Caterpillar Motoren GmbH, Anqing - China

Propellers

1x Screw propeller controllable pitch - aft at 140,0 rpm

Shaft generator

1x 348 kW

Generators

2x Main diesel generatorsets each 192 kVA - 154 kW - 247 hp at 1.500 rpm

Emergency generator

1x Diesel generatorset 81 kVA - 65 kW - 101 hp

Bow thruster

Electric bow thruster 300 kW

Number of holds

1

60,00 x 12,40 x 8,64 m

Total capacity of holds

Bale & Grain: 6.258 m³ / 221.000 ft³

Hold ventilation

Mechanical ventilation 6 changes per hour in empty holds

Hatch type

Coops & Nieborg pontoon system

Max permitted loads

On hatches: 1,75 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Fuel oil: 109 m³

Gas oil: 95 m³

Fresh water: 32 m³

Lub oil: 11 m³

Ballast: 1.870 m³

Crew

7

Manager

Arklow Shipping Nederland B.V.

Rotterdam

The Netherlands

Registered owner

Ferrybank Shipping BV

Rotterdam

The Netherlands

Latest data adjustment

16 September 2020
