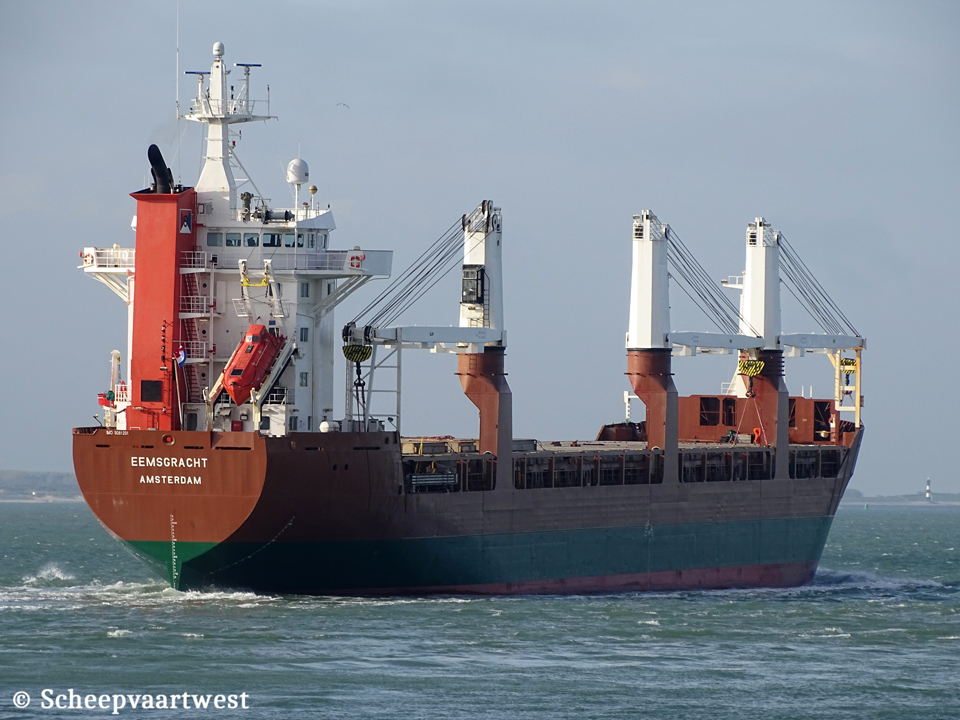

Eemsgracht 01

Antwerpen 14 July 2019



Name

EEMSGRACHT

Type

General cargo, Multi-purpose

IMO-number

9081291

Call sign

PDXQ

Flag

The Netherlands

Port of registry

Amsterdam

GT

8.448 t

DWT

Summer: 12.754 t ex. tweendeck

Summer: 12.324 t incl. tweendeck

NT

4.651 t

Number of 20ft containers

In holds: 296

On deck: 434

Total: 730

Number of 40ft containers

In holds: 136 + 24 TEU

On deck: 186 + 62 TEU

Total: 322 + 86 TEU

Reefer capacity

322

Length

137,16 m overall

127,14 m between perpendiculars

Breadth

18,90 m moulded

Draught

Summer: 8,52 m

Depth

11,65 m

Speed

Max: 14,5 knots

Built

1995

Keel laid

24/09/1993

Launch date

04/12/1994

Date of completion

03/02/1995

Builder

Frisian Shipyard Welgelegen B.V.

Harlingen

The Netherlands

Yard number

502

Hull material

Steel

Bulkheads / compartments

Removable pontoons for up to 11 compartments at TEU interval

Continuous decks

1

Main engine

1x Wärtsilä Type 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 hp

Manufacturer: Wärtsilä Diesel Oy, Vaasa - Finland

Propellers

1x Fixed pitch propeller

Generators

4x Generatorsets each 320 kW

Bow thruster

1x 500 kW / 700 hp

Number of holds

2

Cargo hold capacity

Grain/bale:

Hold 1: 208.000 ft³ / 5.890 m³

Hold 2: 557.250 ft³ / 15.780 m³

Total: 765.250 ft³ / 21.670 m³

Hold ventilation

30x p/h basis empty holds

Hatches

Weather deck:

No.1: 26,60 x 15,80 m

No.2: 31,74 x 15,80 m

No.3: 26,60 x 15,80 m type Steel, end folding type

Tween deck:

No.1: 28,00 x 15,80 m

No.2: 61,84 x 15,80 m

Consisting:

17 steel pontoons:

11x 6,35 x 15,80 m

2x 4,36 x 15,80 m

3x 3,19 x 15,80 m

1x 1,92 x 15,80 m

Floor space

Tanktop: 1.280 m²

Tween deck: 1.430 m²

Weather deck: 1.617 m²

Max permitted loads

Weather deck hatch covers: 1,45 t/m²

Tweendeck hatch covers: 4,0 t/m²

Tanktop: 20,0 t/m²

Tank capacities

Fuel oil: 1.338 m³

Diesel oil: 173 m³

Ballast water 4.044 m³

Cargo gear

3x Deck cranes:

SWL 60 t / 16,00 m

SWL 40 t / 24,00 m

Situated on starboard side

Manager

Spliethoff's Bevrachtingskantoor BV

Radarweg 36

1042 AA Amsterdam

The Netherlands

Registered owner

Eemsgracht Rederij

Amsterdam

The Netherlands

Previous owners

02/1995 - 07/2002

C.V. Scheepvaartonderneming Eemsgracht, Amsterdam - The Netherlands

Latest data adjustment

30 March 2020
