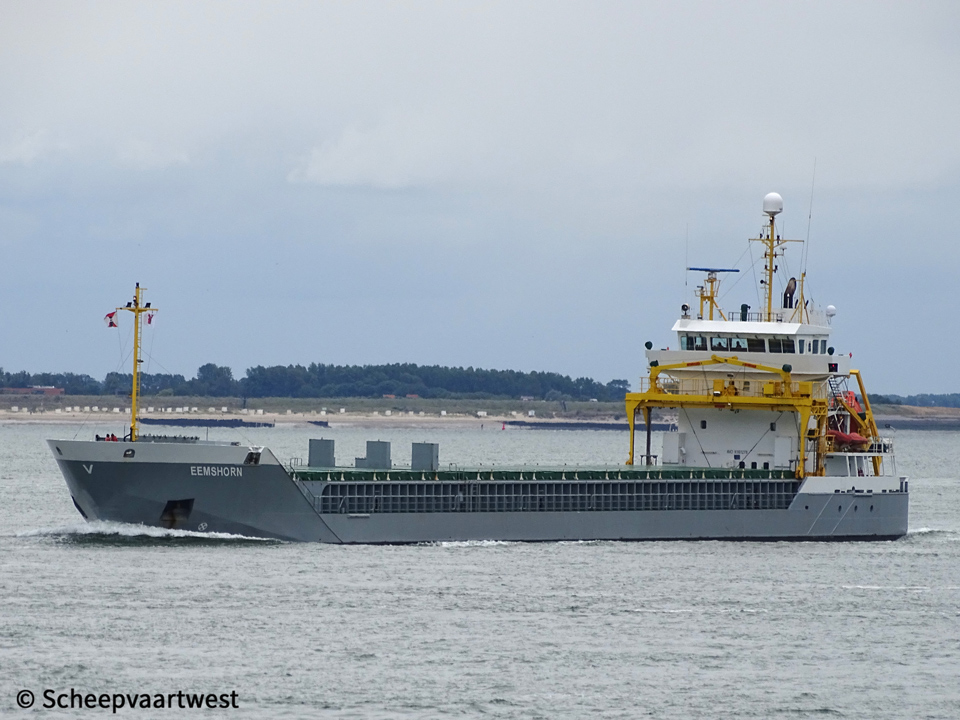

Eemshorn 01

Westerschelde 15 July 2019

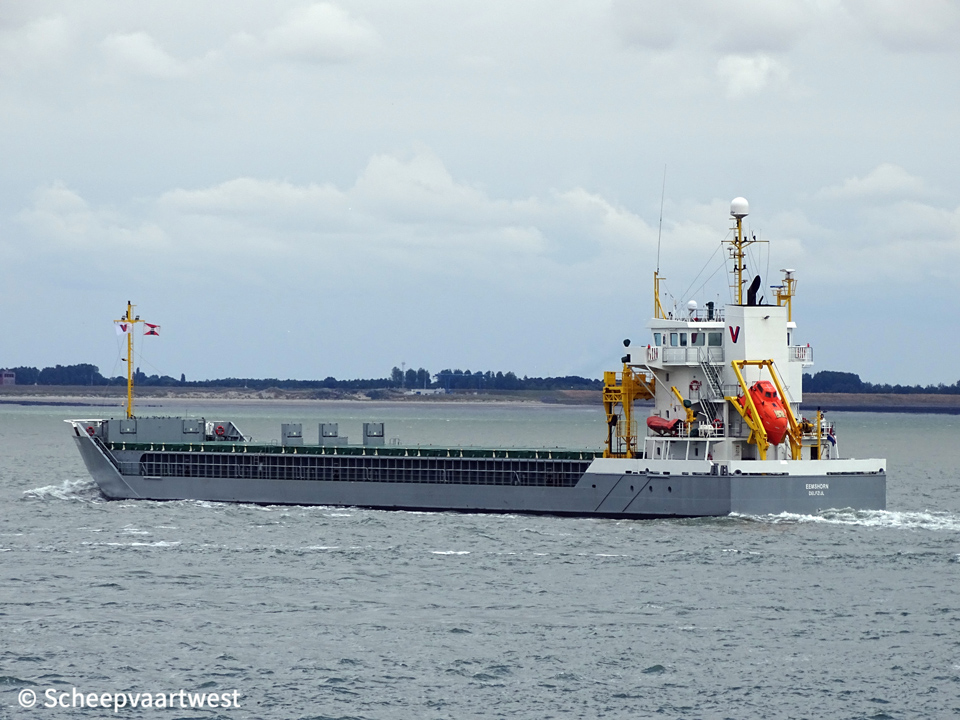

Eemshorn 02
Westerschelde 15/07/19













Name

EEMSHORN

Type

General cargo, Multi-purpose - Container ship - Open hatch, fully box, double skinned, Single-decker

IMO-number

9393278

Call sign

PHNY

Flag

The Netherlands

Port of registry

Delfzijl

GT

3.990 t

DWT

Summer: 6.060 t

DWCC

Summer: 6.450 t

NT

2.208 t

Number of 20ft containers

242

Length

110,78 m overall

105,48 m between perpendiculars

Breadth

14,00 m moulded

Draught

Max: 6,52 m

Air draft

26,00 m in ballast

Freeboard

1.636 mm

Depth

8,13 m moulded

Speed

Max: 13,0 knots

Service: 11,0 knots

Built

2008

Keel laid

02/07/2007

Launch date

01/03/2008

Date of completion

27/03/2008

Builder

Scheepswerf Ferus Smit GmbH

Leer

Germany

Yard number

384

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Movable bulkheads

2

Continuous decks

1

Main engine

1x Caterpillar-MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.640 kW/ 3.587 hp at 750 rpm

Builder: Caterpillar Tractor Company Inc., Peoria (Illinois) - USA

Propellers

1x Screw propeller controllable pitch - aft at 200 rpm

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Main engine driven gen.

1x 487 kVA - 390 kW

Generators

2x Main diesel generatorsets each 175 kVA - 140 kW - 222 hp

Emergency generator

1x Diesel generatorset 52 kVA - 42 kW - 68 hp

Bow thruster

1x 340 kW

Number of holds

2x Fully box and double skinned

Hold 1: 27,58 x 11,47 x 9;00 m

Hold 2: 50,88 x 11,47 x 9,00 m

Cargo hold capacity

Grain & bale: 7.928 m³ / 278.042 ft³

Hold ventilation

6x Air changes per hour, basis empty holds

Both holds fitted with dehumidifier system

Tween decks

2x Tween decks (2 x 9,00 m, only in hold no. 2)

Number of hatches

2

Hatch 1: 27,58 x 11,47 m

Hatch 2: 50,88 x 11,47 m

Tank capacities

HFO: 370 m³

MGO: 36 m³

Water ballast: 2.599 m³

Fresh water: 45 m³

Crew size

8

Manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Owner

C.V. Scheepvaartonderneming Eemshorn (H.K. Veninga)

Delfzijl

The Netherlands

Registered owner

Eemshorn CV

Latest data adjustment

30 June 2020
