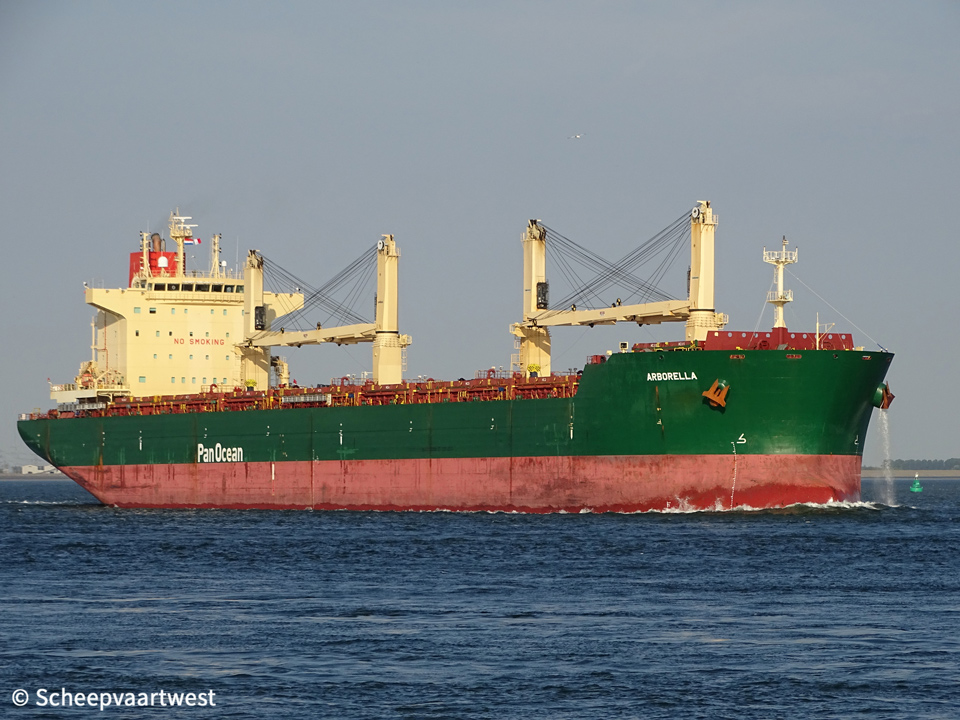

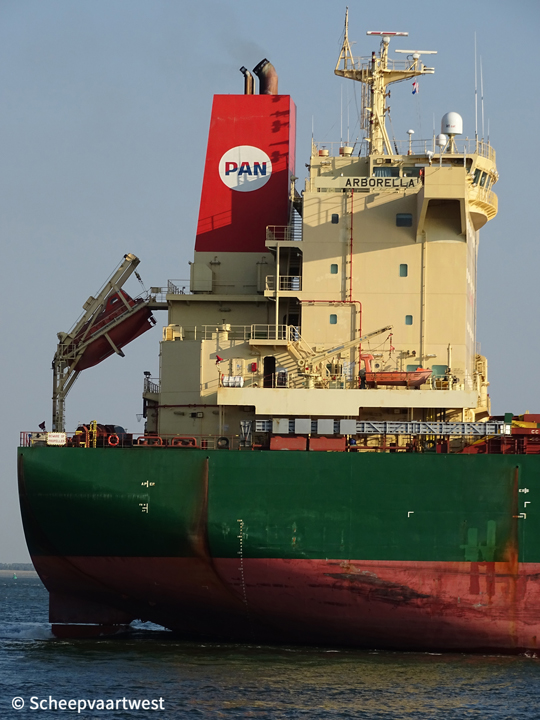

Name
|
ARBORELLA
|
|
Previous names
|
2012 - 10/2014 STX Arborella
|
|
Type
|
General dry cargo ship
|
|
IMO-number
|
9613288
|
|
Call sign
|
V7YS2
|
|
Flag
|
Marshall Islands
|
|
Port of registry
|
Majuro
|
|
GT
|
39.009 t
|
|
DWT
|
57.540 t
|
|
NT
|
16.720 t
|
|
Length
|
199,92 m overall
|
|
Breadth
|
32,26 m
|
|
Draught
|
Max: 12,72 m
|
|
Reg. dimensions L x B x D
|
192,67 x 32,26 x 19,30 m
|
|
Rule dimensions L x B x D
|
192,67 x 32,26 x 19,30 m
|
|
Freeboard
|
Summer: 3.715 mm
|
|
Depth
|
19,30 m
|
|
Speed
|
13,9 knots
|
|
Built
|
2012
|
|
Keel laid
|
08/04/2012
|
|
Launch date
|
12/06/2012
|
|
Date of completion
|
11/09/2012
|
|
Builder
|
STX Offshore & Shipbuilding Co., Ltd.
Jinhae-Changwon
South Korea
|
|
Yard number
|
S-1539
|
|
Hull material
|
Steel
|
|
Watertight bulkheads
|
10
|
|
Continuous decks
|
2
|
|
Main engine
|
1x MAN-B&W-STX 6S50MC-C8 - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.960 kW at 127,0 rpm
Build: 03/2012
Manufacturer: STX Heavy Industries Co., Ltd., Changwon - South Korea
|
|
Propellers
|
1x Fixed propeller
|
|
Boilers
|
1x Auxiliary Boiler CPB
Pressure: 8,8 kg/cm²
Heating surface: 265 m²
Manufacturer: Seah E&T Co.,Ltd., Ulsan - south Korea
|
|
Generators
|
3x Main diesel generatorsets each 910 kW
|
|
Number of holds
|
8
|
|
Cargo hold capacity
|
Grain: 68.540 m³
|
|
Number of hatches
|
Hatch 1: 12,00 x 18,00 m
Hatch 2: 18,40 x 28,20 m
Hatch 3: 18,40 x 28,20 m
Hatch 4: 18,40 x 28,20 m
Hatch 5: 18,40 x 28,20 m
Hatch 6: 18,40 x 28,20 m
Hatch 7: 18,40 x 28,20 m
Hatch 8: 12,80 x 28,20 m
|
|
Tank capacities
|
Fuel oil: 3.044,8 m³
Fresh water: 434,8 m³
Water ballast: 23.019,6 m³
|
|
Cargo gear
|
4x Deck cranes - SWL 45,0 t each
|
|
Manager
|
POS Shipmanagement Co., Ltd.
|
|
Technical managers
|
POS Shipmanagement Co., Ltd
|
|
Operator
|
Pan Ocean Co.
|
|
Registered owner
|
POS Maritime Ca SA
|
|
Renamed
|
2019 Xiang Ning
China
|
|
Latest data adjustment
|
23 August 2019
|
