Westerschelde 15 May 2019 |
 |
| Antwerpen 22/05/15 |
|
Name |

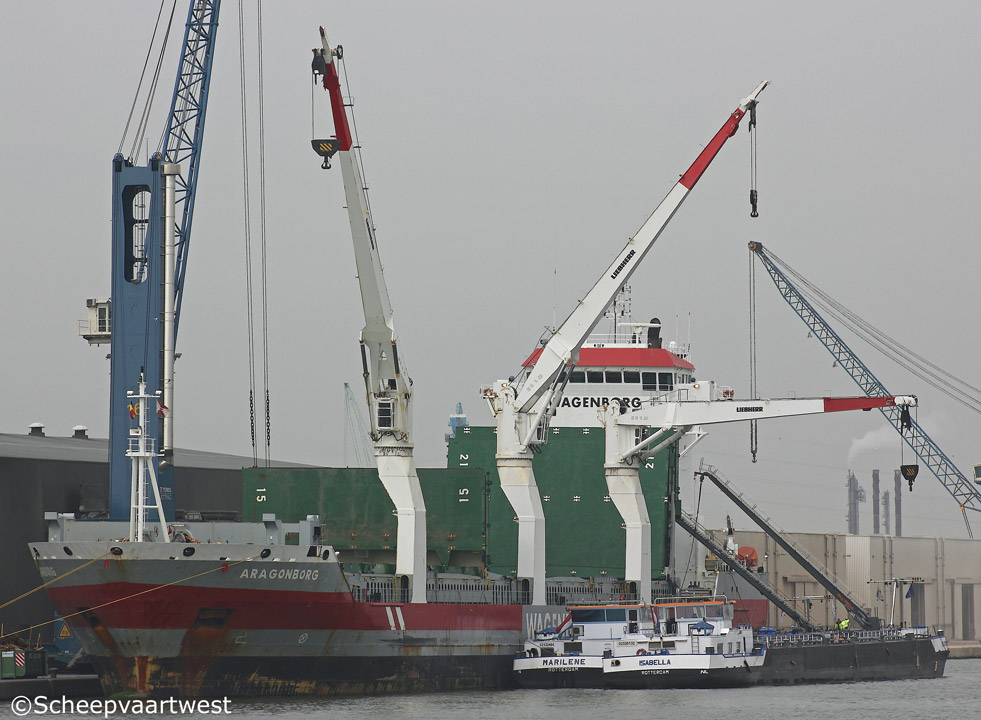

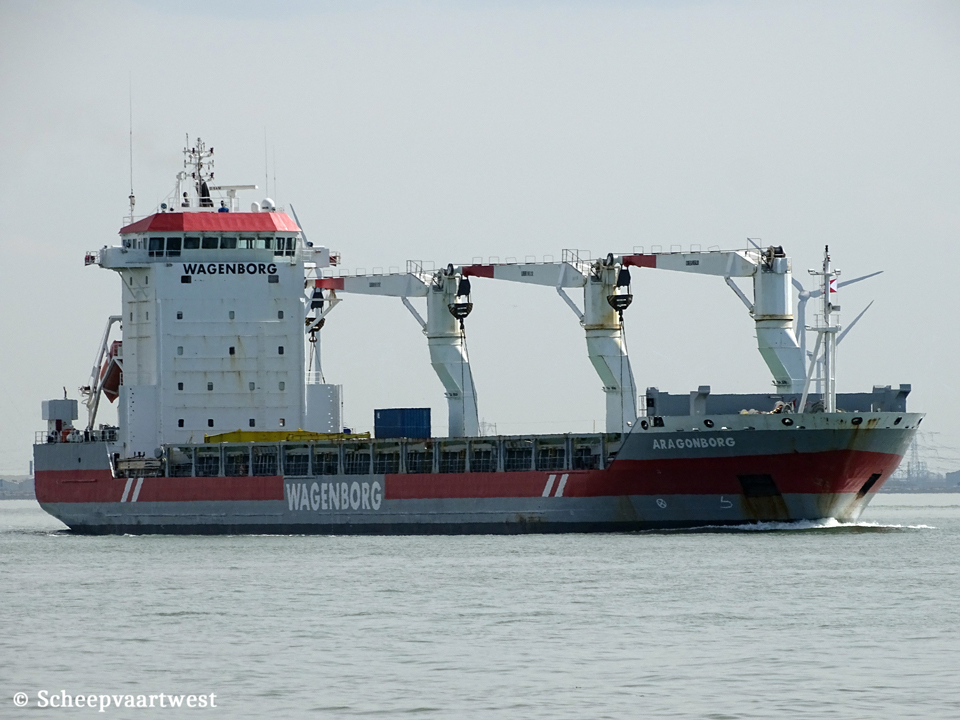

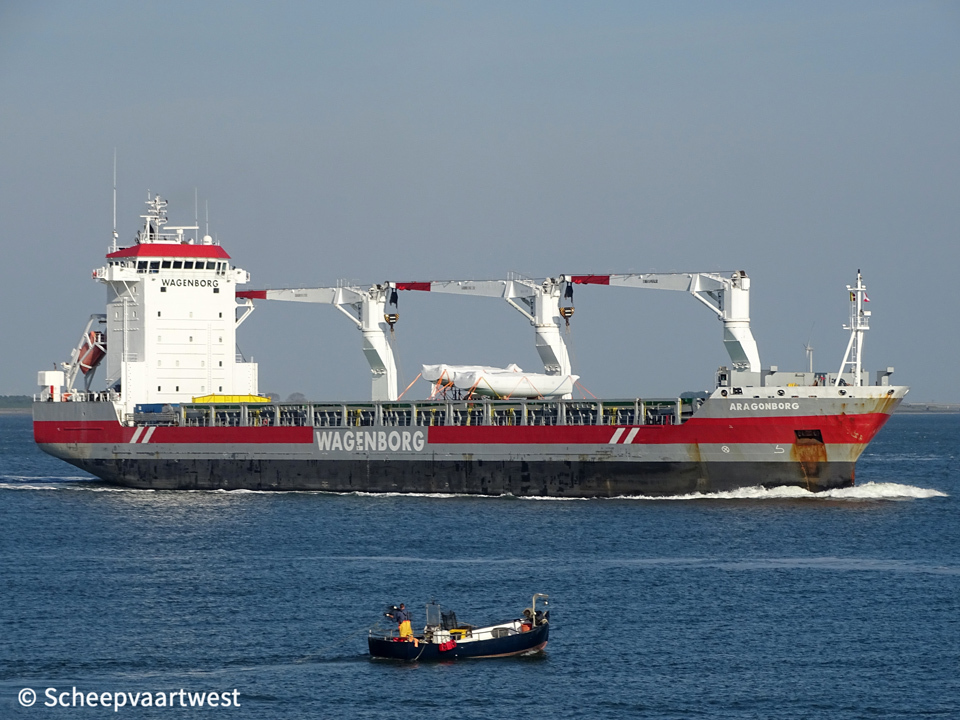

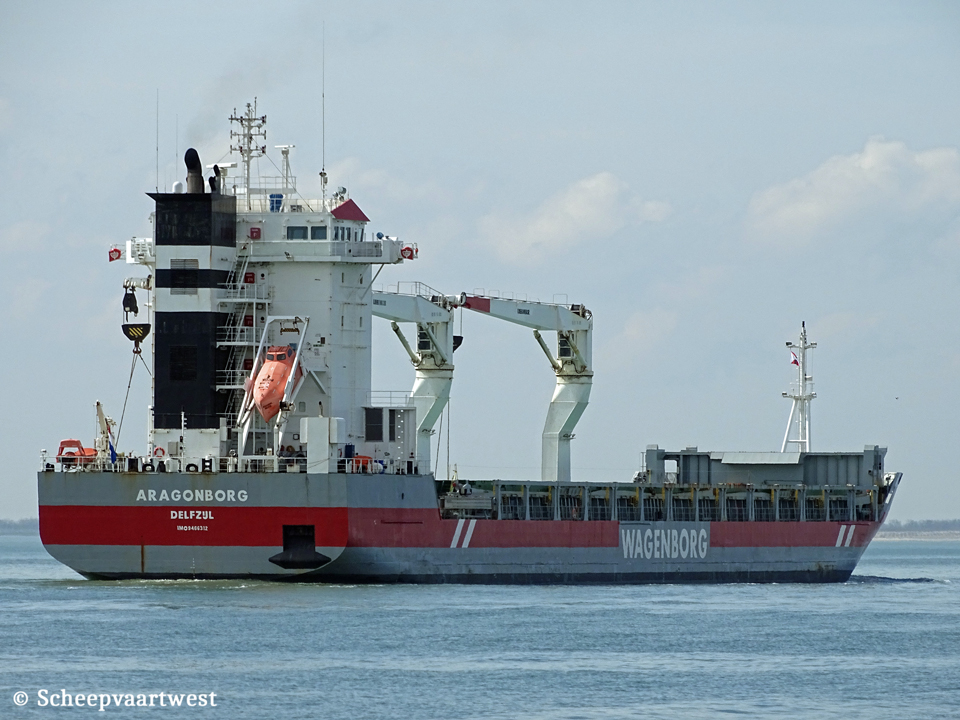

ARAGONBORG |
|
Type |
General cargo ship - Multi-purpose - Fully open hatch - fully box |
|
IMO-number |
9466312 |
|
Call sign |
PCGK |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
11.885 t |
|
DWT |
Summer: 17.294 t |
|
DWCC |
Summer: 15.750 t |
|
NT |
5.650 t |
|
Number of 20ft containers |
959 |
|
Reefer capacity |
60 |
|
Length |
143,00 m overall 133,36 m between perpendiculars |
|
Breadth |
21,50 m moulded |
|
Draught |
Summer: 9,69 m Winter: 9,50 |
|
Air draft |
35,40 m in ballast |
|
Freeboard |
3.610 mm |
|
Depth |
13,30 m moulded |
|
Speed |
Max.: 17,0 knots Service: 15,4 knots |
|
Built |
2010 |
|
Keel laid |
20.06.2010 |
|
Launch date |
10.09.2010 |
|
Delivery date |
09.12.2010 |
|
Builder |
Hudong Zhonghua Shipbuilding Group Ltd. |
|
Yard number |
H1575A |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L46F - 4 stroke 6 cylinder 460 x 580 mm diesel engine 7.500 kW / 10.200 bhp at 600 rpm Builder: Wärtsilä Italia |
|
Propellers |
1x Wärtsilä/ Lips contollable pitch propeller 4 blades – diameter: 4.800 mm |
|
Shaft generator |
800 kW |
|
Generators |
3x Main diesel generatorsets each 450 kW |
|
Bow thruster |
750 kW |
|
Number of holds |
2 Hold 1: 35,80 x 17,75 x 13,50 m Hold 2: 52,10 x 17,75 x 13,50 m |
|
Cargo hold capacity |
Grain/bale: 19.828 t |
|
Electrical ventilation |
12x Air changes per hour basis empty holds Both holds fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 35,80 x 17,75 m Hatch 2: 52,10 x 17,75 m |
|
Hatch type |
MacGregor hydraulic steel pontoon hatches |
|
Tween decks
|
The vessel is equipped with a full tweendeck, consisting of loose tweendeck pontoons of each: No. 1: 9,90 x 3,22 x 0,90 m weight abt. 6 t No. 2 + 3: 12,57 x 6,48 x 0,90 m weight abt. 25 t No. 4 - 14: 17,65 x 6,48 x 0,90 m weight abt. 33 t Tweendecks can be used as vertical bulkheads at every 20ft interval |
|
Max. Permitted loads |
Tanktop: 20,0 t/m² Tweendeck: 4,0 t/m² Weatherdeck: 1,75 t/m² |
|
Tank capacities |
HFO: 1.350 m³ MGO: 215 m³ Water ballast: 5.490 m³ Fresh water: 280 m³ |
|
Cargo gear |
3x Liebherr deck cranes - SWL 60,0 t each on portside |
|
Manager |
Wagenborg Shipping B.V. |
|
Owner |
Wagenborg Shipping |
|
Registered owner |
Scheepvaartonderneming Aragonborg B.V. |
|
Latest data adjustment |
16 January 2017 |
