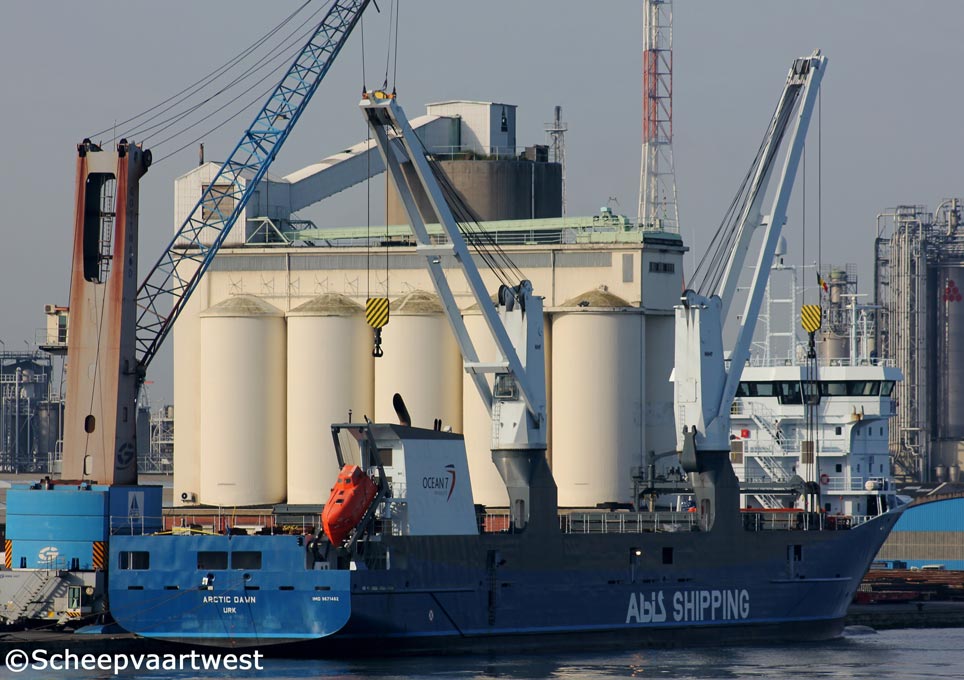

Arctic Dawn 01

Antwerpen 12 October 2014



Name

ARCTIC DAWN

Type

General cargo ship - Heavy cargo - Equipped for the carriage of containers

Open top vessel

IMO-number

9671462

Call sign

PCUT

Flag

The Netherlands

Port of registry

Urk

GT

5.460 t

DWT

Summer: 4.200 t

NT

1.638 t

Displacement

8.268 t

Number of 20ft containers

261

Length

111,60 m overall

102,00 m between perpendiculars

Breadth

16,80 m moulded

Draught

Summer: 5,80 m

Keel to top mast

31,00 m

Freeboard

418 mm

Depth

9,30 m to main deck

Speed

Service: 16,5 knots

18,0 knots

Built

2013

Launch date

21.06.2013

Date of completion

23.12.2013

Builder casco

Partner Shipyards Sp. z.o.o.
Stettin
Poland

Builder completion

CIG Shipbuilding
Groningen
The Netherlands

Yard number

121

Hull material

Steel

Watertight compartments

5

Movable bulkhead

Removable bulkheads

Continuous decks

1

Main engine

1x MaK - 4 stroke 8 cylinder 320 x 480 mm diesel engine - 4.000 kW / 5.435 hp at 600 rpm

Built: 23.05.2013

Builder: Caterpillar, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 173 rpm

Shaft generator

1x 875 kVA - 700 kW

Generators

2x Main diesel generatorsets each 500 kVA - 400 kW - 579 hp

Emergency generator

1x Diesel generatorset 149 kVA - 119 kW - 198 hp

Bow thruster

2x 300 kW

Number of holds

1

Lower hold: 45,20 x 11,50 x 10,55 m

Tweendeck: 66,00 x 12,00 m

Total capacity of holds

6.770 m³ / 240.000 ft³

Number of hatches

1

66,00 x 12,00 m

Weather deck: 91,00 x 16,00 m

Hatch covers

Type of hatch covers: 11 pontoons hatches

Tweendeck covers: 7 removeable pontoons

Floor capacity

Hold floor surface: 1.310 m²

Deck floor surface: 1.529 m²

Load distribution

Tanktop: 25,0 t/m²

Tweendeck covers: 3,5 t/m²

Tweendeck fixed: 15,0 t/m²

Hatchcovers: 3,5 t/m²

Tank capacities

Heavy fuel oil: 537 m³

Marine gas oil: 58 m³

Lubricating oil: 15 m³

Fresh water: 25 m³

Ballast water: 3.465 m³

Cargo gear

1x NMF cranes - SWL 150 t each

Manager

Hartman Shipping
Urk
Netherlands

Operator

Abis Shipping
Nieuwe Vissershaven 5

8861 NX Harlingen

The Netherlands

Charterer

Ocean7Projects

Sdr. Havnegade 34

DK-6000 Kolding

Denmark

Registered owner

Hartman Shipping 3 B.V.

Renamed

01/2017 Eemslift Nelli

The Netherlands, Delfzijl - Call sign:PCUT

Manager: Amasus Shipping BV

Owner: Eemslift Nelli BV

Latest data adjustment

18 December 2018
