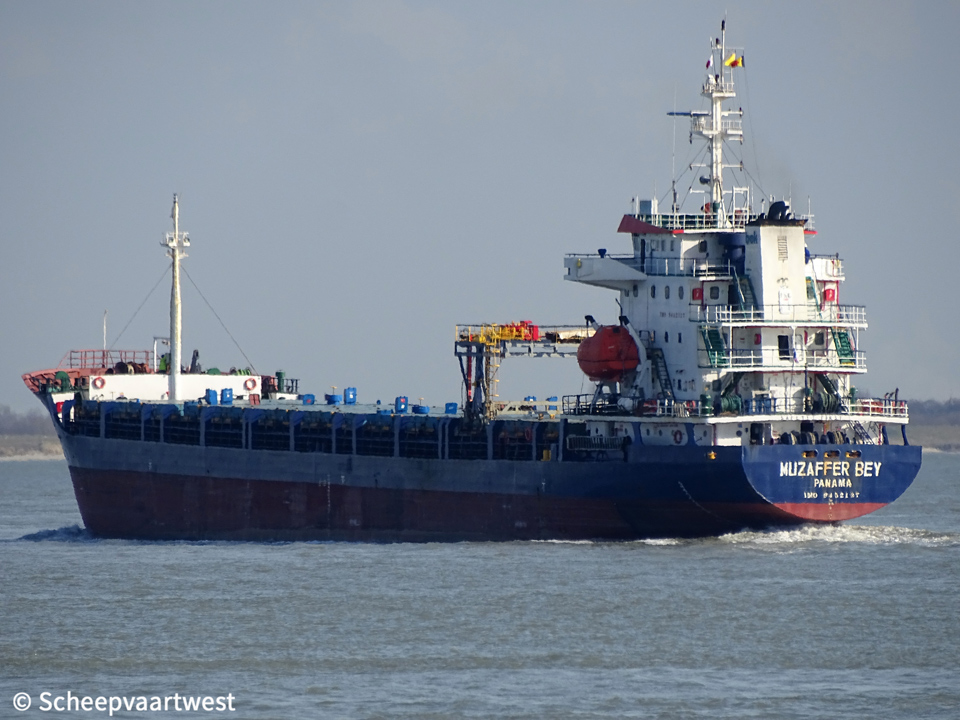

Muzaffer Bey 01

Westerschelde 20 February 2019



Name

MUZAFFER BEY

Previous names

2007 Launch as: Jing He

10/2007 - 2008 Dong Cheng Yaun 3

Type

General Cargo / Gearless / Boxshaped - Container carrier

IMO-number

9452127

Call sign

3FME7

Flag

Republic of Panama

Port of registry

Panama City

GT

3.796 t

DWT

Summer: 5.110 t

NT

2.136 t

Number of 20ft containers

292

Length

101,80 m overall

97,52 m between perpendiculars

Breadth

16,00 m extreme

15,80 m moulded

Draught

Summer: 6,07 m

Freeboard

1.866 mm

Depth

7,60 m moulded

Speed

12,0 knots

Built

2007

Builder

Linhai Hangchang Shipbuilding Co., Ltd.
Linhai
China

Yard number

6033

Hull material

Ordinary steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Yanmar 6N330-UN - 4 stroke 6 cylinder 330 x 440 mm combustion engine 2.207 bhp / 1.623 kW at 620 rpm

Propellers

1x Fixed pitch propeller

Generators

4x Diesel generatorsets each 134 kW

Number of holds

3x Box holds

Hold 1: 7,50 x 12,50 m aft - 7,50 x 7,50 m forward

Hold 2&3: 26,00 x 12,50 m

Hold height: 8,00 m

Hold capacity

Hold 1: 1.445 m³

Hold 2: 2.816 m³

Hold 3: 2.848 m³

Grain/Bale: 7.109 m³ - 249.000 ft³

Number of hatches

3

Hatch 1: 12,50 x 12,50 m

Hatch 2&3: 25,00 x 12,50 m

Hatch type

Pontoon hatch covers

Lifting equipment

1x Gantry crane - SWL 24,0 t

Manager

Bek Denizcilik Ve Ticaret Ltd.

Kavacık Mah. Elbistan Sk. No:10 SAS Plaza Kat:1 D:5

Beykoz
Istanbul
Turkey

Operator

Bek Denizcilik ve Ticaret Ltd. Sti

Registered owner

Stone Shipping Ltd-SKN
Basseterre
St. Kitts & Nevis

Latest data adjustment

12 August 2019
