Westerschelde 15 October 2014 |
|
Name |

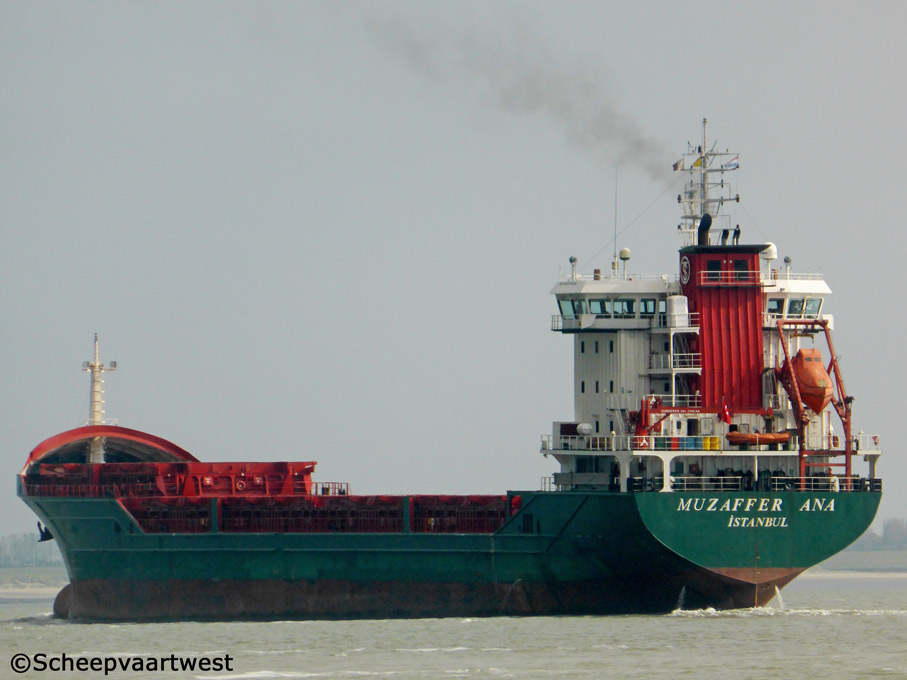

MUZAFFER ANA |
|
Type |
Multi-purpose general cargo ship - Container vessel |
|
IMO-number |
9554157 |
|
Call sign |
TCWY4 |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
GT |
8.601 t |
|
DWT |
Summer: 11.787 t |
|
NT |
4.517 t |
|
Length |
147,63 m overall 138,96 m between perpendiculars |
|
Breadth |
17,68 m moulded |
|
Draught |
7,89 m |
|
Freeboard |
2.697 mm |
|
Depth |
10,50 m moulded |
|
Speed |
Service: 12,5 knots Max.: 15,0 knots |
|
Built |
2010 |
|
Date of completion |
05.01.2010 |
|
Builder |
Kocatepe Shipyard (Kocatepe Gemi Cekek ve Insa Sanayi Ltd. Sti.) |
|
Yard number |
22 |
|
Hull material |
Steel |
|
Hull type |
Double bottom and double skin |
|
Watertight compartments |
12 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm diesel engine 4.077 bhp / 2.999 kW at 600 rpm Built: 27.02.2009 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw Propeller Controllable pitch |
|
Boilers |
1x CHR Aalborg 68,70 m² / 10,0 bar |
|
Shaft generator |
1x Leroy-Somer - 580 kW |
|
Generators |
2x Caterpillar main diesel generatorsets each 325 kVA - 260 kW - 353 hp |
|
Emergency generator |
1x Caterpillar diesel generatorset 286 kVA - 229 kW - 311 hp |
|
Bow thruster |
1x Schottel - 300 kW |
|
Number of hold |
3 |
|
Hold capacity |
Grain: 16.310,70 m³ |
|
Number of hatches |
3 |
|
Tank capacities |
Fuel oil (HFO) : 792 t Water ballast: 4.318 t Diesel oil (MDO): 71 t Lub oil: 32 t Grey water: 38 t Fresh water: 86 t Cleaning water: 86 t |
|
Crew cabins |
16 |
|
Manager |
Armador Ship Management |
|
Registered owner |
Arter Denizcilik Ve Tasimacilik San. Tic. Ltd. Sti. |
|
Latest data adjustment |
06 December 2014 |
