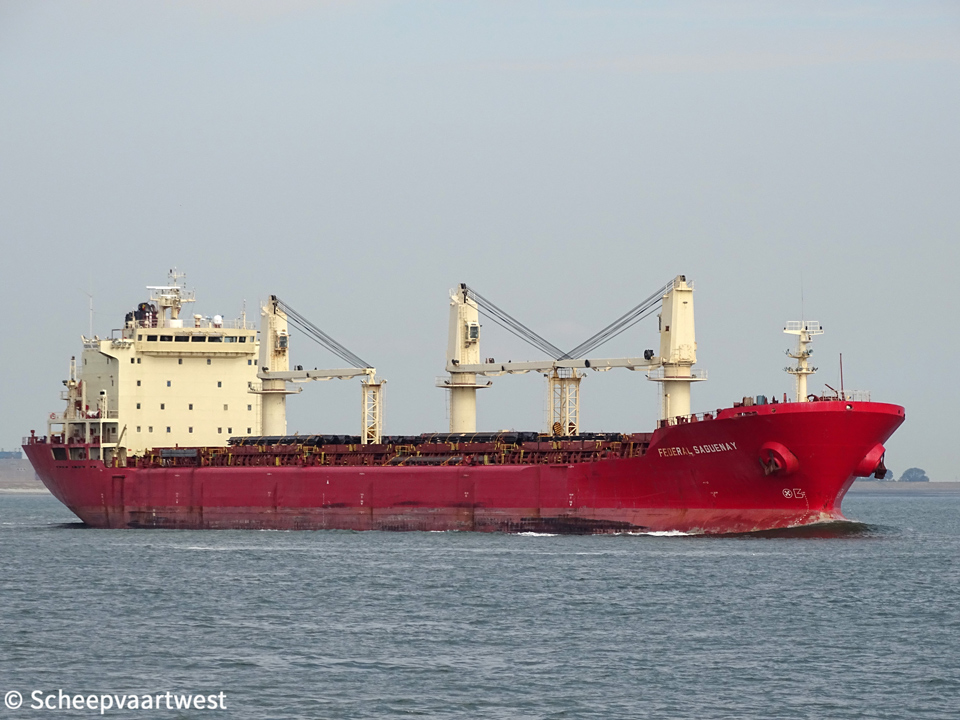

Federal Saguenay 01

Westerschelde 22 July 2018

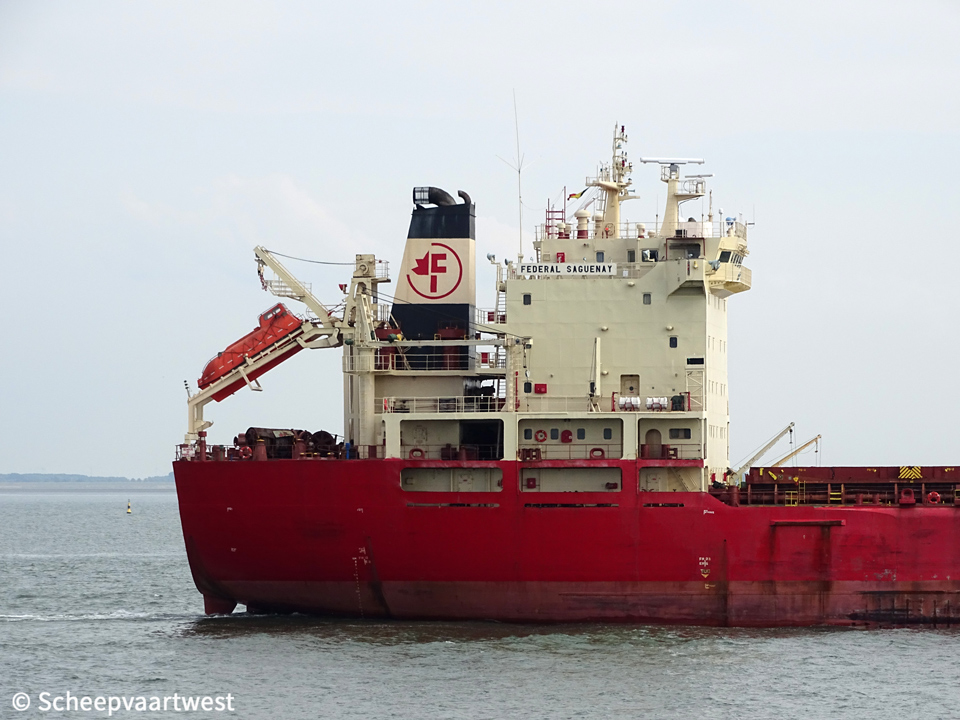

Federal Saguenay 03
Westerschelde 22/07/18



Name

FEDERAL SAGUENAY

Type

Bulk carrier - Type Laker

IMO-number

9110913

Call sign

8PNQ

Flag

Barbados

Port of registry

Bridgetown

GT

20.873 t registered

DWT

Summer: 34.167 t

Winter: 33.223 t

NT

11.404 t registered

Panama: 17.387 t

Suez: 18.082 t

Length

200,00 m overall

191,00 m between perpendiculars

Breadth

23,50 m extreme

23,44 m moulded

Draught

Summer: 10,74 m

Winter: 10,51 m

Depth

14,89 m

Speed

14,0 knots

Built

1996

Keel laid

09/02/1996

Launch date

05/06/1996

Date of completion

10/09/1996

Builder

Jiangnan Shipyard (Group) Co., Ltd.
Shanghai
China

Yard number

2216

Hull material

Steel

Hull type

Single hull

Bulkheads

Transverse: 8

Continuous decks

1

Main engine

1x MAN-B&W 6S50MC - 6 cylinder combustion engine 10.476 hp / 8.692 kW

Propellers

1

Boilers

1x Auxiliary boiler, composite

Generators

3x Daihatsu 6DKB-20 main diesel generatorsets

Emergency generator

1x MAN D0226 MLE diesel generatorset

Bow thruster

1x KaMeWa manoeuvring thruster 2000 H/BMS-CP - 750 kW

Number of holds

6

Hold 1: 23,00 x FWD/AFT 7,50/17,80 m

Hold 2: 24,00 x FWD/AFT 18,00/18,00 m

Hold 3: 26,80 x FWD/AFT 18,00/18,00 m

Hold 4: 24,00 x FWD/AFT 18,00/18,00 m

Hold 5: 26,80 x FWD/AFT 18,00/18,00 m

Hold 6: 23,00 x FWD/AFT 17,80/11,50 m

Cargo hold capacity

Grain / Bale:

Hold 1: 6.180 m³ / 5.951 m³

Hold 2: 6.950 m³ / 6.641 m³

Hold 3: 7.795 m³ / 7.519 m³

Hold 4: 6.868 m³ / 6.606 m³

Hold 5: 7.804 m³ / 7.527 m³

Hold 6: 6.268 m³ / 6.093 m³

Total: 41.863 m³ / 40.337 m³

Number of hatches

Hatch 1: 14,40 x 13,10 m

Hatch 2: 18,40 x 13,10 m

Hatch 3: 20,00 x 13,10 m

Hatch 4: 18,40 x 13,10 m

Hatch 5: 20,00 x 13,10 m

Hatch 6: 16,00 x 13,10 m

Hatch type

Folding hydraulic

Max permitted loads

Tanktop: 20,4 t/m²

Tank capacities

IFO: 1.373 m³

MDO: 432 m³

Ballast: 18.607,02 m³

Anchor equipment

Length: 605,00 m

Diameter: 64 mm

Cargo gear

3x Electro hydraulic deck cranes - SWL 30,0 t each

Manager

Anglo-Eastern Ship Management Limited

Hong Kong
China

Operator

Fednav
1000 de La Gauchetière Street West, Suite 3500
Montreal, Quebec H3B 4W5
Canada

Registered owner

Federal Atlantic Limited

Previous owners

1996 - 1999 Lake Huron Inc.

1999 - 2006 Lake Superior Inc.

Latest data adjustment

09 March 2019
