Antwerpen 22 May 2015 |
|
Name |

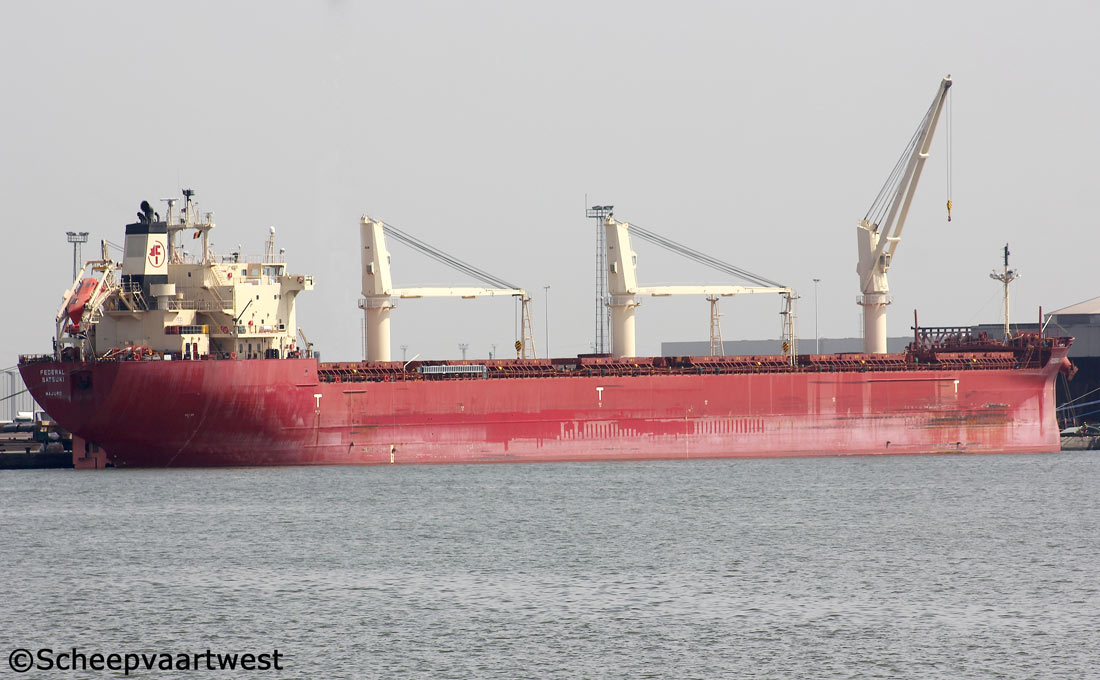

FEDERAL SATSUKI |
|
Type |
Bulk carrier |
|
IMO-number |
9515101 |
|
Call sign |
V7YE6 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
20.465 t |
|
DWT |
Summer: 35.885 t Winter: 34.916 t Tropical: 36.857 t |
|
NT |
12.136 t Panama: 17.077 t Suez: 19.782 t |
|
Length |
199,98 m overall 195,50 m between perpendiculars |
|
Breadth |
23,76 m extreme |
|
Draught |
10,78 m |
|
Depth |
14,85 m |
|
Speed |
14,0 knots |
|
Built |
2012 |
|
Keel laid |
19.12.2011 |
|
Launch date |
19.04.2012 |
|
Date of completion |
24.05.2012 |
|
Builder |
Oshima Shipbuilding Co., Ltd. |
|
Yard number |
10582 |
|
Hull material |
Steel |
|
Main engine |
1x MAN 6S46MC-C - 6 cylinder diesel engine 8.280 kW / 10.710 bhp at 129,0 rpm |
|
Propellers |
1x Fixed pitch propeller 5 blades |
|
Boilers |
1x Auxiliary boiler, composite GCS-22ST Builder: Aalborg |
|
Generators |
3x Yanmar 6EY18 diesel generatorsets Builder: Yanmar Co., Ltd. Amagasaki Plant |
|
Emergency generator |
1x Deutz BF 6L 913 diesel generatorset |
|
Bow thruster |
Yes |
|
Number of holds |
6 Hold 1: 27,30 x 6,00 / 19,90 m Hold 2: 27,00 x 19,90 / 19,90 m Hold 3: 27,00 x 19,90 / 19,90 m Hold 4: 21,60 x 19,90 / 19,90 m Hold 5: 27,00 x 19,90 / 19,90 m Hold 6: 27,00 x 19,90 / 9,95 m |
|
Hold capacity |
Grain / Bale Hold 1: 7.012 m³ / 6.755 m³ Hold 2: 7.713 m³ / 7.430 m³ Hold 3: 7.466 m³ / 7.176 m³ Hold 4: 6.258 m³ / 6.086 m³ Hold 5: 7.721 m³ / 7.427 m³ Hold 6: 7.291 m³ / 7.098 m³ Total: 43.561 m³ / 41.972 m³ |
|
Number of hatches |
6 Hatch 1: 17,10 x 13,20 m Hatch 2: 19,80 x 13,20 m Hatch 3: 19,80 x 13,20 m Hatch 4: 13,50 x 13,20 m Hatch 5: 19,80 x 13,20 m Hatch 6: 18,00 x 13,20 m |
|
Hatch caver type |
Folding hydraulic |
|
Tank capacities |
Ballast capacity: 19.278 m³ Fuel oil: 1.524 m³ Marine diesel oil: 403 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
3x Electro hydraulic cranes - SWL 30,5 t each |
|
Manager |
Anglo Eastern Shipmanagement Ltd. |
|
Owner |
Fednav Group |
|
Registered owner |
Federal Oceans Limited |
|
Latest data adjustment |
23 June 2015 |
