Westerschelde 19 July 2016 |
|
Name |

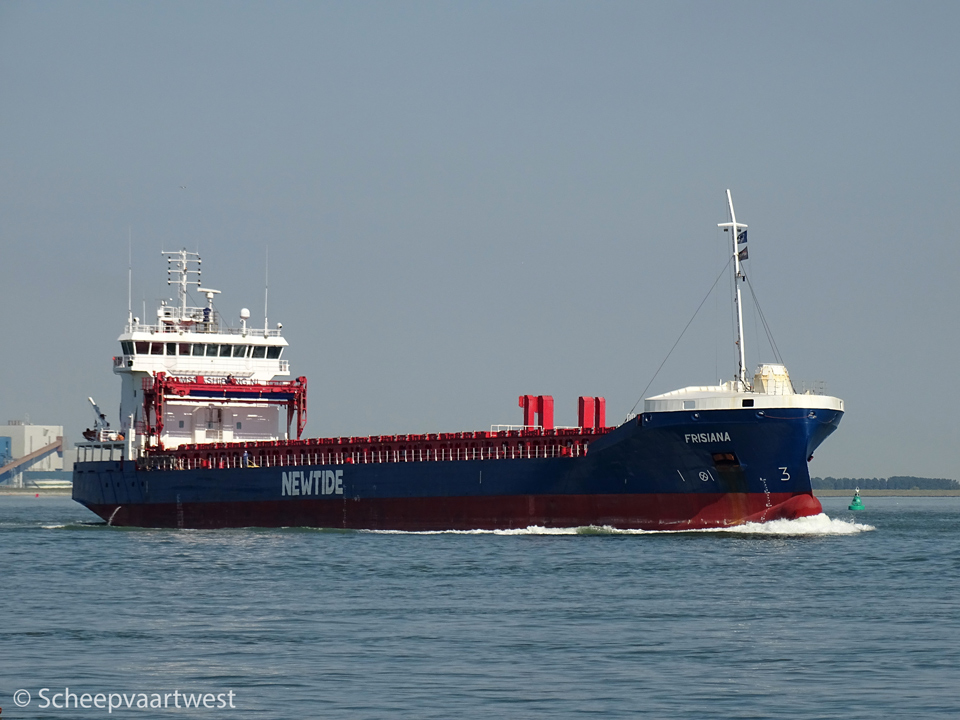

FRISIANA |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9385893 |
|
Call sign |
PCEQ |
|
Flag |
The Netherlands |
|
Port of registry |
Sneek |
|
GT |
5.887 t |
|
DWT |
Summer: 8.027,33 t |
|
NT |
2.558 t |
|
Number of 20ft containers |
355 |
|
Length |
128,45 m overall 123,59 m between perpendiculars |
|
Breadth |
15,87 m extreme |
|
Draught |
Summer: 6,80 m |
|
Air draft |
25,50 m in ballast |
|
Depth |
9,90 m |
|
Speed |
12,5 knots loaded 14,0 knots in ballast |
|
Built |
2010 |
|
Keel laid |
20/12/2007 |
|
Launch date |
22/05/2009 |
|
Date of completion |
12/08/2010 |
|
Builder |
Korabostroitelnitza Ruse AD (Rousse Shipyard, Rousse) Ruse |
|
Yard number |
821 |
|
Hull material |
Steel |
|
Movable grain bulkheads |
2 pieces for 8 positions |
|
Continuous decks |
1 |
|
Main engine |
1X MaK 6 M32C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 3.000 kW Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Generators |
3x MAN D2876LE301 main diesel generatorsets |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2x box shaped Hold 1: 25,20 x 12,72 x 10,56 m Hold 2: 61,60 x 12,72 x 10,56 m |
|
Cargo hold capacity |
10.980 m³ / 387.750 ft³ |
|
Hold ventilation |
6x Air changer / hour |
|
Number of hatches |
2 Hatch 1: 25,20 x 12,80 m Hatch 2: 61,60 x 12,80 m |
|
Hatch type |
Pontoon covers |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
IFO: 489 m³ MGO: 63 m³ Fresh water: 42 m³ Ballast: 4.292,9 m³ |
|
Anchor equipment |
Length: 492,00 m Diameter: 44 mm |
|
Manager |
Boomsma Shipping B.V. |
|
Commerical manager |
NewTide Chartering |
|
Registered owner |
Scheepvaartonderneming MS "FRISIANA II" C.V. |
|
Latest data adjustment |
12 February 2019 |
