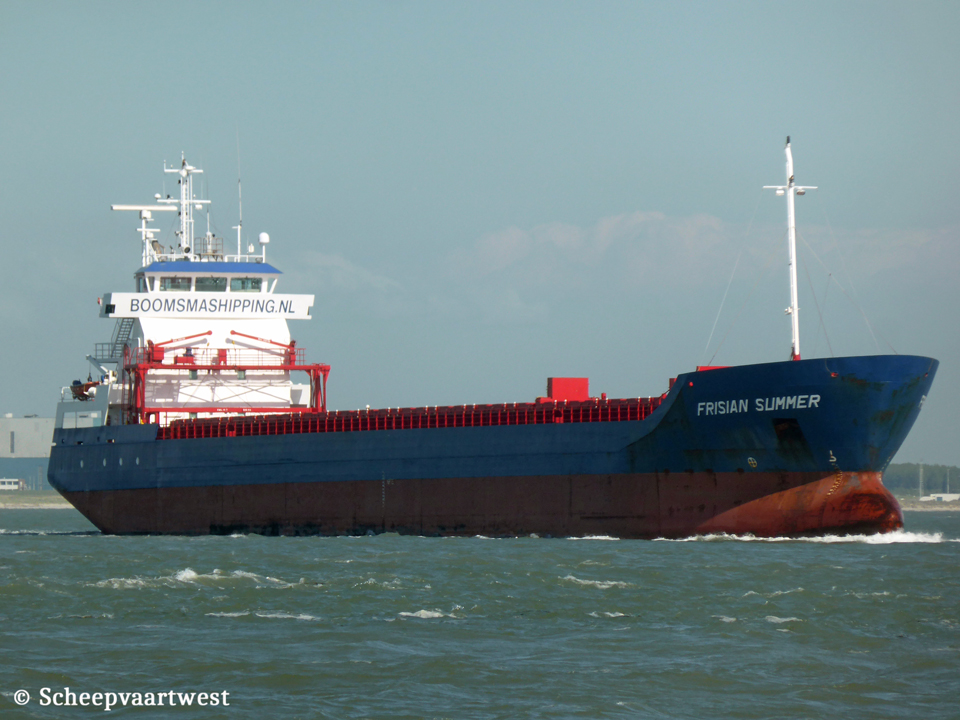

Frisian Summer IMO 9367762 07

Westerschelde 21 May 2015

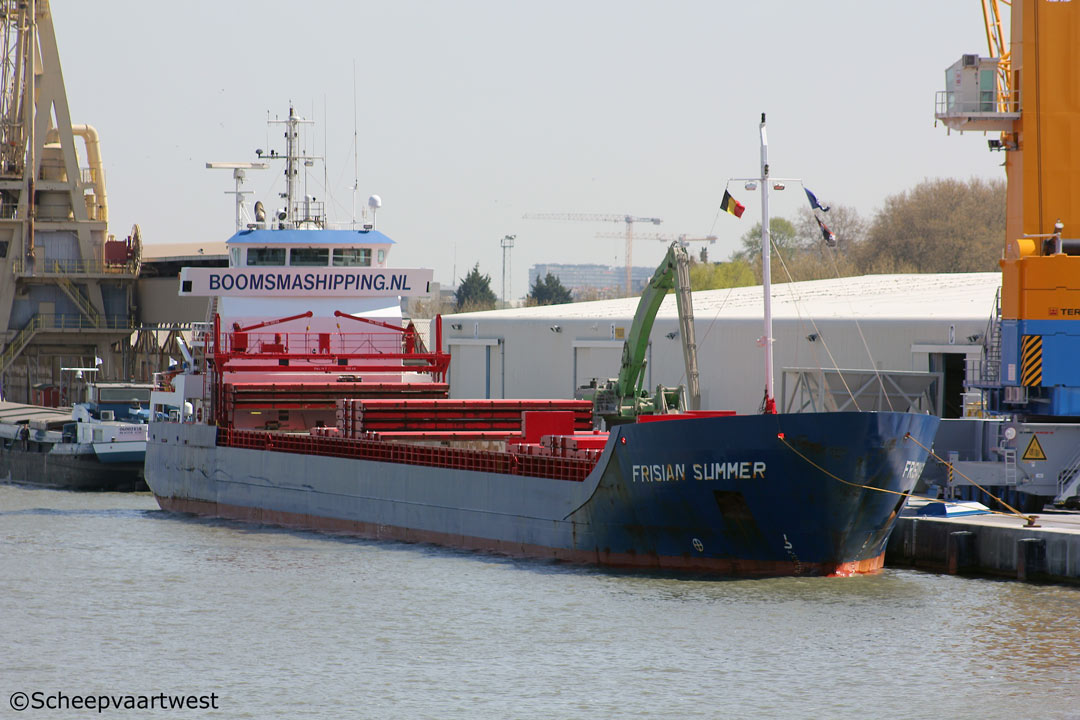

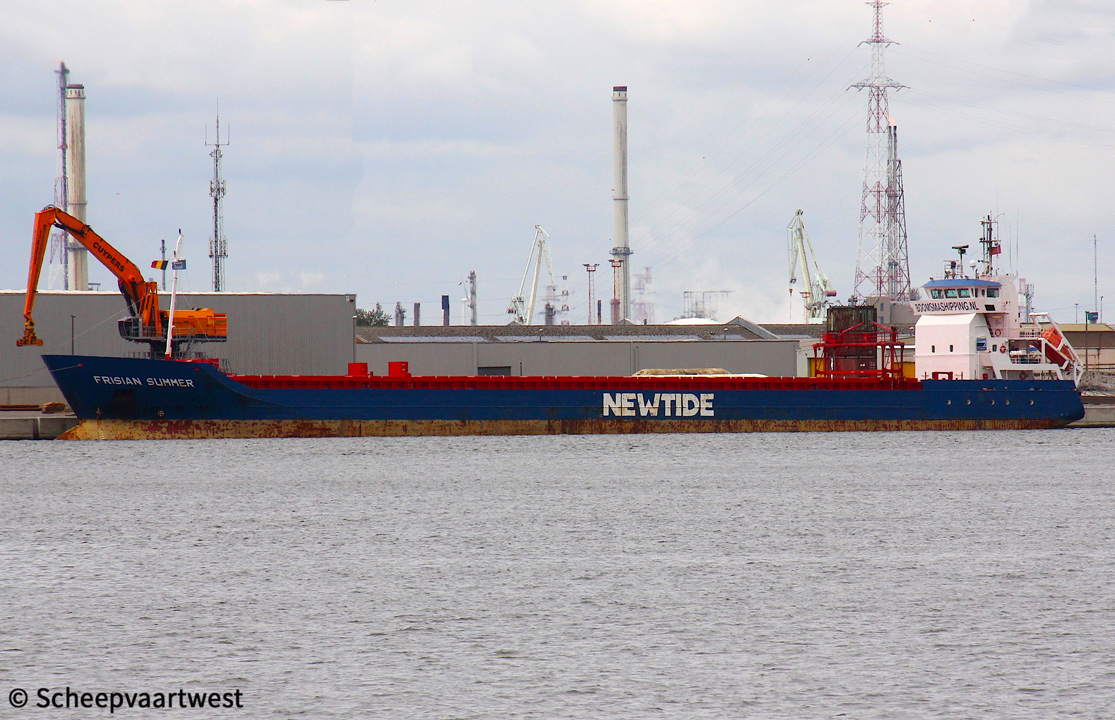

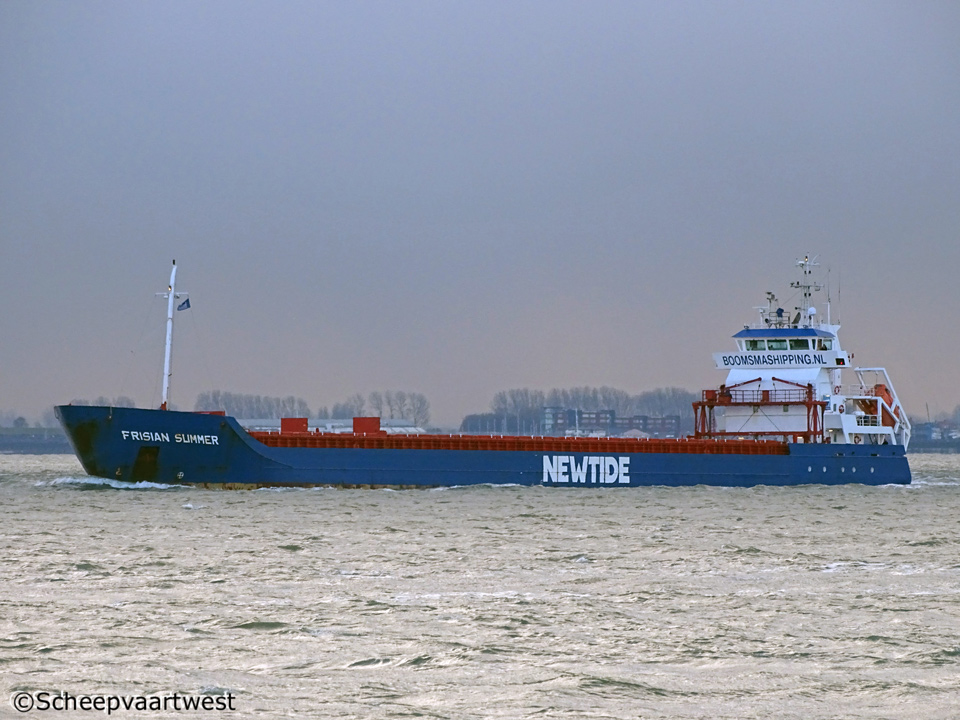

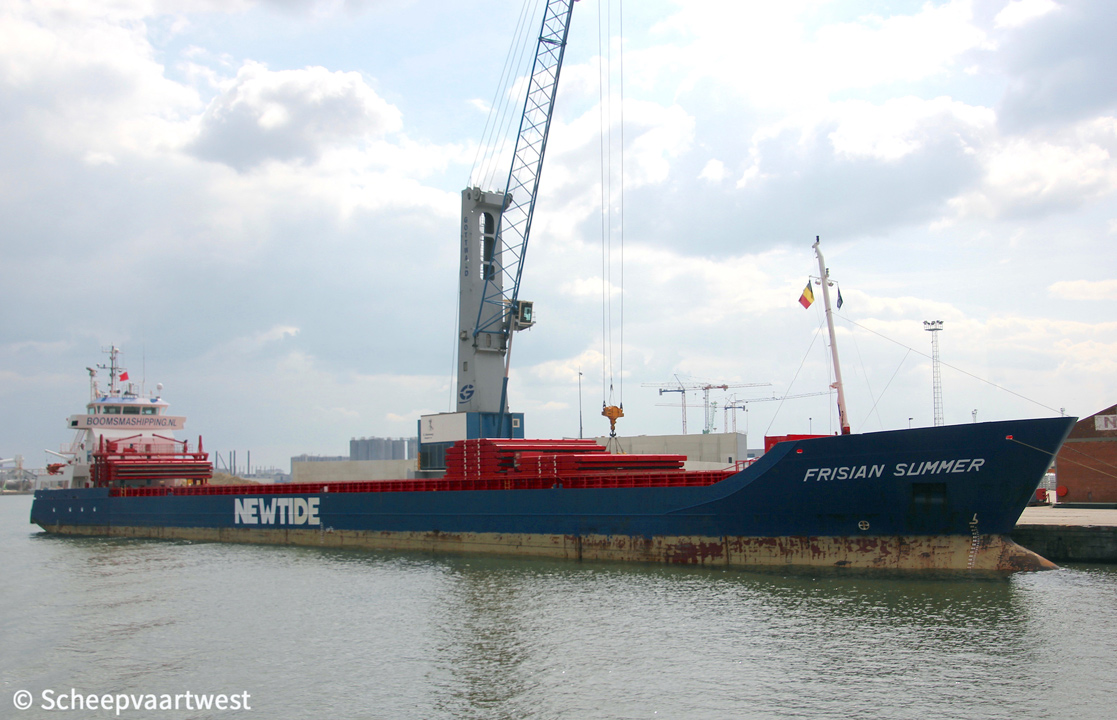

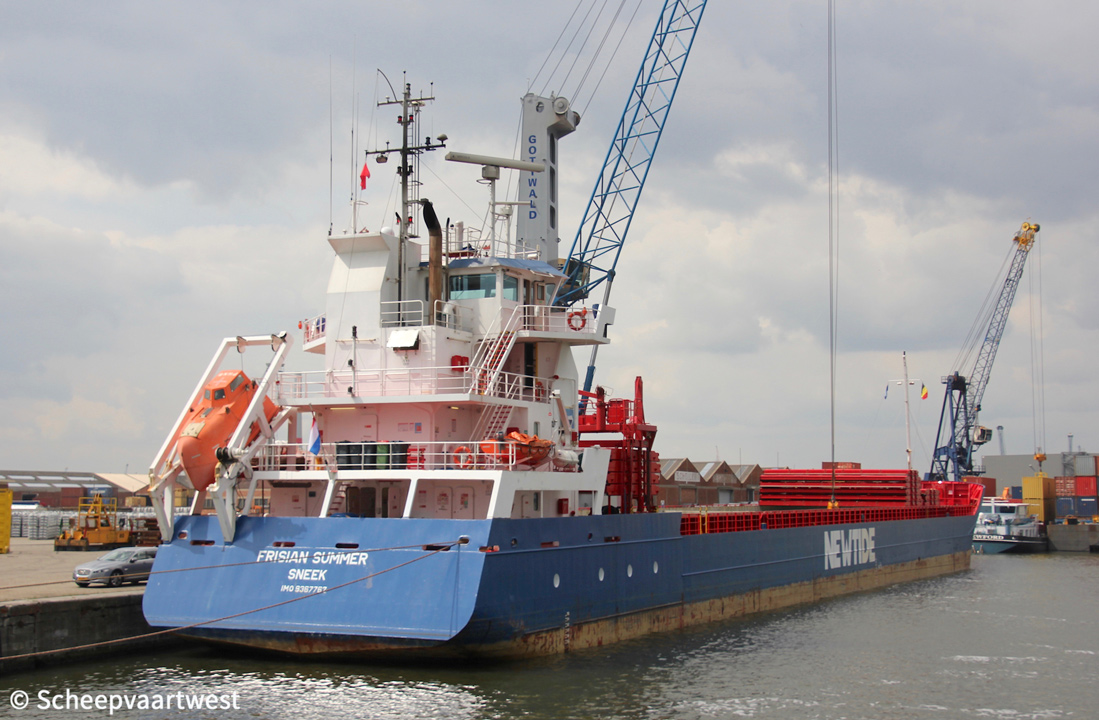

Frisian Summer 02   Frisian Summer 01   Frisian Summer 04   Frisian Summer 03   Frisian Summer 05
Westerschelde 12/12/17   Antwerpen 21/04/15 Antwerpen 07/05/19 Antwerpen 07/05/19 Antwerpen 14/07/19

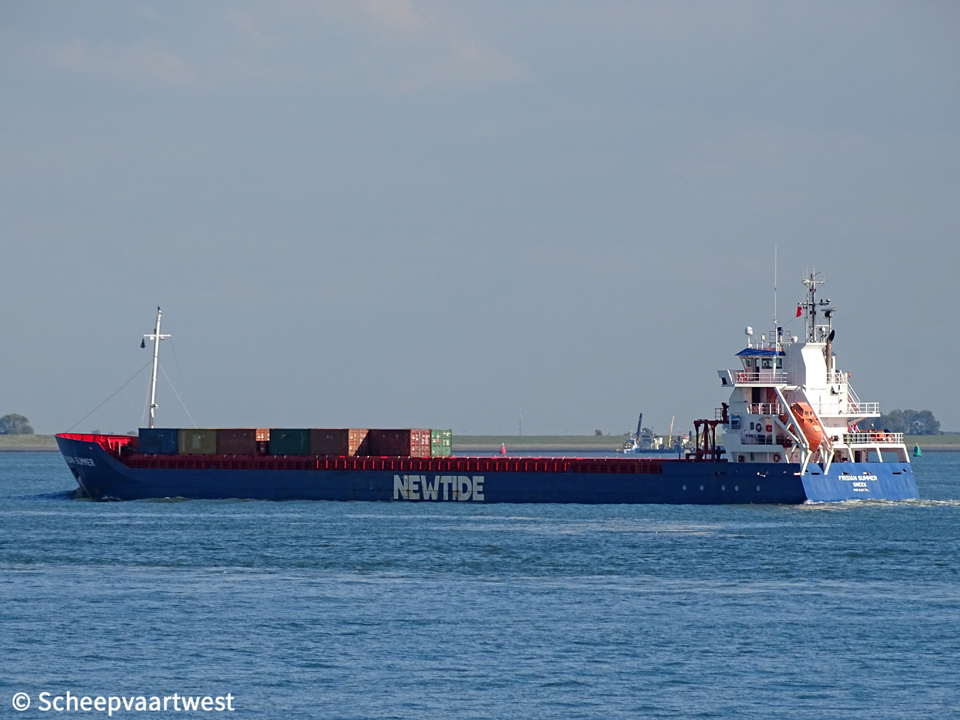

Frisian Summer 06
Westerschelde 25/09/18


Name

FRISIAN SUMMER

Type

Multi-purpose cargo ship - Box shaped - Strengthened for heavy cargo

IMO-number

9367762

Call sign

PHNB

Flag

The Netherlands

Port of registry

Sneek

GT

4.087 t

DWT

Summer: 6.582 t

NT

1.747 t

Number of 20ft containers

256

Length

118,90 m overall

111,69 m between perpendiculars

Breadth

13,45 m extreme

13,35 m moulded

Draught

Max. summer: 6,08 m

Air draft

25,00 m in ballast

Depth

9,10 m moulded

Speed

10,0 knots loaded

11,5 knots in ballast

Built

2008

Keel laid

23/12/2004

Launch date

2007

Date of completion

25/01/2008

Builder casco

Port Weller Dry Docks

St. Catharines

Canada

Yard number: 82

Builder completion

Peters Shipyards BV

Kampen

The Netherlands

Yard number: 815

Hull material

Steel

Movable grain bulkheads

3x Pieces in hold 2, for 9 positions including storage positions

Continuous decks

1

Main engine

1x Wärtsilä 6L26A2 - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine 2.040 kW / 2.774 hp at 1.000 rpm

Starter type: Compressed air

Propellers

1x Controllable pitch propeller - 4 blades

Electric installations

400/230 Volt

Shaft generator

1x 435 kVA

Generators

2x Sisudiesel type 634 DSBIG - 6 cylinder 108 x 135 mm diesel engines each 150 kW at 1.500 rpm coupled with Stamford UCM274H13 generators each 175 kVA

Built: 2007

Emergency generator

1x Sisudiesel diesel type 420 DSRG - 4 cylinder 108 x 120 mm diesel engine 70 kW at 1.500 rpm connected to a Stamford UCM274C13 generator 77 kVA

Built: 2007

Bow thruster

1x Veth tunnel thruster type VT-240 met E-motor 280 kW at 1.500 rpm

Number of holds

2x Box shaped

Hold 1: 18,70 x 11,20 x 9,00 m

Hold 2: 59,90 x 11,20 x 9,00 m

Cargo hold capacity

7.923 m³ / 279.798 ft³

Hold ventilation

6 air changes / hour

Number of hatches

2

Hatch 1: 18,70 x 11,20 m

Hatch 2: 59,90 x 11,20 m

Hatch type

Pontoon covers - 13 pieces

Top of hatch coaming

10,00 m above baseline

Max. permitted loads

Tank top: 15,0 t/m²

Hatchcovers: 1,6 t/m²

Tank capacities

IFO: 333 m³

MGO: 37 m³

Fresh water: 42 m³

Ballast water: 2.378 m³

Manager

Boomsma Shipping BV

Hegedyk 6

8601 ZR Sneek

The Netherlands

Chartering

NewTide

Maastoren - 32nd floor, Wilhelminakade 1

3072 AP Rotterdam

The Netherlands

Owner

Beheermaatschappij Frisian Summer

Hegedyk 6

8601 ZR Sneek

The Netherlands

Previous owners

01/2008 - 11/2008 Scheepvaartonderneming M/S Frisian Summer CV, Sneek - The Netherlands

Latest data adjustment

27 November 2023
