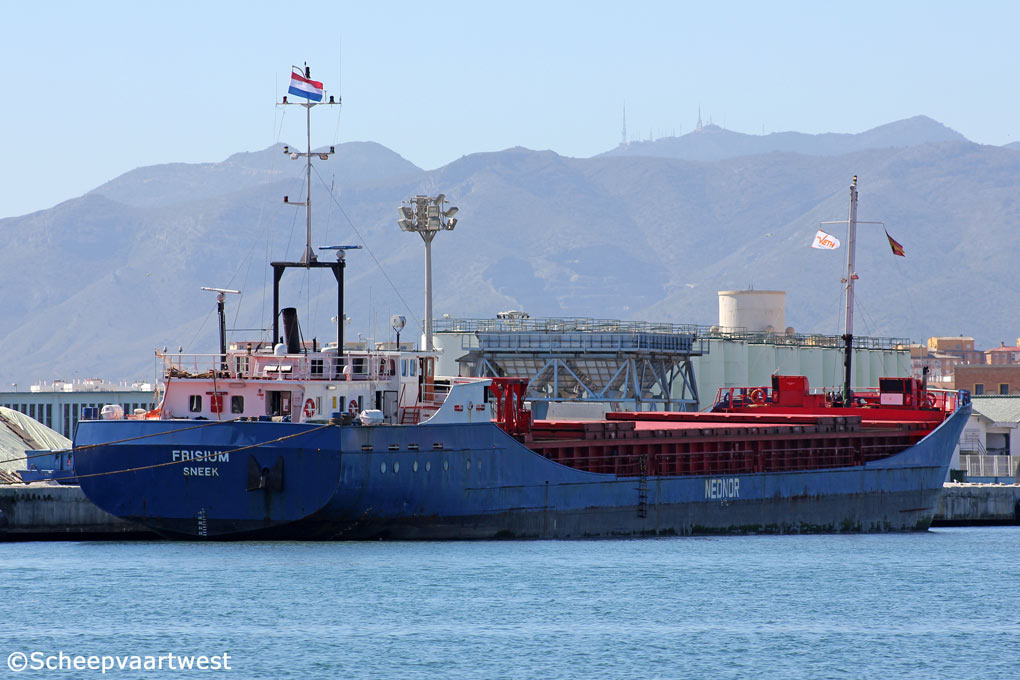

Malaga - Spain 23 February 2014 |
|
Name |
FRISIUM |
|
Previous names |
1992 - 05.1998 Thalassa |
|
Type |
General cargo ship - Strengthened for heavy cargo Box shaped |
|
IMO-number |
9013048 |
|
Call sign |
PHYQ |
|
Flag |
The Netherlands |
|
Port of registry |
Sneek |
|
GT |
1.786 t |
|
DWT |
Summer: 2.255 t |
|
NT |
949 t |
|
Length |
87,00 m overall 82,86 m Between perpendiculars |
|
Breadth |
12,40 m extreme |
|
Draught |
Max.: 3,74 m |
|
Air draft |
7,90 m in ballast |
|
Depth |
4,90 m moulded |
|
Speed |
9,5 knots loaded 10,5 knots in ballast |
|
Built |
1992 |
|
Keel laid |
06.05.1991 |
|
Launch date |
01.02.1992 |
|
Date of completion |
03.1992 |
|
Builder |
Scheepswerf Peters B.V. |
|
Yard number |
430 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
Grain bulkhead: 1x Moveable bulkhead for 3 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Stork-Wärtsilä 9FHD240G - 4 stroke 9 cylinder 240 x 260 mm diesel engine - reduced to 749 kW at 690 rpm Year of manufacture: 1991 Manufacturer: Stork-Wärtsilä Diesel B.V. |
|
Propellers |
1x Solid propeller - aft at 227 rpm |
|
Electric installations |
2x Plants each 380/220 V - 91 kVA 1x Plant 380 V - 48 kVA |
|
Generators |
2x Main diesel generatorsets each 91 kVA |
|
Emergency generator |
1x Diesel generatorset 48 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar |
|
Bow thruster |
1x Bow thruster SNIJDER HASSELT 180 kW, forward |
|
Number of holds |
1 60,60 x 10,10 x 5,71 m |
|
Cargo capacity |
Grain: 3.500 m³ / 123.000 ft³ Bales: 3.486 m³ |
|
Number of hatches |
1 60,60 x 10,10 m |
|
Type of hatch |
Pontoon covers (10 pieces) |
|
Strength |
Tanktop: 8,0 t/m² Hatchcovers: 1,47 t/m² |
|
Tank capacities |
Bunker: 108 m³ MGO Freshwater: 19 m³ Ballast water: 1.139 m³ |
|
Anchor equipment |
3x Anchors weight each 1.140 kg Chain length: 385,00 m |
|
Crew size |
6 |
|
Manager |
Boomsma Shipping B.V. |
|
Operator |
Nednor |
|
Owner |
Beheermaatschappij Frisium B.V. |
|
Registered owner |
Rederij Frisium BV |
|
Latest data adjustment |
23 March 2014 |
