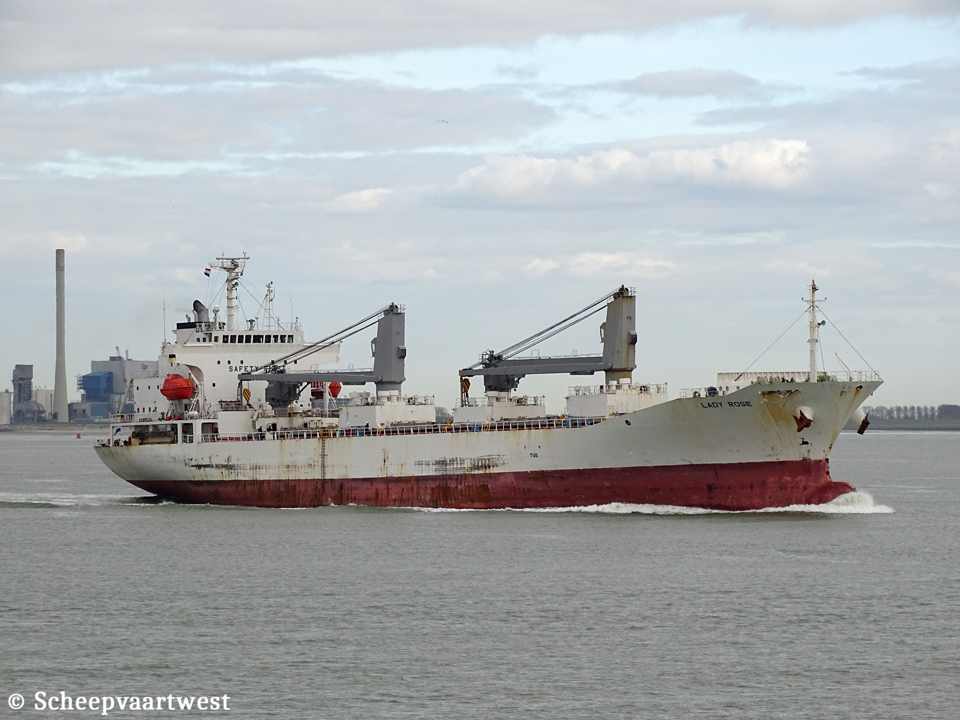

Lady Rose IMO 9355032 02

Westerschelde 18 March 2020

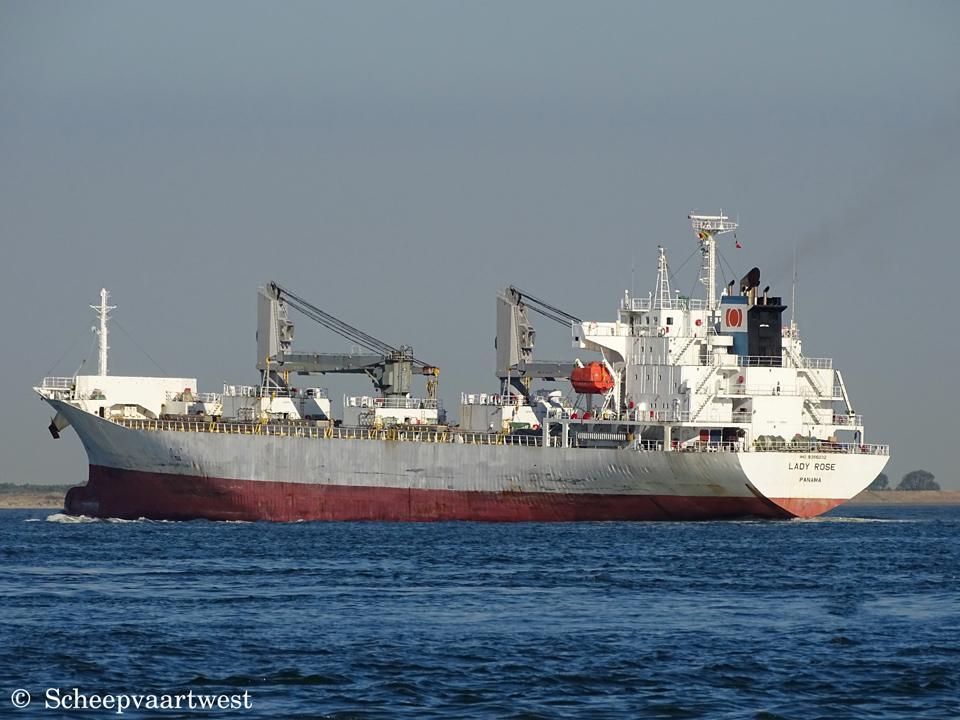

Lady Rose 01
Westerschelde 02/08/18









Name

LADY ROSE

Type

Refrigerated cargo carrier - Containers carriage

IMO-number

9355032

Call sign

3EML2

Flag

Republic of Panama

Port of registry

Panama City

GT

9.576 t registered

DWT

Summer: 10.630,05 t

NT

5.562 registered

Number of 20ft containers

176

Reefer capacity

100

Length

143,00 m overall

Breadth

22,70 m moulded

Draught

Max: 9,02 m full load

Moulded L x B x D

133,00 x 22,70 x 13,40 m

Registered L x B x D

134,17 x 22,70 x 13,40 m

Freeboard

4.413 mm

Depth

13,40 m moulded

Speed

Max: 22,3 knots

Built

2007

Keel laid

13/12/2006

Launch date

30/05/2007

Date of completion

06/09/2007

Builder

Kitanihon Shipbuilding Co., Ltd.

Hachinohe

Japan

Yard number

373

Hull material

Steel

Main engine

1x Mitsubishi 8UEC50LS - 2 stroke single acting 8 cylinder 500 x 1.950 mm combustion engine 11.560 kW at 127,0 rpm

Manufacturer: Akasaka Diesels Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 520 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler- 8,0 bar

Evaporation: 1,07 t/h

Manufacturer: Miura Protec Co., Ltd.

Generators

4x Generatorsets - total 4.205 kVA

Number of holds

4

Reefer capacity

15.648 m³

Hold ventilation

90 air circulation per hour

Number of hatches

4

Temp. compartments / zones

15/8

Minimum deck height

2,30 m

Min temp

-25°

Tank capacities

Fuel oil: 1.691 m³

Fresh water: 367 m³

Cargo gear

2x Cranes - SWL 40,0 t each

Manager

Apex Ship Management Pte Ltd.

37 Jalan Pemimpin

#07-15 Mapex

Singapore 577177

Republic of Singapore

Operator

La Compangnie Fruitière

33 Boulevard Ferdinand de Lesseps

13014 Marseille

France

Register owner

Rising Sun Line SA

c/o Shinsei Kaiun Co. Ltd.

8-17 Nihonbashihon-cho 4-Chom Chuo-ku

Tokyo-to

Japan

Latest data adjustment

11 January 2021
