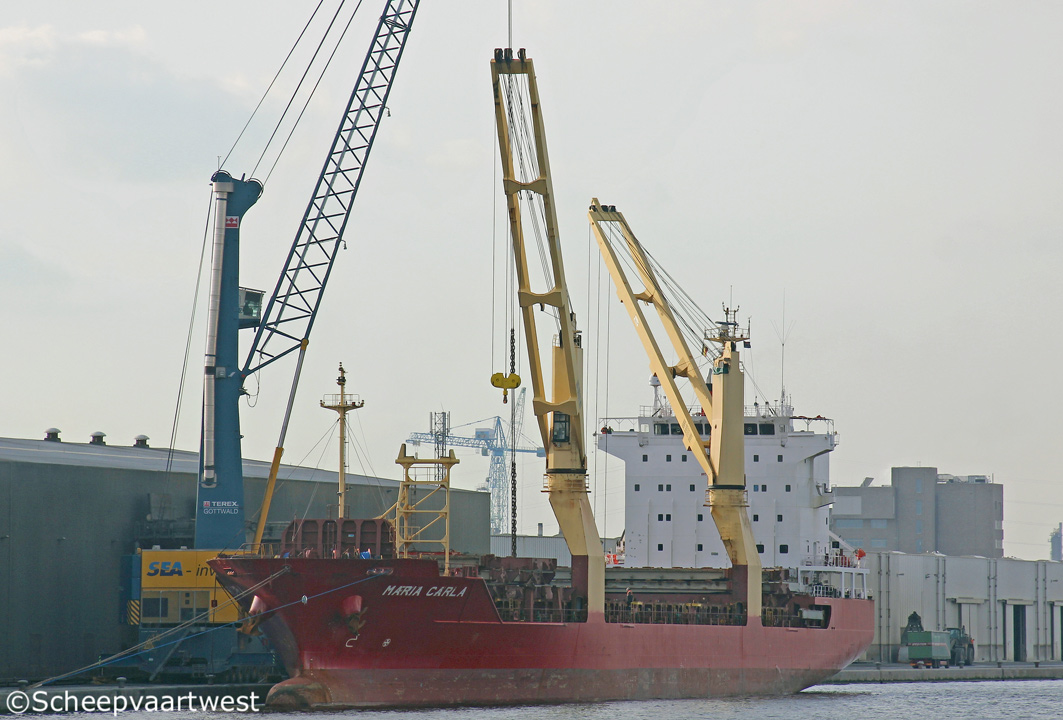

Maria Carla - IMO 9314375

Antwerpen 30 January 2018

Name

MARIA CARLA

Previous names

09/2005 - 12/2005 SCL Leman

12/2005 - 12/2010 Safmarine Leman

12/2010 - 07/2011 SCL Leman

07/2011 - 07/2012 Nirint Neerlandia

07/2012 - 12/2015 Neerlandia

12/2015 - 09/2017 SCL Leman

Type

Multi-purpose dry cargo ship - Containers in holds and on hatches - Strengthened for heavy cargo

IMO-number

9314375

Call sign

8PAN4

Flag

Barbados

Port of registry

2005 - 2017 Switzerland, Basel - Call sign: HBEJ

GT

9.900 t

DWT

Summer: 12.576 t

NT

4.483 t

Ligthship

5.678 t

Number of 20ft containers

766

On deck: 460

Container capacity 14t

536

Reefer capacity

120

Length

139,99 m overall

133,50 m between perpendiculars

Breadth

21,54 m extreme

Draught

8,42 m

Depth

11,65 m

Speed

Service: 12,0 knots

Max: 17,0 knots

Built

2005

Keel laid

01/07/2005

Launch date

25/09/2005

Delivery date

20/12/2005

Builder

Kyokuyo Shipbuilding & Iron Works Co., Ltd.
Shimonoseki Yamaguchi-Prefecture
Japan

Yard number

458

Hull material

Steel

Main engine

1x Hitachi/B&W 8S42MC - 2 stroke 8 cylinder diesel engine 8.200 kW / 11.160 hp at 136 rpm

Manufacturer: Hitachi Zosen Corp.-Burmeister & Wain, Innoshima - Japan

Propellers

1x Fixed blade propeller (five blades)

Generators

3x Main diesel generatorsets each 850 kW

Bow thruster

1x Controllable pitch propeller 500 kW / 680 hp

Number of holds

3x Box shaped type; partly of slant construction in hold 1 forw. and 3 aft for bulk cargo

Hlod 1: 26,60 x 6,80/17,90 m

Hold 2: 51,80 x 17,90 m

Hold 3: 13,30 x 17,90 m

Cargo hold capacity

17.010 m³

Tween deck

Hold 2 fitted with a removable tween deck
2 T/D panels can be used as T/D in hold 3

Max permitted loads

Tank top: 18,0 t/m²

Tween deck: 3,5 t/m²

Hatch cover: 3,5 t/m²

Anchor equipment

Length: 550,00 m

Diameter: 54 mm

Cargo gear

2x Electro-Hydraulic deck cranes - SWL 80 t each

In combination: 160 t

Crew

18

Operator

Maria Carla Marine Corp.

Barbados

Latest data adjustment

16 February 2018
