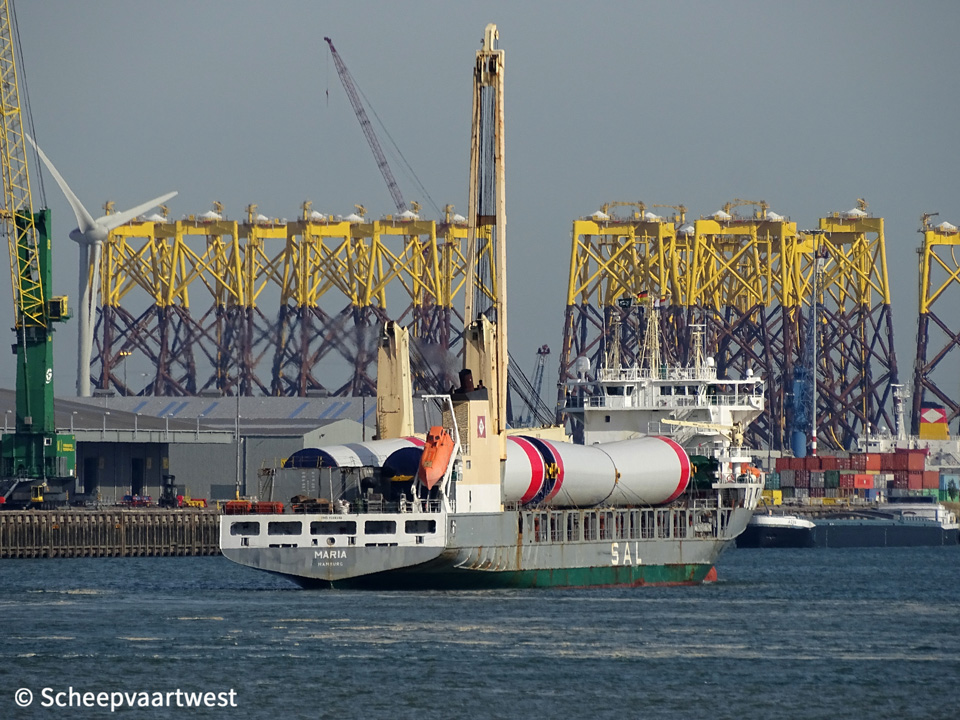

Maria 02

Vlissingen 12 October 2018



Maria 01
WS 12/10/18













Name

MARIA

Type

General cargo ship - Strengthened for heavy cargo - Heavy lift carrier - Type 161b

IMO-number

9266566

Call sign

DPWD

Flag

Germany

Port of registry

Hamburg

Previous flags

2004 - 2018 Antigua & Barbuda, St. John’s - Call sign: V2ON1

GT

8.383 t

Suez: 8.585,57 t

DWT

8.919 t

NT

4.196 t

Suez: 6.934,99 t

Panama: 7.624 t

Displacement

14.980 t

Number of 20ft containers

830

Length

151,67 m overall

142,10 m between perpendiculars

Breadth

21,02 m extreme

20,40 m moulded

Draught

Summer: 7,85 m

Air draft

34,20 m (jibs in rest)

56,66 m (jibs upright)

Freeboard

2.179 mm

Depth

10,50 m moulded

Speed

Max: 19,0 knots

Built

2004

Keel laid

03/03/1999

Launch date

01/01/2003

Date of completion

30/01/2004

Builder

J.J. Sietas Kg Schiffswerft GmbH & Co.

Neuenfelder Fährdeich 88

21129 Hamburg

Germany

Yard number

1138

Hull material

shipbuilding steel (higher tensile)

Hull type

Single hull partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MAN-B&W 9L48/60 - 4 stroke9 cylinder combustion engine 9.450 kW / 12.852 hp at 500 rpm

Reduced power: 4.995 kW

Transmission: main propulsion acts through gear on the propellershaft

Starter type: compressed air direct

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 35,0 m³

1x Thermal oil heater, exhaust heated - 10,0 bar

Heating surface: 157,5 m³

Electric installations

1x Plant 400/ 220 V - 700 kVA

1x Plant 400/ 220 V - 700 kVA

1x Plant 400/ 220 V - 700 kVA

1x Plant 400 V - 1625 kVA

1x Plant 400 V - 435 kVA

1x Plant 400 V - 16 kVA

Shaft generator

1x 1.625 kVA

Generators

3x Volvo D30A-MS main diesel generatorsets each 700 kVA

Emergency generator

1x Volvo TAMD 163 A diesel generatorset 435 kVA

Batteries

1x Battery for emergency lighting 16 kVA

Compressed air receivers

2 Receivers, each 1.000 lighters - 30,0 bar

1x Receiver 500 litres - 14,0 bar

Bow thruster

1x Lips 900 kW

Number of holds

1

82,90 × 15,80 × 10,95m

Hold capacity

13.604 m³

Deck

124,00 × 20,50 m

Free deck space

2.363 m²

Number of hatches

1

Hatch cover

MacGregor hydraulic operated combined folding type and lift and roll type

Tank capacities

IFO: 1.106,35 m³

MGO: 224,23 m³

Fresh water: 137,71 m³

Ballast: 3.992,12 m³

Anchor equipment

3x Anchors weight each 4.890 kg

Length: 550,00 m

Diameter: 50 mm

Cargo gear

2x NMF deck cranes - SWL 350 t

1x NMF deck cranes - SWL 250 t

Combinable SWL 700 t

Auxiliary hoist:

2x 40 t SWL

1x 35 t SWL

Crew size

22

Manager

SAL Ship Management UG (haftungsbeschränkt) & Co. KG

Brooktorkai 20

20457 Hamburg

Germany

Operator

SAL Heavy Lift GmbH

Registered owner

SAL Heavy Lift GmbH

Group

Haren & Partner

Hermann-Hollerith-Straße 10

28355 Bremen

Germany

Latest data adjustment

03 June 2020
