Westerschelde 04 August 2017 |
 |
| Westerschelde 31/05/17 |
|
Name |

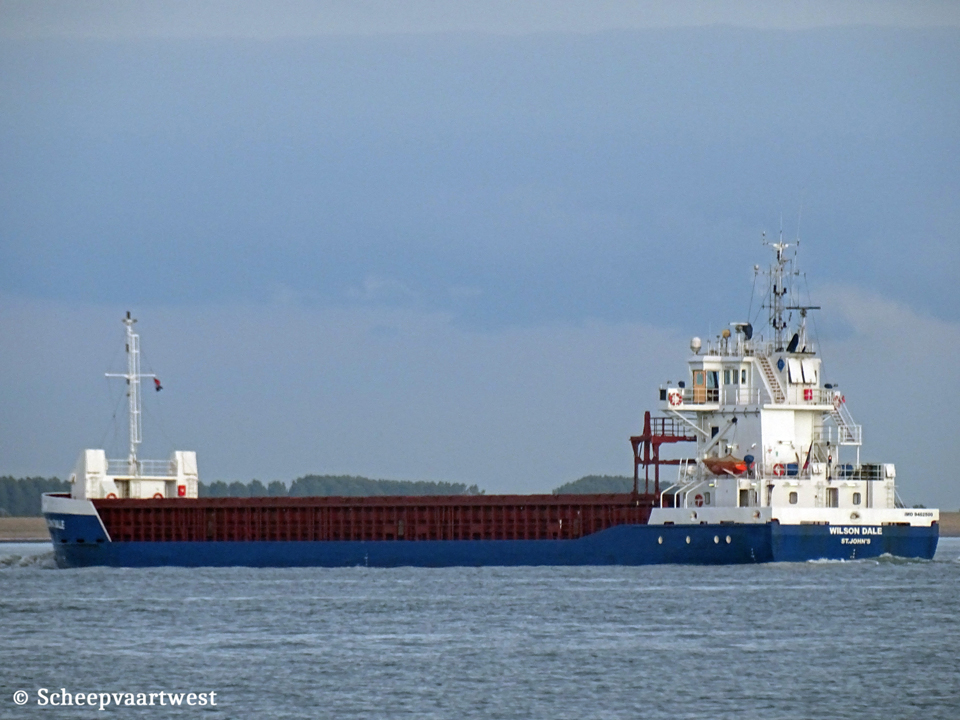

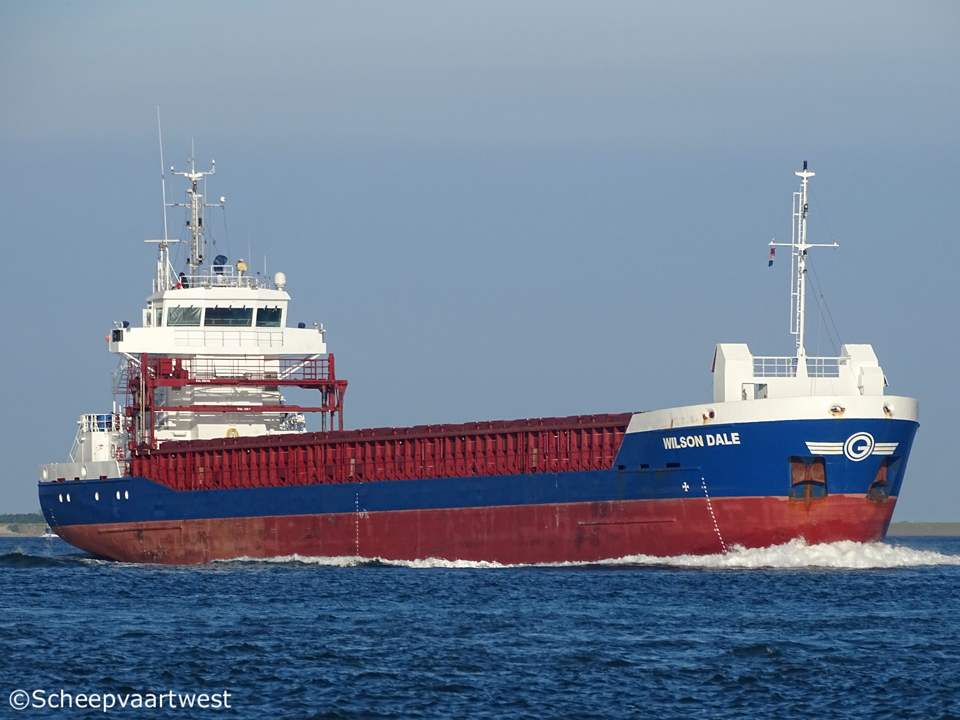

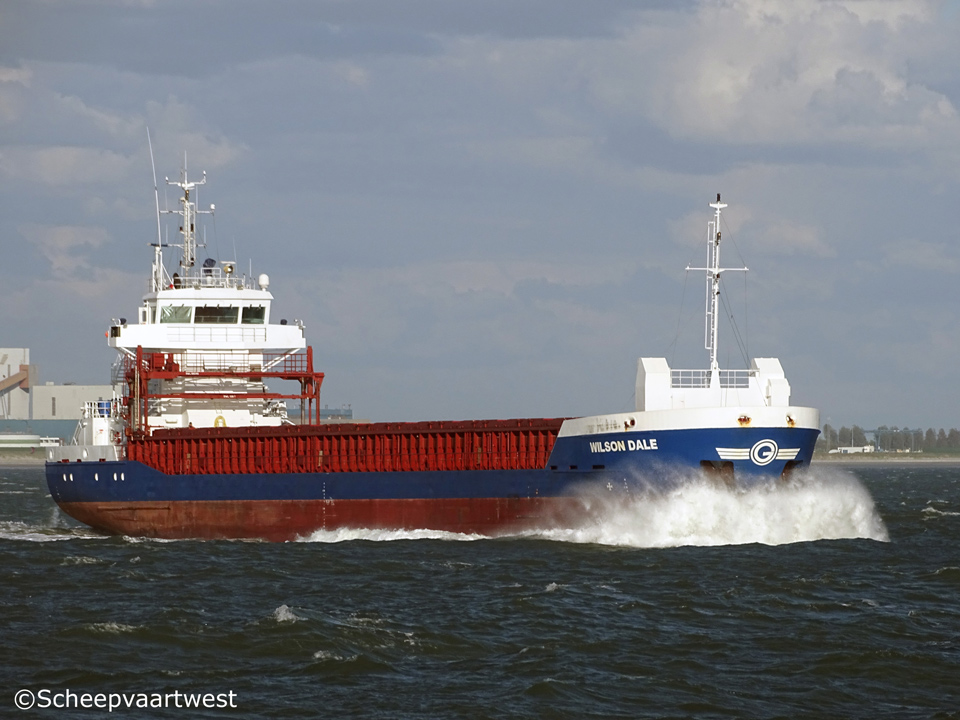

WILSON DALE |
|
Previous names |
Carolin G |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9462500 |
|
Call sign |
V2DX9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.545 t |
|
DWT |
Summer: 3.797 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 108 On deck: 80 Total: 188 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Summer: 5,42 m Winter: 5,31 m |
|
Air draft |
Max.: 21,84 m |
|
Keel to top antenna fwd/aft |
20,46 / 25,04 |
|
Keel to top antenna fwd/aft - lowered mast |
12,85 / 25,04 |
|
Depth |
7,00 m moulded |
|
Speed |
12,3 knots |
|
Built |
2008 |
|
Keel laid |
25.07.2007 |
|
Launch date |
16.05.2008 |
|
Date of completion |
01.11.2008 |
|
Builder |
B.V. Scheepswerf Damen Bergum |
|
Yard number |
9371 |
|
Hull material |
Steel |
|
Bulkheads |
2 |
|
Movable bulkheads |
2x Moveable bulkheads, with 11 bulkhead positions |
|
Main engine |
1x MaK 8M20 C8 - 8 cylinder diesel engine 1.520 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
330 kVA |
|
Generators |
1x Sisu 634 DSBIG diesel generatorset 175 kVA |
|
Emergency generator |
1x Sisu 420 DSRG diesel generatorset 77 kVA |
|
Bow thruster |
1x 220 kW |
|
Number of holds |
1 62,52 x 10,10 x 8,43 m |
|
Cargo hold capacity |
Bale & grain: 188.157 ft³ / 5.328 m³ |
|
Number of hatches |
1 62,53 x 10,10 m |
|
Hatch type |
Pontoon, Gantry crane |
|
Max. permitted loads |
Tank top: 15,0 t/m² Deck/hatch cover: 1,6 t/m² |
|
Tank capacities |
Water ballast: 1.372 m³ MGO: 165 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 32 mm |
|
Manager |
Gerdes Bereederungs- und Verwaltungs GmbH |
|
Operator |
Wilson ASA Bradbenken 1 |
|
Owner |
Gerdes Schiffahrts GmbH & Co. KG MS "CAROLIN |
|
Latest data adjustment |
25 October 2017 |
