Westerschelde 05 June 2018 |
 |
|
| Westerschelde 15/12/16 | |
|
Name |

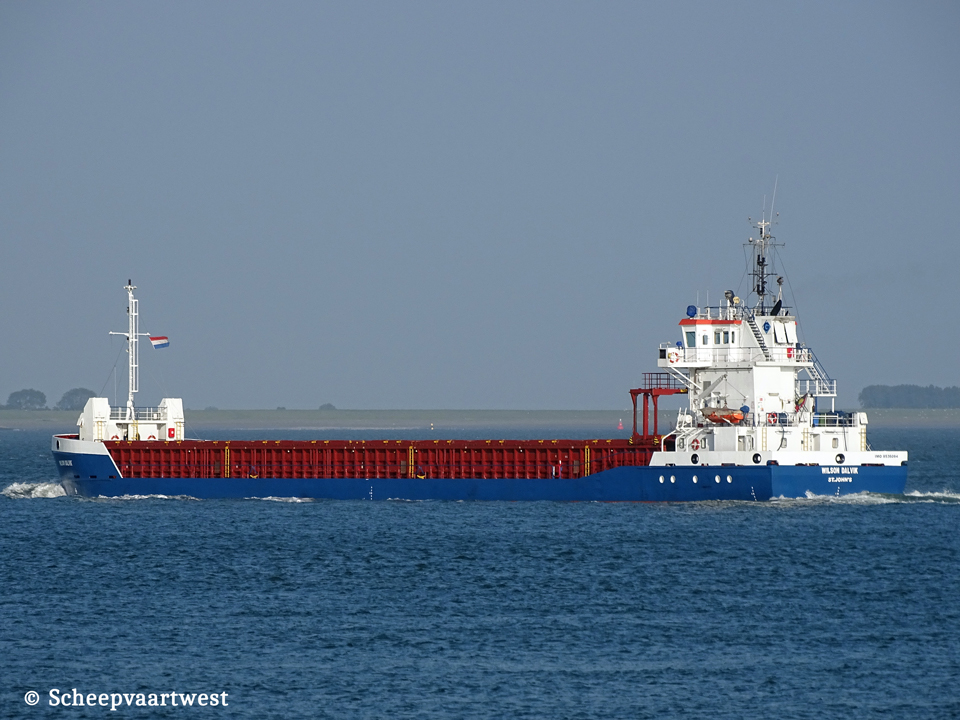

WILSON DALVIK |
|
Previous names |
2010 - 2016 Birgit G. |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9536064 |
|
Call sign |
V2QD5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.545 t |
|
DWT |
Summer: 3.801 t Winter: 3.692 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 108 On deck: 80 Total: 188 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Summer: 5,42 m Winter: 5,31 m |
|
Keel to mast end |
24,80 m |
|
Air draft |
Max.: 22,04 m |
|
Depth |
7,00 m moulded |
|
Speed |
12,3 knots Service: 11,0 knots |
|
Built |
2010 |
|
Keel laid |
14/08/2008 |
|
Launch date |
08/04/2009 |
|
Date of completion |
22/02/2010 |
|
Builder casco |
Brodogradiliste "Tito" Sava Macvanska Mitrovica Yard number: 9402 |
|
Builder completion |
B.V.Scheepswerf Damen Shipyard Bergum The Netherlands |
|
Hull material |
Shipbuilding steel (standard) |
|
Bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW at 1.000 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 226 rpm |
|
Electric installations |
1x Plant 400 V - 175 kVA 1x Plant 400 V - 324 kVA |
|
Shaft generator |
1x 324 kVA |
|
Generators |
1x Main diesel generatorset 175 kVA |
|
Emergency generator |
1x Diesel generatorset 77 kVA |
|
Compressed air receivers |
2x Receivers each 150 litres - 30,0 bar |
|
Bow thruster |
220 kW, forward |
|
Number of holds |
1 61,50 x 10,12 x 8,43 m |
|
Hold capacity |
Grain / bale: 185.402 ft³ - 5.250 m³ |
|
Number of hatches |
2 62,52 x 10,10 m |
|
Hatch type |
Pontoon, Gantry crane |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Deck/hatchcover: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.374,63 m³ Marine gas oil: 165 m³ |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Length: 440,00 m Diameter: 34 mm |
|
Manager |
Gerdes Bereederungs- und Verwaltungs GmbH & Co. KG Hermannstraße 1a 49733 Haren/Ems Germany |
|
Operator |
Wilson ASA Bradbenken 1 N-5835 Bergen Norway |
|
Registered owner |
Birgit G. Shipping Co. Ltd. 9, St. Mary's Street St. John's Antigua and Barbuda |
|
Renamed |
04/2019 Birgit G. Antigua & Barbuda, St. John’s - Call sign: V2QD5 Owner: Birgit G Gerdes Schiffahrts - Germany Manager: Gerdes Bereederungs - Germany |
|
Latest data adjustment |
21 Decenber 2022 |
