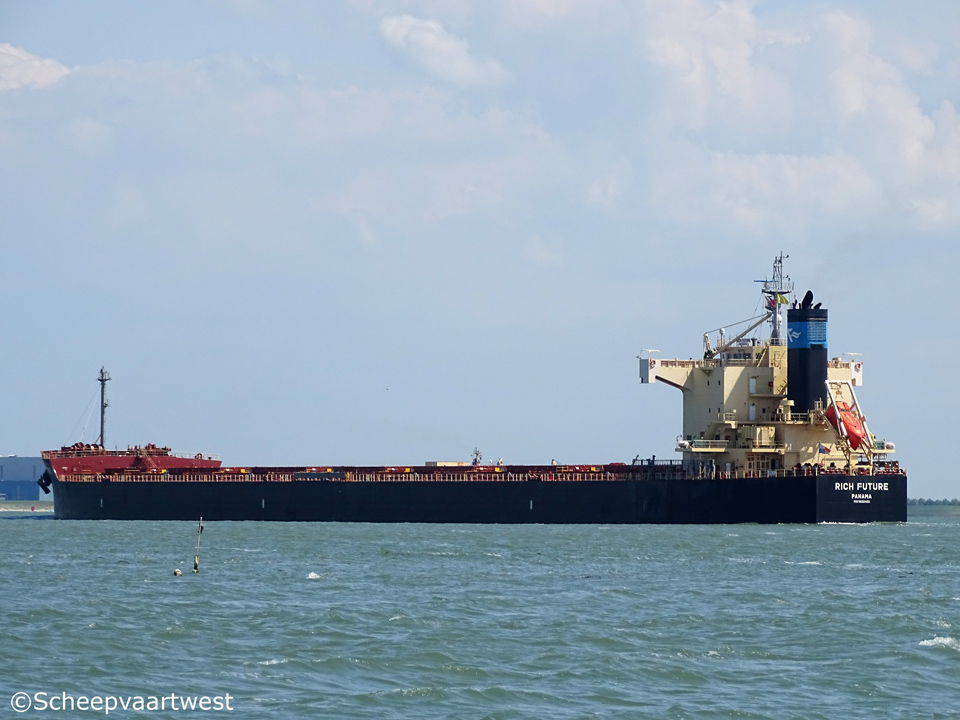

Rich Future 01

Westerschelde 06 August 2017



Name

RICH FUTURE

Type

Bulk carrier - Strengthened for heavy cargo loading - Panamax

IMO-number

9622423

Call sign

3ECD8

Flag

Republic of Panama

Port of registry

Panama City

GT

43.022 t

DWT

82.197 t

NT

27.214 t

Length

228,99 m overall

Breadth

32,26 m moulded

Draught

Summer: 14,43 m

Moulded L x B x D

222,00 x 32,26 x 20,05 m

Registered L x B x D

222,54 x 32,26 x 20,05 m

Freeboard

5.677 mm

Depth

20,05 m moulded

Speed

Max.: 15,8 knots

Built

2013

Keel laid

31.12.2011

Launch date

26.06.2013

Date of completion

27.08.2013

Builder

Tsuneishi Group (Zhoushan) Shipbuilding Inc.
China

Yard number

SS-129

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN B&W 6S60MC-C (Mk 7) - 2 stroke single acting 6 cylinder 600 x 2.400 mm diesel engine 9.710 kW at 97,4 rpm

Manufacturer: CSSC-MES Diesel CO., LTD.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 560 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 2,73 t/h

Manufacturer: Osaka Boiler MFG. Co. Ltd.

Generators

4x Diesel generatorsets total 1.650 kVA

Number of holds

7

Cargo hold capacity

Grain: 97.381 t

Number of hatches

7

Hatch 1: 14,20 x 13,80 m

Hatch 2-7: 17,80 x 15,40 m each

Hatch type

Mac Gregor side rolling-twin panel

Tank capacities

Fuel oil: 3.184 m³

Fresh water: 468 m³

Water ballast: 22.060 m³

Crew size

22

Manager

Fuyo Kaiun Co., Ltd.

Owner

Rich Ocean Shipping Inc.

Latest data adjustment

13 October 2017
