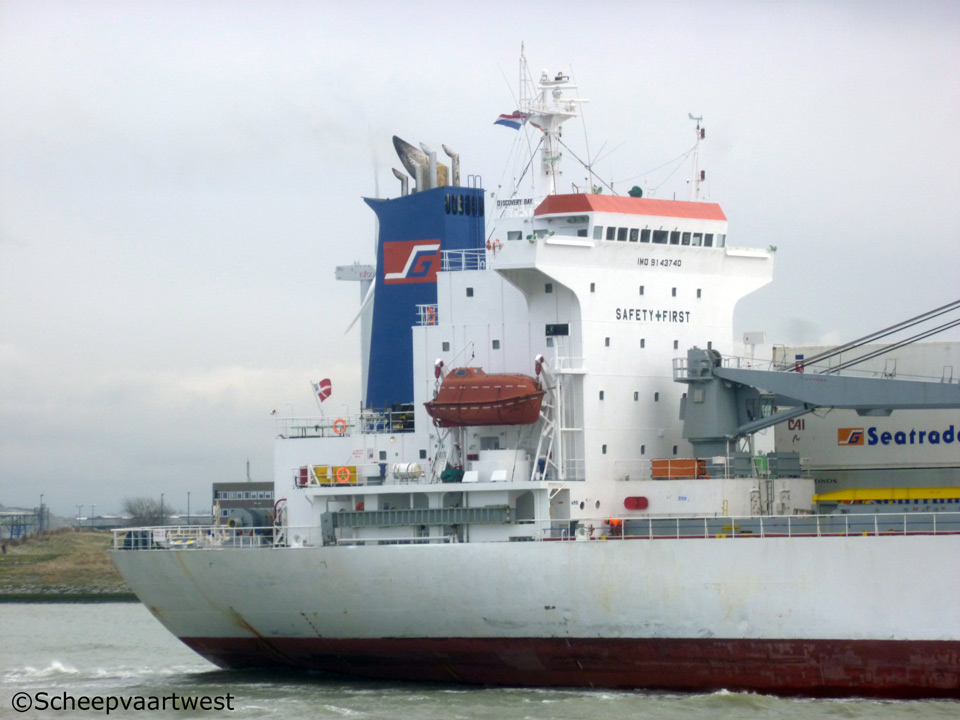

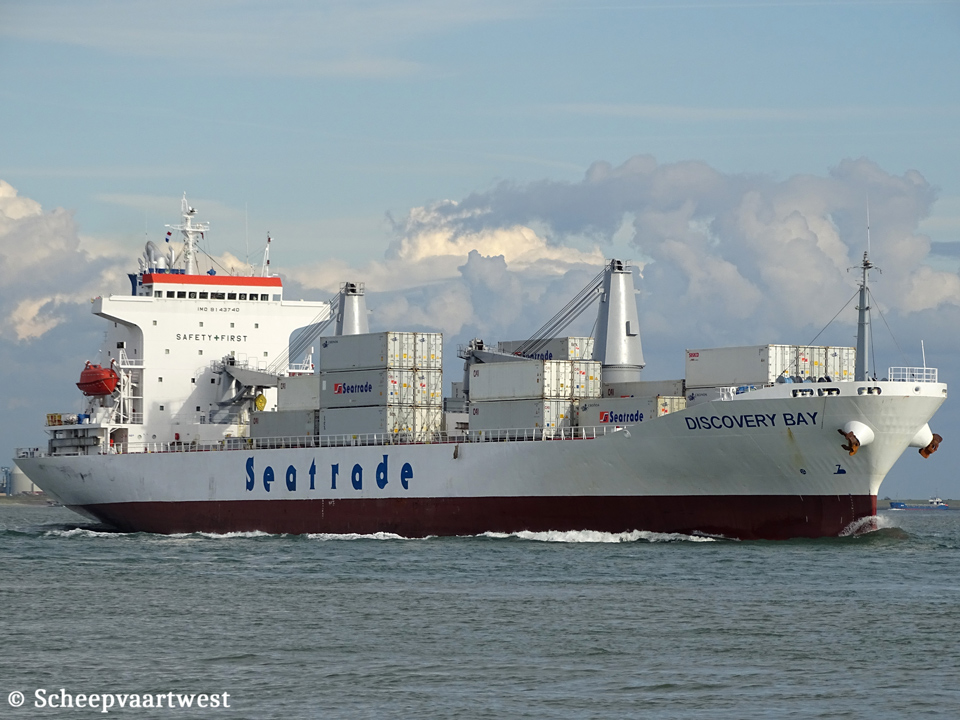

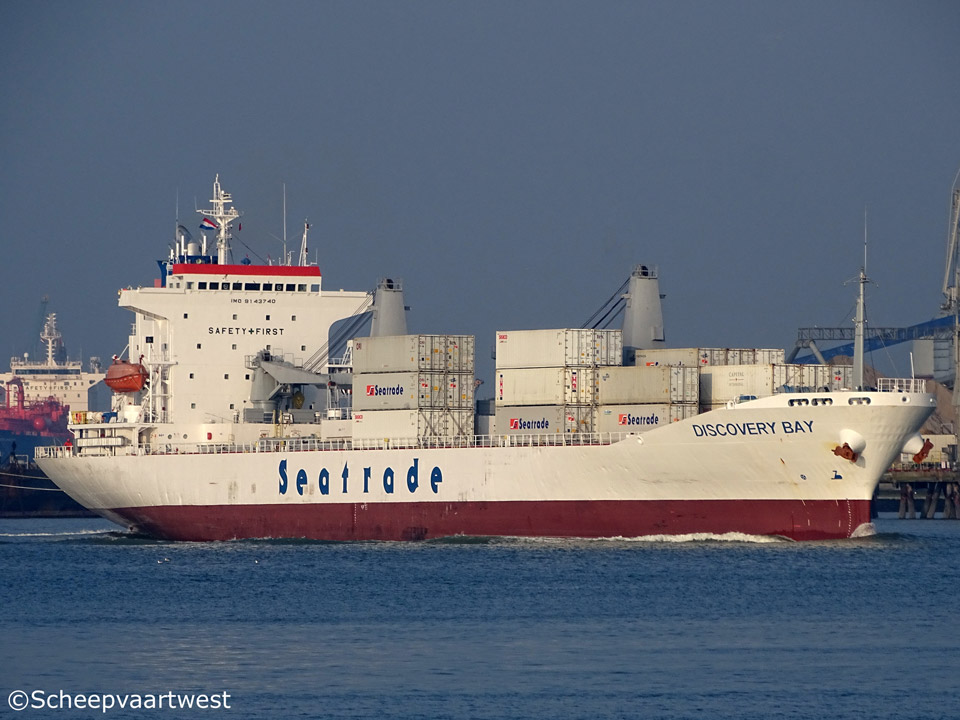

Discovery Bay IMO 9143740 06

Westerschelde 19 September 2017



Discovery Bay 05   Discovery Bay 03   Discovery Bay 04
Westerschelde 04/04/17   Westerschelde 13/02/14 Westerschelde 13/02/14



Name

DISCOVERY BAY

Type

Refrigerated cargo ship - Equipped for carriage of containers

IMO-number

9143740

Call sign

C6OP3

Flag

Bahamas

Port of registry

Nassau

GT

8.924 t

DWT

Summer: 10.100 t

NT

4.685 t

Panama: 7.752 t

Suez: 8.009,12 t

Number of 20ft containers

152 + 24 FEU

Reefer plug

100

Length

142,15 m overall

133,00 m between perpendiculars

Breadth

22,00 m

Draught

8,82 m

Freeboard

4.415 mm

Depth

13,00 m

Speed

21,2 knots

Built

1997

Date of completion

03/02/1997

Builder

Kitanihon Shipbuilding Co., Ltd.

Hachinohe

Japan

Yard number

305

Hull material

Steel

Watertight compartments

9

Continuous decks

1

Main engine

1x Mitsubishi - 2 stroke 8 cylinder 500 x 1.950 mm combustion engine 11.003 kW / 14.950 hp at 124,0 rpm

Built: 1996

Builder: Mitsubishi Heavy Industries Ltd., Akasaka - Japan

Propellers

1x Screw propeller solid - aft at 124 rpm

Boilers

1x CHO Miura 18,00 m² - 5,0 bar

1x CHR Miura 123,00 m² - 5,0 bar

Electric installations

Power voltage: 380 V

Lighting voltage: 110 V

Frequency: 60 Hz

Generators

4x Diesel generatorsets each 800 kVA - 640 kW - 1.200 hp

Bow thruster

1

Number of holds

4

Total capacity of holds

14.809,14 m³ / 534.246 ft³

Number of hatches

4

7,00 x 8,00 m each

Number of compartments

15

Temperature zone

8

Temperature range

-25/+15 C°

Number of pallet

6.486

Cargo space

5.92,70 m²

Tank capacities

Fuel oil 100% : 1.427 m³

Cargo gear

2x Cranes - SWL 10,0 t each

2x Cranes - SWL 40,0 t each

Crew

15

Manager

Seatrade Shipmanagement B.V.

Leonard Springerlaan 17

9727 KB Groningen

The Netherlands

Registered owner

Isolaverde Shipping Co., Ltd.

Bahamas

Latest data adjustment

05 January 2021
