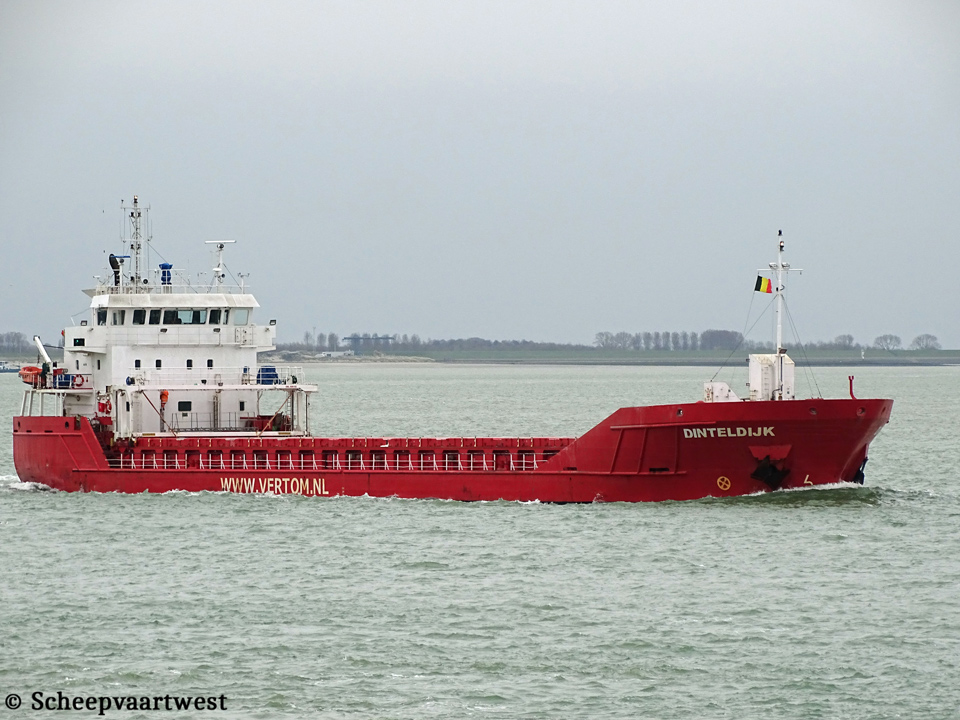

Dinteldijk IMO 9346677 01

Westerschelde 20 March 2020

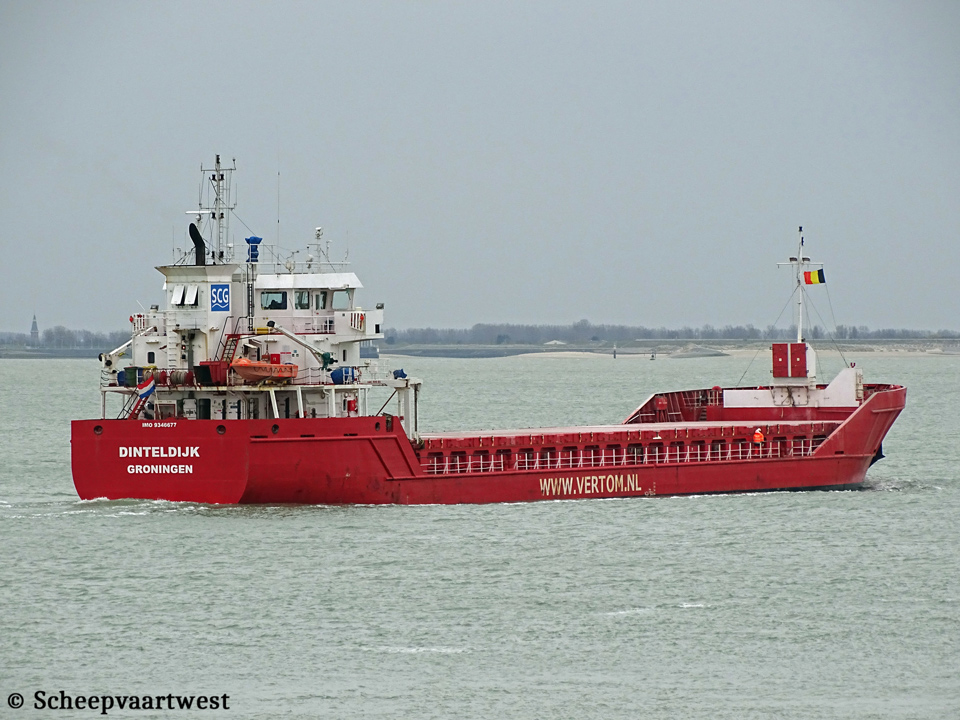

Dinteldijk IMO 9346677 02
Westerschelde 20/03/20













Name

DINTELDIJK

Type

Multi-purpose dry cargo ship - Gearless box singledecker

IMO-number

9346677

Call sign

PHMJ

Flag

The Netherlands

Port of registry

Groningen

GT

2.984 t

DWT

Summer: 4.891 t

DWCC

Summer: 4.600 t

Winter: 4.500 t

NT

1.598 t

Number of 20ft containers

38 on deck

Length

89,95 m overall

84,94 m between perpendiculars

Breadth

14,40 m extreme

Draught

Summer: 6,22 m

Winter: 6,09 m

Air draft

22,50 m keel to mast end

19,00 m keel to mast down

Depth

7,85 m

Speed

11,5 knots

Built

2007

Keel laid

27/03/2006

Launch date

25/12/2006

Date of completion

20/12/2007

Builder

Chowgule & Company Pvt. Ltd. Shipbuilding Division Loutulim

India

Yard number

C0174

Hull material

Steel

Movable bulkheads

2x In 8 positions

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm

manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany

Propellers

1x Controllable pitch propeller

Generators

1x Sisu 645 DSBIG - 4 stroke 6 cylinder 111 x 145 mm diesel engine 200 kW connected with generator

Emergency generator

1x Sisu 645 DSBIG - 4 stroke 6 cylinder 111 x 145 mm diesel engine 200 kW connected with generator

Bow thruster

1x 250 kW

Number of holds

1

62,30 x11,70 x 8,12 m height

Full box: Over 50,28 m

Cargo hold capacity

Grain: 5.818 m³ / 205.471 ft³

Number of hatches

1

62,30 x 11,70 m

Hatch type

10 x Ponton hatch covers

Max permitted loads

Tanktop: 15,0 t/m²

Hatch covers: 1,6 t/m²

Anchor equipment

Length: 440,00 m

Diameter: 36 mm

Lifting equipment

Gantry crane for pontoons

Crew

6

Manager

SCG Management B.V.

Groningen

The Netherlands

Previous managers

12/2007 - 07/2017 Navigia Shipping B.V., Groningen - The Netherlands

Operator

Vertom Group

Oever 7

3161 GR, Rhoon

The Netherlands

Registered owner

Dinteldijk 2.0 BV

Groningen

The Netherlands

Previous names & owners

12/2007 - 08/2012 Dinteldijk - C.V. Scheepvaartonderneming Dinteldijk, Groningen - The Netherlands

08/2012 - 07/ 2017 Dinteldijk - Dinteldijk II B.V., Groningen - The Netherlands

Latest data adjustment

10 April 2021
