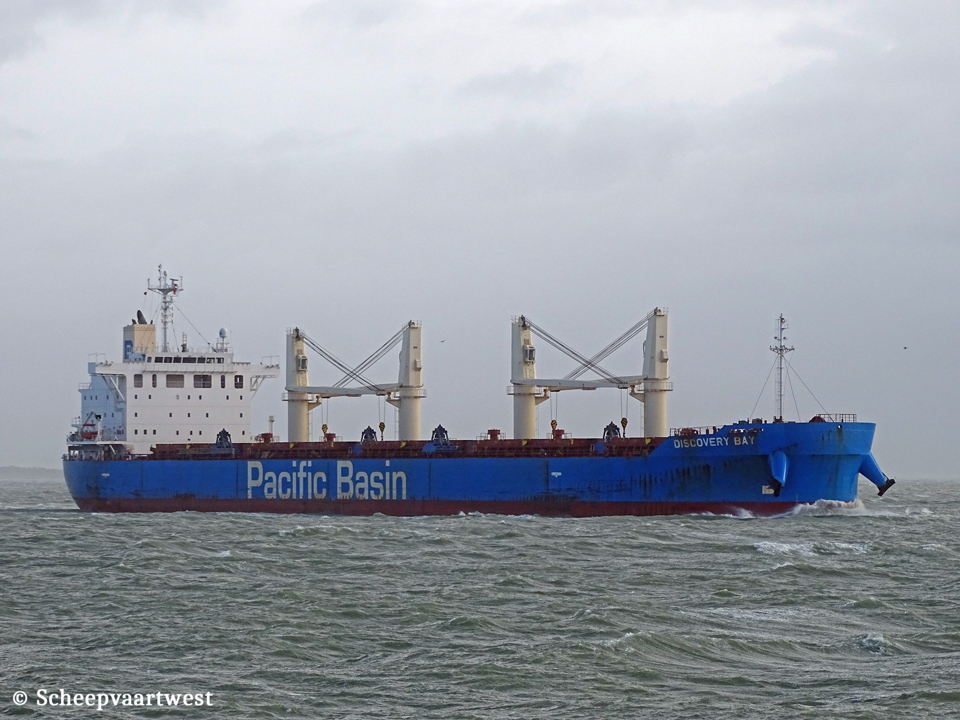

Discovery Bay - IMO 9737125

Name

DISCOVERY BAY

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9737125

Call sign

3E3425

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

2016 - 2022 Republic of Singapore, Singapore City - Call sign: 9V2724

GRT

32.746 t

DWT

58.112 t

NRT

19.099 t

Length

189,93 m overall

185,50 m between perpendiculars

Breadth

32,26 m moulded

Draught

Summer: 12,95 m

Moulded L x B x D

185,50 x 32,26 x 18,40 m

Registered L x B x D

185,72 x 32,26 x 18,40 m

Freeboard

5.498 mm

Depth

18,40 m

Speed

Service: 14,2 knots

Max: 15,8 knots

Built

2016

Keel laid

30/07/2015

Launch date

29/01/2016

Date of completion

27/04/2016

Builder

Shin Kurushima Dockyard Co., Ltd.

Japan

Yard number

5867

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x MAN-B&W 6S50ME-B9 - 2 stroke singme acting 6 cylinder 500 x 2.214 mm combustion engine 8.100 kW / 11.013 hp at 108,0 rpm

Manufacturer : Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 500 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,69 MPa

Evaporation: 2,16 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Diesel generatorsets total 1.995 kVA

Number of holds

5

Cargo hold capacity

Bale: 70.18,6 m³

Grain: 73.142,3 m³

Number of hatches

5

Tank capacities

Fuel oil: 2.266,44 m³

Fresh water: 258,04 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Commercial manager

Pacific Basin Shipping Ltd.

31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

ISM manager

E&O Ship Management Pte Ltd.

03-05, Boon Siew Building, 75, Bukit Timah Road

Singapore 229833

Republic of Singapore

Registered owner

Crane BC Shipping Pte Ltd.

Care of Pacific Basin Shipping Ltd ,

31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

Latest data adjustment

09 March 2022
