Calobra 01

Antwerpen 09 April 2017

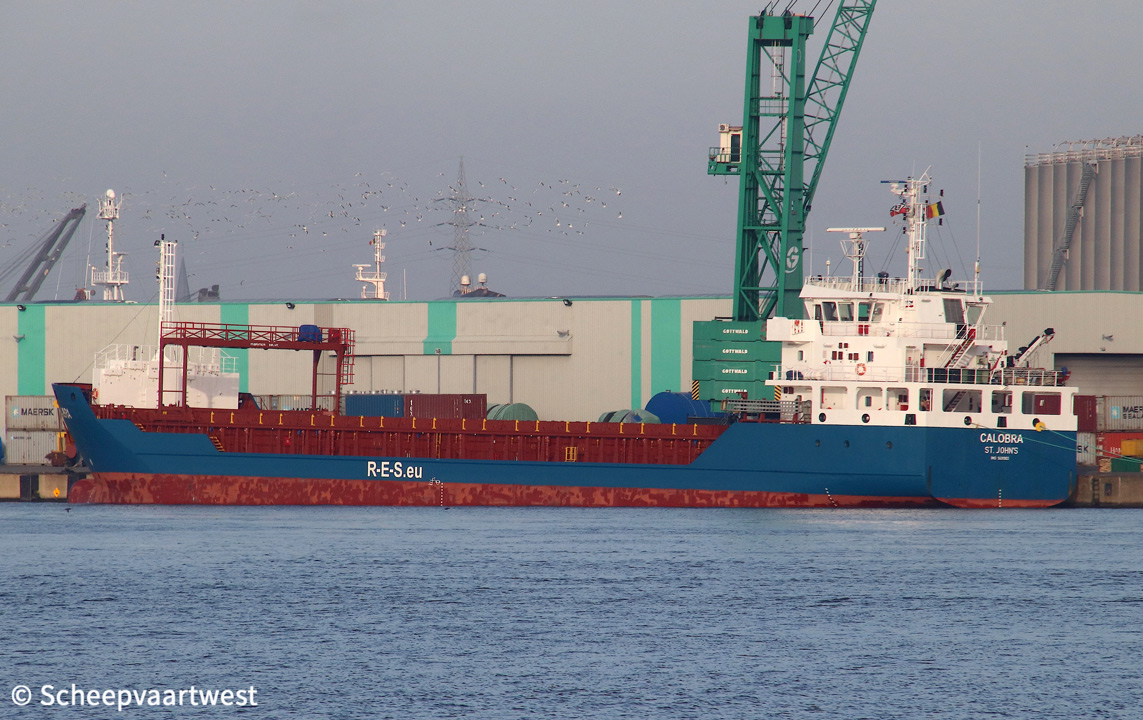

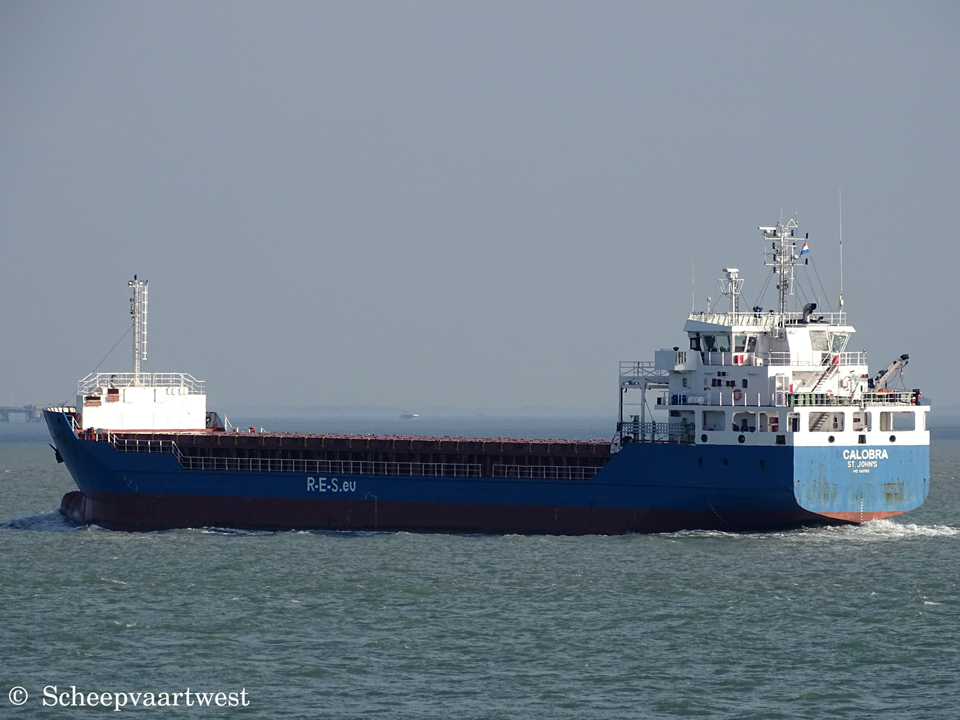

Calobra 02   Calobra 03   Calobra 04
Westerschelde 14/10/17 Antwerpen 31/12/19 Antwerpen 31/12/19



Name

CALOBRA

Previous names

2009 Launch as: Theda

2009 - 2016 Blue Carmel

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9491903

Call sign

V2ER5

Flag

Antigua & Barbuda

Port of registry

St. John's

Previous flags

2009 - 2011 Gibraltar - Call sign: ZDLM5

GT

3.845 t

DWT

Summer: 5.203,48 t

DWCC

Summer: 5.000 t

Winter: 4.800 t

NT

1.590 t

Length

89,97 m overall

84,95 m between perpendiculars

Breadth

15,62 m extreme

15,40 m moulded

Draught

6,13 m

Air draft

26,34 m in ballast

Depth

7,61 m

Speed

11,2 knots

Built

2009

Keel laid

20/08/2008

Launch date

24/07/2009

Date of completion

02/12/2009

Builder

Israel Shipyards Ltd.

Haifa

Israel

Yard number

2025

Hull material

Steel

Hull type

Single hull

Movable bulkheads

2x Movable units various positions - Can be placed as tweendecks

Main engine

1x MAN-B&W 6L27/38 - 6 cylinder combustion engine 2.040 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired

Shaft generator

1x Leroy Some 400 kVA

Generators

2x MAN D2866 LXE30 diesel generatorsets each 218 kW

Emergency generator

1x MAN D0824 LE201 diesel generatorset

Bow thruster

1x Jastram 250 kW

Number of holds

1

53,50 x 12,59 x 8,44 m

Hold capacity

200.000 ft³

Hatch cover type

Pontoons

Max. permitted loads

Tanktop: 15,0 t/m²

Deck: 1,50 t/m²

Tank capacities

Ballast: 2.146 m³

Anchor equipment

Length: 467,50 m

Diameter: 38 mm

Operator

R.E.S. Chartering GmbH -(Reederei Erwin Strahlmann GmbH & Co. KG)

Fuhlentwiete 10

20355 Hamburg

Germany

Owner

Lappan Shipping & Trading GmbH & Co. KG

c/o Reederei Erwin Strahlmann, Schleusenstrasse 10

25541 Brunsbuettel

Germany

Renamed

06/2021 Marian R

G.D. Luxembourg - Call sign: LXMO

Reg. Owner: Verto Maian R GmbH & Co. KG

Manager: Vertom Bereederungs GMGB & Co. KG

Latest data adjustment

17 July 2021
