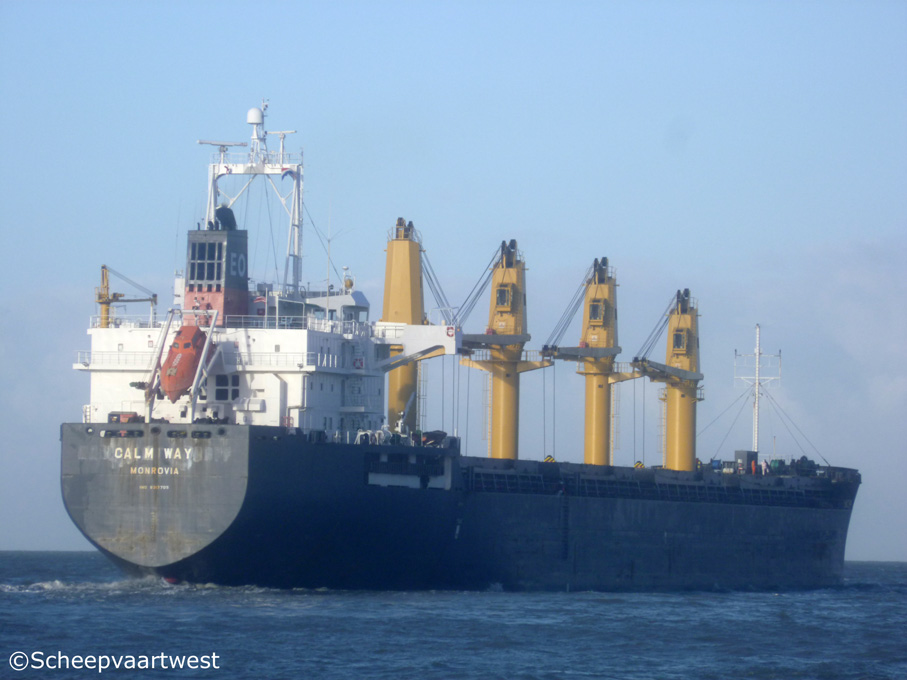

Westerschelde 22 February 2014 |
|
Name |
CALM WAY |
|
Previous names |
Maria Oldendorff |
|
Type |
General cargo carrier - Strengthened for the carriage of heavy cargoes |
|
IMO-number |
9317705 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
22.698 t registered Suez: 23.077,13 t |
|
DWT |
Summer: 37.534 t |
|
NT |
12.674 t registered Panama: 18.913,82 t Suez: 20.858,67 t |
|
Length |
177,84 m overall 169,80 m between perpendiculars |
|
Breadth |
28,60 m moulded |
|
Draught |
10,87 m |
|
Moulded L x B x D |
169,80 x 28,60 x 15,00 m |
|
Registered L x B x D |
170,58 x 28,60 x 15,00 m |
|
Freeboard |
4.188 mm |
|
Depth |
15,00 m moulded |
|
Built |
2006 |
|
Keel laid |
10.12.2004 |
|
Launch date |
01.04.2006 |
|
Delivery date |
31.05.2006 |
|
Builder |
Saiki Heavy Industries Co. Ltd. |
|
Yard number |
1155 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Bulkheads |
Water tight: 67 Oil tight: 17 Non tight: 4 |
|
Main engine |
1x Akasaka-Mistubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine 7.080 kW at 133,0 rpm Manufacturer: Akasaka Diesel Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Vertical Composite Boiler - 6,9 bar Evaporation: 2,13 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
2x Main diesel generatorsets each 400 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 45.706,85 m³ grain: 46.030,12 m³ |
|
Number of tanks |
Ballast: 14 Lubricating Oil: 11 Fuel Oil: 6 Fresh Water: 6 Diesel Oil: 6 Sludge: 4 Chain: 2 Waste Water: 2 Sea Water: 1 |
|
Tank capacities |
Diesel Oil: 316,70 m³ / 285,03 t Freshwater: 232,81 m³ Fuel Oil: 1.418,23 m² / 1.404,04 t Lube Oil: 93,70 m³ / 84,33 t Tank Ballast: 14.299,32 m³ / 14.656,80 t |
|
Lifting equipment |
1x Provision crane - SWL 1,5 t Manufacture: Mansei Industry Co., Ltd. |
|
Cargo gear |
4x Cranes - SWL 36,0 t each Manufacture: Mitsubishi Heavy Ind., Ltd., Shimonoseki S.Y. & Machy. Works |
|
Manager |
Meiho Kaiun |
|
Renamed |
03.2014 Calm Bay - Isle of Man, Douglas - UK - Call sign: 2HFU7 |
|
Latest data adjustment |
11 January 2016 |
